| Prod Model: |
WF-JF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Shandong(Mainland) |
| Standard Or Nonstandard: |
Nonstandard |
| Castig Type: |
Silica Sol Casting, Precision Casting |
| Qualiy Control: |
Professional QC Stuff, Spectrograph |
| Unique: |
China Golden Supplier |
| Quality: |
Strong Enginnering Team Make High Q |
| Painting: |
According to Drawing |
| Casting Service: |
Your Logo, Character, Trade Name, Number |
| Weight Range: |
0.5-300 Kg |
| Size And Design: |
as Per Customers Requirement or Sample |
| Type: |
Clay Dry Sand |
Product Description
OEM Sand Iron Carbon Steel Metal Casting for Marine Machinery
1. Strict QC & timely delivery
2. Standard: BS, DIN, ASTM
3. Good at custom
4. OEM

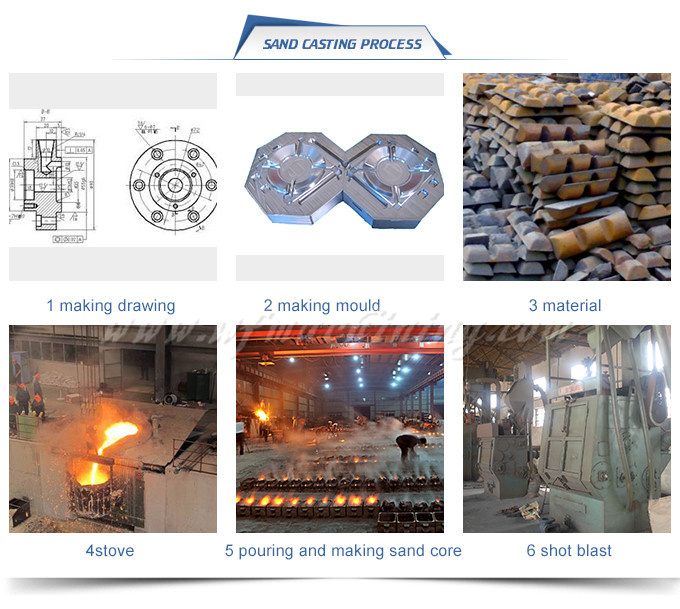

5. Technological process: Sand casting+CNC Machining.
6. Inspection: Mechanical properties, leaking free test conducted by in-house or third party
7. Use: Submersible pump body.
OEM Customized Sand Iron Casting for Cast Iron Valve Housing
1. Ductile Iron Castings:
Molding process: Resin sand/Green Sand
Material: EN-GJS-400-15/EN-GJS-500-7/EN-GJS-600-3/EN-GJS-700-2
Molding: Hand molding/Molding machine Z145/146/148/Molding line.
Possible Heat Treatment: Annealing
Industry involved: Municipal Construction / Fluid
/Automotive
Part unit weight range: 0.5kg-2000kgs
Max/Min wall thickness requirements: 4mm-250mm
Manufacturer Certification: ISO9001(2000)/ TS16949
OEM Customized Sand Iron Casting for Cast Iron Valve Housing
2. Grey iron castings:
1) molding process: Green sand/Resin sand
2) Material: EN-GJL-150/DIN 1691 GG-15, EN-GJL-200/DIN 1691-GG20, EN-GJL-250/DIN1691-GG25
, EN-GJL-300/DIN1691-GG30
3) Molding: Hand molding/ Molding machine Z145/146/148/Molding line.
4) Industry involved: Municipal industry/Construction Fluid industry/Automotive industry
5) Part unit weight range: 0.5kg-2000kgs
6) Max/Min wall thickness requirements: 4mm
7) Manufacturer Certification: ISO9001(2000)/ TS16949
OEM Customized Sand Iron Casting for Cast Iron Valve Housing
Production capacity:
1. Casting classification: Sand casting; Precision casting; Vacuum process casting etc.
2. Gray iron, ductile iron, stainless steel, carbon steel, alloy steel, etc.
3. Adoption standard: BS, DIN, ASTM GB etc.
4. Weight range: 0.5~5000kg.
5. Producing capacity: 2, 000 tons per month.
6. Main application: Metallurgy; Machinery; Plastics; Rubber; Pharmaceutical;
Textiles; Mining; Paper-making; Packaging.
7. Main equipments: Furnaces; Heat treatment furnaces; Direct-reading spectrometer; Shot -blasting equipments, etc.
8. Surface treatment: Polishing, plating, shot blasting, heat treatment, etc
9. Inspection and test: Foundry in home, third part inspection, Material report, UT, MT, RT, and PT, etc...
10. Packing and shipping: Stand export packing; 20day make modul & sample; Delivery time against your quantity.
11. Casting service: Your logo, character, trade name, number etc can be casted on the surface clearly.
OEM Customized Sand Iron Casting for Cast Iron Valve Housing
1.ISO9001-2008.
2.Has advanced euipment and over 15 years experience.
3.price: competetive price , Precision made.Experience & Reasonable QC that you can reply on.
4. Process: Precision made.Experience & Reasonable QC that you can reply on Each part would be given 100% test and tryout before shipment.
5. Adequate supply capacity. Punctual delivery time.Forging: We can provide forged ring, open-die forging, forged shaft, forged bush, forged shape, drop forging, precision forging, hot-pressed part, upset forging, hot-upset part, forging casting, forged disc, perforated disc.
OUR MACHINING PROCESS :
Occupies an area more than 6,000 square meters
More than 40pcs big CNC lathes Ø500 - Ø1200
Machining center 1400 x 825 x 1000mm 4 axis
Can provide services: turning; milling; grinding; drilling; inserting; broaching; boring; polishing
Surface preparation: passivation; polishing; plating; coating; painting; zinc phosphate; dacrotized / dacromet technology
1.ISO9001-2008.
2.Has advanced euipment and over 15 years experience.
3.price: competetive price , Precision made.Experience & Reasonable QC that you can reply on.
4. Process: Precision made.Experience & Reasonable QC that you can reply on Each part would be given 100% test and tryout before shipment.
5. Adequate supply capacity. Punctual delivery time.Forging: We can provide forged ring, open-die forging, forged shaft, forged bush, forged shape, drop forging, precision forging, hot-pressed part, upset forging, hot-upset part, forging casting, forged disc, perforated disc.
OEM Customized Metal Iron Casting Parts with Drawings or Samples
OEM Customized Metal Iron Casting Parts with Drawings or Samples
OUR MACHINING PROCESS :
Occupies an area more than 6,000 square meters
More than 40pcs big CNC lathes Ø500 - Ø1200
Machining center 1400 x 825 x 1000mm 4 axis
Can provide services: turning; milling; grinding; drilling; inserting; broaching; boring; polishing
Surface preparation: passivation; polishing; plating; coating; painting; zinc phosphate; dacrotized / dacromet technology
Surface preparation: passivation; polishing; plating; coating; painting; zinc phosphate; dacrotized / dacromet
technology
Casting parts,sand casting parts,precision casting parts,stainless steel casting parts,steelcasting parts,steel casting ,stainless steel casting,carbon steel casting,
casting,metal casting
| Material | 1.Sand casting&Gravity casting&Low pressure die casting:
A356/A319/A413/ZL101/ZL102/ZL104/ZL107/LM6//LM/20/LM25/EN
AC-42100/EN AC-42200/EN AC-43000/ EN AC-43200/EN AC-43300/EN
AC-43400/EN AC-44200/EN AC-44300/EN AC-46000/EN AC-46200
2.High pressure die casting:
A380/A390/A360/ADC10/ADC12/ENAC-43400/ENAC-44300/ENAC-44400/
ENAC-46000/ENAC-46100/ENAC-46200/ ENAC-46500/ENAC-47100
3.CNC machining casting: 6061-T6/6063-T6 |
| Service | Sand casting, Gravity casting, high pressure die casting,low pressure die casting and CNC Machining casting. |
| Equipment of Casting | 1. High pressure die casting machining:125T/180T/250T/280T/500T/800T/1250T
2. Gravity casting machine: 5 production lines
3. Low pressure die casting machining: 1 production line
4. Sand casting machine: 6 production lines
5. Degassing equipment and opportunities to refine the material
6. Machining: 5Sets CNC Machines;3 sets Milling machines; 3 setsTurning machines; 10 sets drill and tap machines |

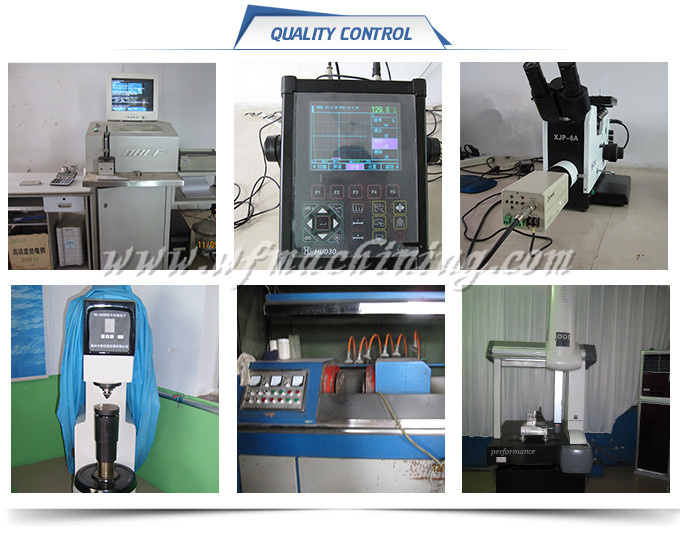

| Testing facility | spectrometer, tensile test machine, hardness test machine,CMM dimension report |
| Certificate | ISO9001:2008/Rosh/SGS/BV |
| Standard | ASTM, DIN,JIS, EN, ISO, GB standards |
| Software | Pro/E,UG, Solidworks, Auto CAD, PDF |
| Precision machining | CNC turning, milling, drilling, grinding, cutting, reaming and threading |
| Finished | Polishing, sand blasting, heat treatment, painting, powder coating, anodizing,electroplating, Chrome plating, mirror polishing. |

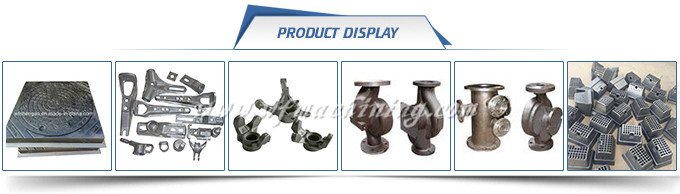

| Product | All kinds of aluminum casting: include automotive parts, railroad parts,medical parts, marine parts, lighting parts, pump body, valve parts,architectural parts and furniture parts so on |
| feature | - TS 16949 certified
- 3 sets automatic moulding lines, flask size from 450x400 till 850x700
- 15 units of induction furnaces ranges from 1 ton/hour till 5 ton/hour
- 15 units CNC machining cernters for further machining process
- Spectrum + metalloscope |
| annual casting capacity | 40,000tons |
| unit weight of casting | from 0.1kg/pc till 120kg/pc |
| material spec. | various grade nodular cast iron and grey cast iron |
| we are currently casting | - Grey cast iron types: EN-GJL-150, GJL-200, GJL-250, GJL-300, GJL-350, GG15, GG20, GG23, GG25, GG30
- Nodular/Ductile cast iron types: EN-GJS-400-18-LT, GJS-500-7, GJS-600-3, GJS-700-2, GJS-800-2, GGG40, GGG40.3, GGG50, GGG60, GGG70, GGG70, GGG80, GGG90
-Austempered ductile iron: ADI 800-10, ADI 900-8, ADI1050-6 , ADI1200-3, ADI 1400-1 |
OEM Customized Sand Iron Casting for Cast Iron Valve Housing
Q: Why choose Shengao product?
A: We shengao have our own plant-- Weifang Shengao machinery Co.,Ltd, therefore, we can surely promise the quality of every product and provide you comparable price.
Q: Do you provide OEM Service?
A: Yes, we provide OEM Service.
Q: Do you provide customized casting products?
A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.
Q: What is your payment term?
A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.
If there's anything I can help, please feel free to contact with me.
WeiFang Shengao Machinery Co., Ltd is located in WeiFang the famous city in China and the world center of kites. It is 140 kilometers far away from Qingdao port, the transportation is very convenient. Our company use the location advantages of ShanDong province to integrate resources so that we can processing according to the drawings of customers.
We mainly undertake the forging parts, stamping parts, casting parts, machining parts and other machinery spare parts. The main products we could do are gears and gear boxes, manhole covers, bucket teeth, flywheels, stove fireplace, cookwares, pump and valve spares, engine spares...Our products have been exported to the United States, Denmark, Italy, Russia, Australia etc for more than 15 years.
The material we can adopt is included various kinds of cast steel and cast iron, heat-resistant steel, carbon steel, alloy steel, alloys and other customized materials. We have strong processing capacity, we own MAZAK, HSS, YOUJI and other brands machining centers from the abroad, we also have lathes, NC lathes, NC milling, boring, grinding, drilling, broaching and wire electrode cutting machines, which are used to ensure we can fulfill different machining requirements from our customers.
We can produce according to the drawings of customers. Our Import and Export Department have many years experiences of foreign trading and our products are mainly exported to the United States, Denmark, Italy, Russia, Australia, Iran, Pakistan, South Africa etc.
Over the years, company adhere to the guideline for management of "Quality first, Reputation first, Delivery just-in-time, Price best". We will try our best to improve the technical level and perfect the enterprise management. Our company will depend on superior quality of products and sincere service to cooperate with domestic and overseas, new and old customers and establish eternal friendship to create a bright future. Sincerely welcome your drawings and samples or any other kinds of designs, our team will try the best to serve you and satisfy all the requirements you have.
Why choose us to produce your parts?
1) Experienced staffs will reply you in 24 hours.
2) Welcome OEM, ODM and Smaller quantity.
3) Exclusive and unique solution can be provided to you.
4) Special discount and protection of sales area.
5) Random quality inspection during production.
6) Delivery on time.
7) At a competitive price from our own factory.
