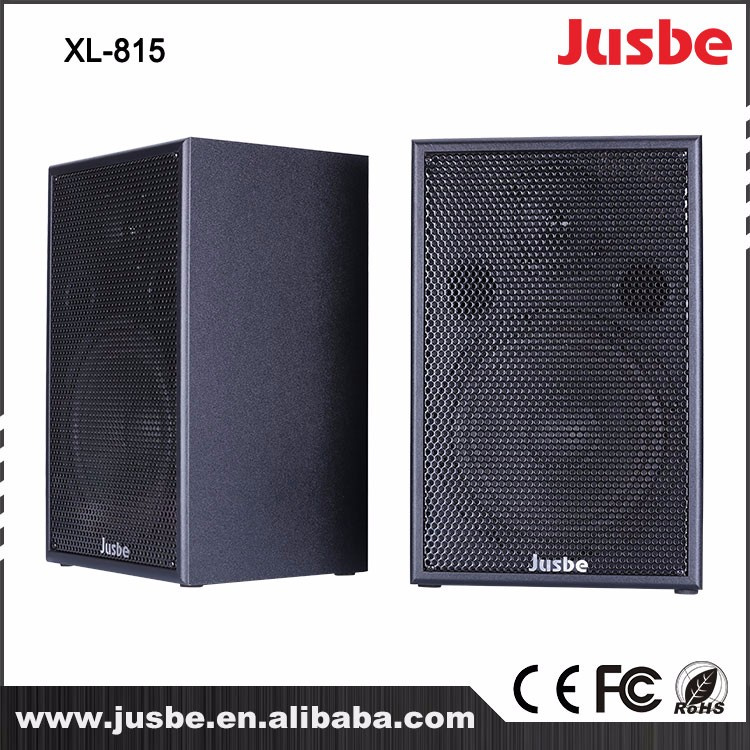

| Prod Model: |
XL-815 |
| Rated Power: |
120W/8ohm |
| Sensitivity: |
75dB |
| Max Spl: |
78dB |
| Rated Input Level: |
Microphone 15 Mv |
| Product Size: |
220*200*350 |
| N.G: |
8.5 Kg |
| Frequency Response: |
55Hz-18kHz |
| Noise: |
<95dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
2.0 Channel |
| Speaker Material: |
Wood |
| Application: |
Home |
| Certification: |
CCC |
| THD: |
<0.005% |
| Monitor: |
No Scrooen |
Product Description
Features:★ two frequency design, dynamic performance is good;
★ frequency divider through a professional speaker test system adjustment, testing;
★ sound quality and natural, accurate expression of human voice;
★ Suitable for multimedia classrooms and classrooms.
The main technical parameters:
Rated power: 60W;
Maximum power: 120W;
Rated impedance: 8Ω;
Frequency response: 57Hz-19.6kHz;

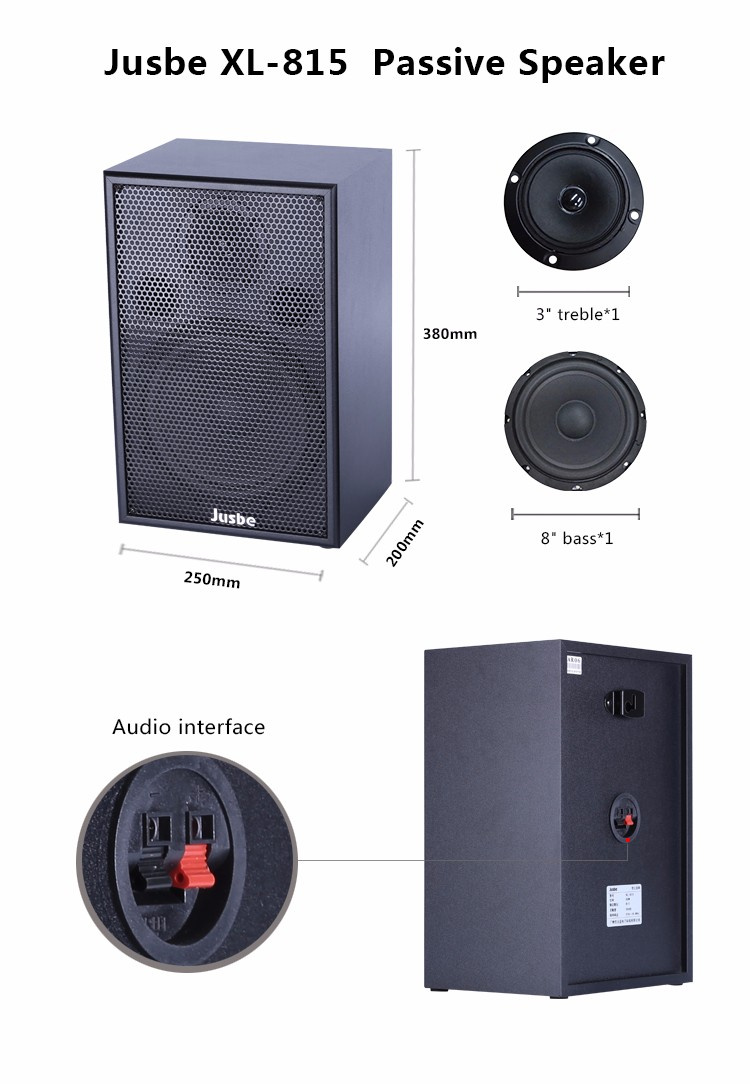

Drive: an 8-inch long stroke bass driver, a 3-inch front cone treble;
Sensitivity: 90dB / 1W / 1M;
Maximum sound pressure level: 105dB;
Frequency divider: 1.8KHz;
Box and exterior: high density MDF (black) box, steel mesh;
Installation: Standard wall mount;
Packaging & Shipping★Product Size: 248 × 200 × 380 (unit: mm);
★Net Weight: 13kg / pair.
★Gross Weight: 14 KG
Payment termSmaple:T/T 100% deposit before delivery.
Mass production: T/T 30%deposit in advance
Delivery timeSample:3 days
Mass production:5-7 day,depand on quantity
| Item No. | XL-1080 | XL-820K | XL-815 | XL-206 |
| Raterd Power | 120W | 80W | 60W | 65W |
| Max Power | 240W | 160W | 120W | 130W |
| Impedance | 8Ω | 8Ω | 8Ω | 4Ω |
| Frequency Response | 50Hz-20KHz | 50Hz-18.7KHz | 57Hz-19.6KHz | 75Hz-20KHz |
| Driver unit | one 10-inch long-stroke woofer driver & two 3-inch tweeter drive | one 8-inch long-stroke woofer driver & two 3-inch tweeter drive | one 8-inch long-stroke woofer driver & one 3-inch tweeter drive | one 6.5-inch long-stroke woofer driver & one 3-inch tweeter drive |
| Max SPL | 120dB | 105dB | 105dB | 120dB |
| Sensitivity(1W/1m) | 93dB/W(1m) | 90dB/W(1m) | 90dB/W(1m) | 87dB/W(1m) |
| Frequency Divider | 1.8KHz |
| Body style | upside-down | hanging upside-down | standard configurate wall mount | standard configurate wall mount |
| Body material | High Density Fiberboard |
| Exterior | Steel mesh |
| Color | Black |
| Product Size(mm/pc) | 505*285*290 | 450*240*270 | 248*200*380 | 220*220*320 |
| Net Weight(pair) | 20KG | 15KG | 12KG | 7.5KG |
