| Prod Model: |
ZZLGJ-160105 |
| Size: |
Any Size Accepted Customized |
| Grade: |
Yg4,Yg6,Yl10.2yg6,Yg6,Yg12X |
| Surface: |
Polished or Unground |
| Delivery Time: |
15days |
| Applications : |
Cutting Tool |
| Tolerance: |
+/-0.05 |
| Product Name: |
Reversible Wood Working Knives |
| Quality: |
100% Virgin Materials. |
| Shiiping: |
DHL,FedEx,TNT,UPS,EMS |
| MOQ: |
100PCS |
Product Description

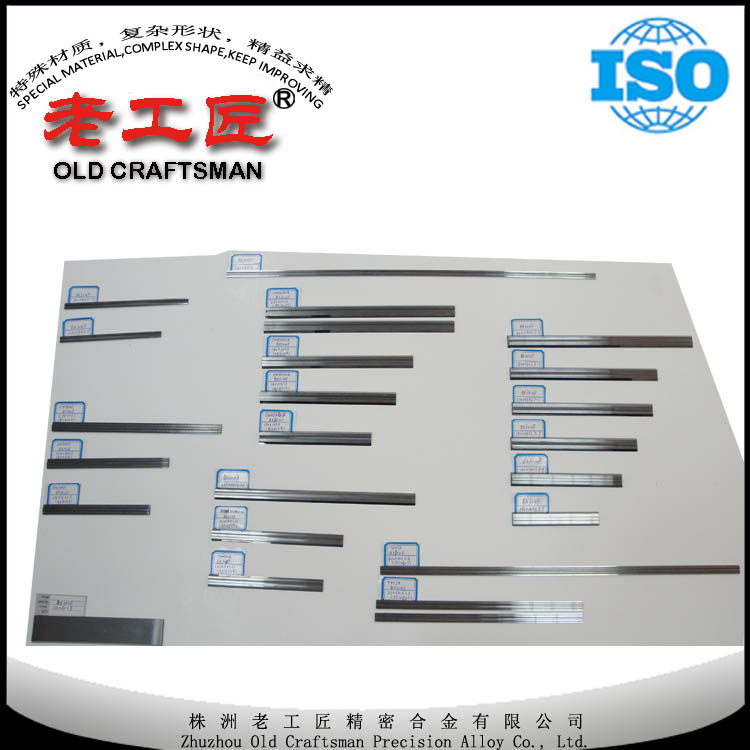

Reversible Wood Working Knives
1. 100% raw material to produce tungsten carbide products.
2. Hip sintered, high hardness, high wear resistance
3. Various sizes and full types available
4. Reasonable price,Fast delivery time
5. OEM Customized(small order accepted,professional technical support)
6.ISO 9001 Certification
More details of specific type, please inform us
Product information
Good value precision system for significant increase of knife-life time.
It consists of carbide blank, multiple moveable and regrindable - steel backing plate with precision positioning.
we can be used in all cutterheads with 60° back corrugation.
Long lifetime
Submicron-grades help you to achieve the longest lifetime in wood and plastic applications. TIGRA SuperPac
is available in 4 tungsten carbide grades to satisfy all your needs: mixed - board/MDF - wood.
High security
we can be used up to 12000 rpm if the cutterhead is designed for this speed. This is possible
due to enhanced security of our deep corrugation.
High precision
The positioning in the accurate corrugation results in highest precision.
Best surface quality
Accurate positioning and submicron grades result in the best surface of the material. Especially recommended:
TL15 with clearance angles like HSS and Stellite.
Profiling and regrinding
Multiple regrindings are possible and - due to the positioning system - only necessary on the carbide blank.
High cost-effective
Best carbide grades, low prices and multiple regrindings guarantee a high economic viability.
With over 10 working procedures from materials to products and national sampling inspection rate at each step, the quality will be strictly controlled.
The hardness and durability will be promised by special heat treat technology
Germany and USA imported quality supervising equipments, such as Rockwell hardness tester, Metallograph etc.
Products can be tracked by the product process card (Per as ISO9001:2008 requirement).
Elaborate packing forms make sure the goods won't be damaged during transportation and in stock.
The best logistic companies are selected to make sure the goods will be transported on time and safely.
Grade of raw material:
| Grade | Binder % | Hardness(HRA) | TRS(N/mm2) |
| YG4F | 4.0 | 93.0 | 1700 |
| YG6A | 6.0 | 92.5 | 1800 |
| YL10.2 | 10.0 | 91.8 | 2400 |
| YG6X | 6.0 | 91.5 | 1800 |
| YG6 | 6.0 | 90.5 | 1900 |
| YG8 | 8.0 | 89.5 | 2200 |
| YG12X | 12 | 88.5 | 2300 |

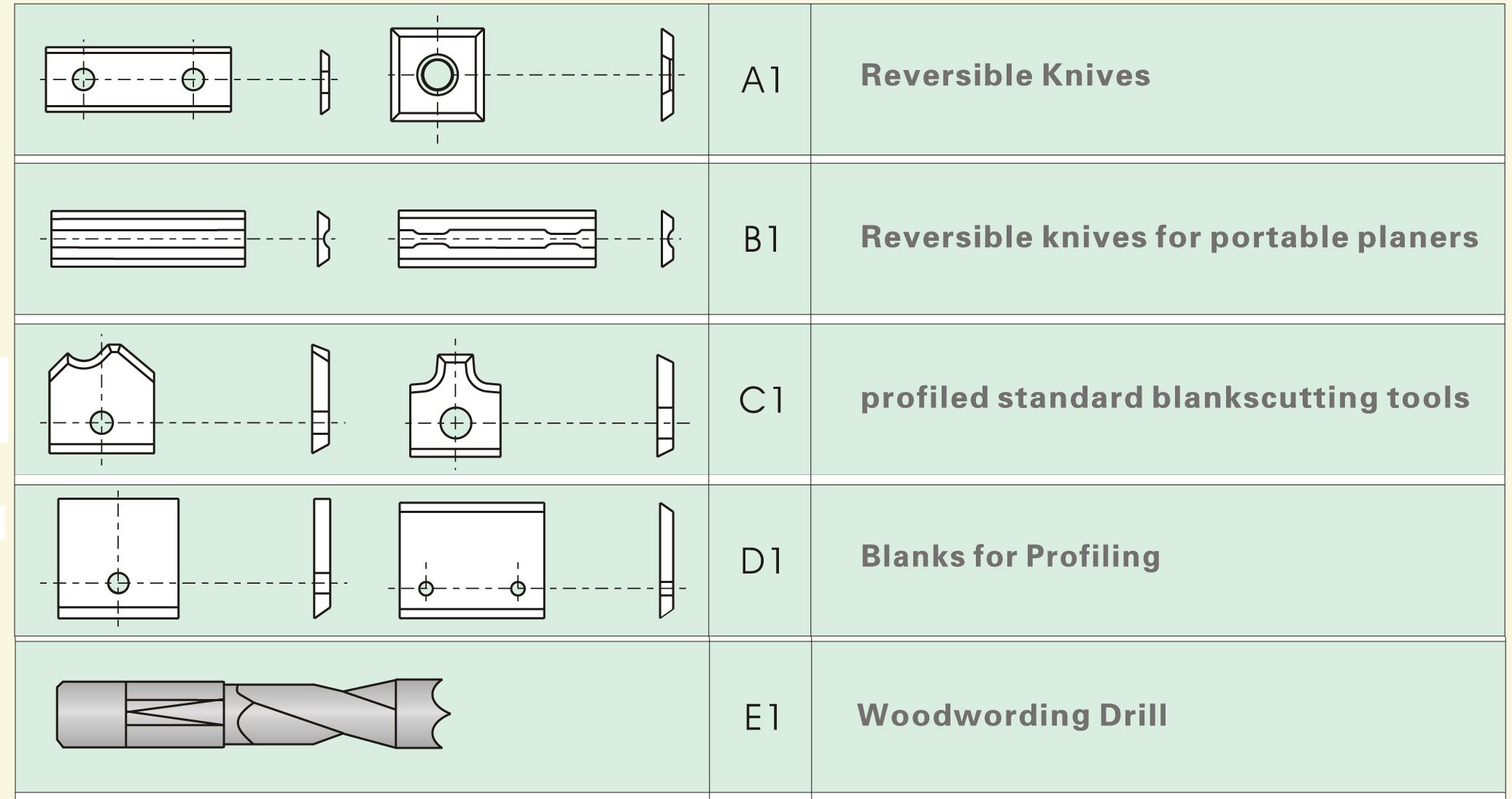

Description of woodworking tools
| Specification | Item No |
| L | W | T | α | d | BT20A | YG6 | BK10UF |
| 7.5 | 12 | 1.5 | 35 | 4.1 | 812000 | 812001 | 812005 |
| 8.6 | 12 | 1.5 | 35 | 4.1 | 912000 | 912001 | 912005 |
| 9 | 12 | 1.5 | 35 | 4.1 | 912010 | 912011 | 912015 |
| 9.6 | 12 | 1.5 | 35 | 4.1 | 1012000 | 1012001 | 1012005 |
| 10 | 12 | 1.5 | 35 | 4.1 | 1012010 | 1012011 | 1012015 |
| 10.5 | 12 | 1.5 | 35 | 4.1 | 1112000 | 1112001 | 1112005 |
| 11 | 12 | 1.5 | 35 | 4.1 | 1112010 | 1112011 | 1112015 |
| 11.6 | 12 | 1.5 | 35 | 4.1 | 1212000 | 1212001 | 1212005 |
| 13 | 12 | 1.5 | 35 | 4.1 | 1312000 | 1312001 | 1312005 |
| 13.6 | 12 | 1.5 | 35 | 4.1 | 1412000 | 1412001 | 1412005 |
| 14.6 | 12 | 1.5 | 35 | 4.1 | 1512000 | 1512001 | 1512005 |
| 15 | 12 | 1.5 | 35 | 4.1 | 1512010 | 1512011 | 1512015 |
| 15.7 | 12 | 1.5 | 35 | 4.1 | 1612000 | 1612001 | 1612005 |
| 16 | 12 | 1.5 | 35 | 4.1 | 1612010 | 1612011 | 1612015 |
| 17 | 12 | 1.5 | 35 | 4.1 | 1712000 | 1712001 | 1712005 |
| 18 | 12 | 1.5 | 35 | 4.1 | 1812000 | 1812001 | 1812005 |
| 19 | 12 | 1.5 | 35 | 4.1 | 1912000 | 1912001 | 1912005 |
| 20 | 12 | 1.5 | 35 | 4.1 | 2012000 | 2012001 | 2012005 |
| 24.7 | 12 | 1.5 | 35 | 4.1 | 2512000 | 2512001 | 2512005 |
| 25 | 12 | 1.5 | 35 | 4.1 | 2512010 | 2512011 | 2512015 |
Applications
Carbide reversible knives are used widely in Woodworking Processing Field.
Applications Recommended
| Grade | HDF/MDF | Chipboard | Hardwood | Softwood | Plywood |
| YG4F | ++ | ++ | - | - | - |
| YG6A | ++ | ++ | ++ | - | + |
| YL10.2 | + | ++ | ++ | + | + |
| YG6X | - | + | ++ | ++ | ++ |
| YG6 | - | - | ++ | ++ | + |
| YG8 | - | - | + | ++ | - |
| YG12X | - | + | ++ | ++ | - |
| | | | | | |
| ++ | Excellent |
| + | Good |
| - | Not too good |
Grade information

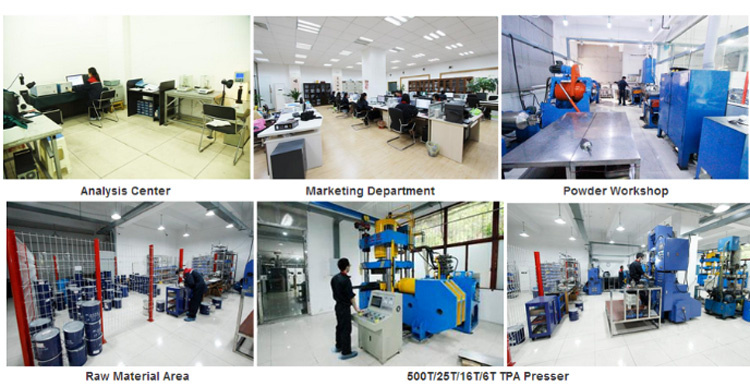

Company Information

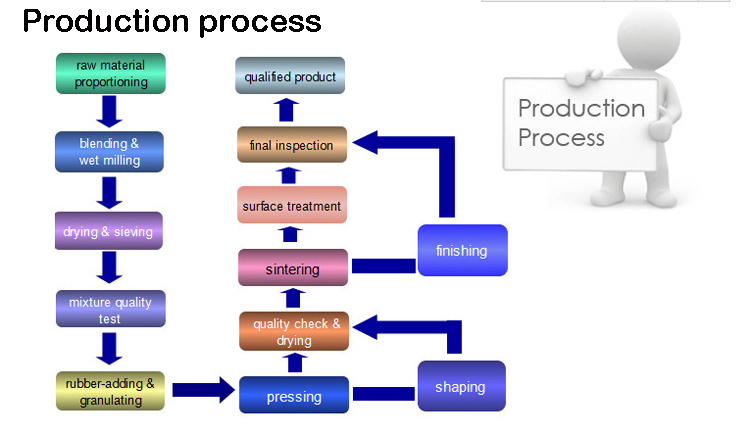

Production process
Applications
Carbide reversible knives are used widely in Woodworking Processing Field.

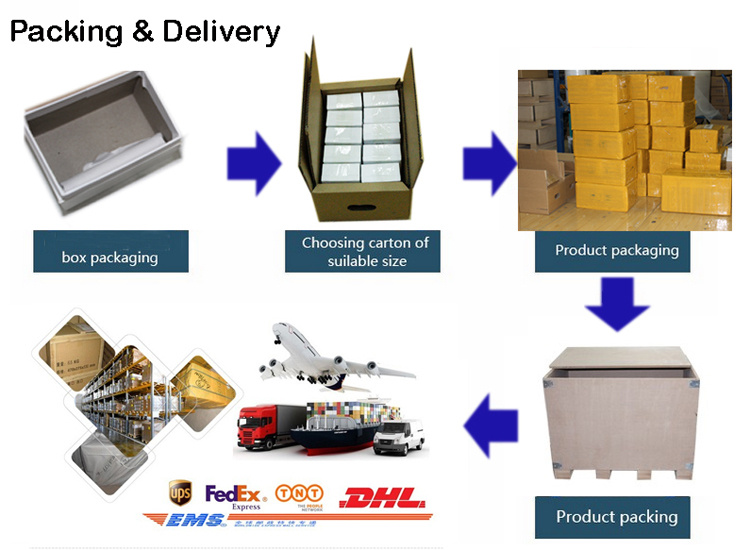

Packing and Delivery
Payment terms
RAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 25-35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<1000USD, 100% in advance. Payment>1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us!
Zhuzhou Old Craftsman Precision Alloy Co., Ltd, a professional tungsten carbide manufacturer combined with R&D, production, sales, technical services.
Adhering to the spirit of "Craftsman", through the sublimation of cemented carbide traditional crafts and the exploration of modern cutting-edge technology; The application of new materials, new technologies and new methods; Can produce many kinds of carbide products, such as universal carbide products, non-standard carbide products, mold material, wear-resisting parts, Magnetic carbide, carbide tools, vacuum welding carbide and steel, and other diversified products, widely used in machinery, equipment, building materials, oil and gas, mining, electrical, plastic, aerospace and other manufacturing industries.

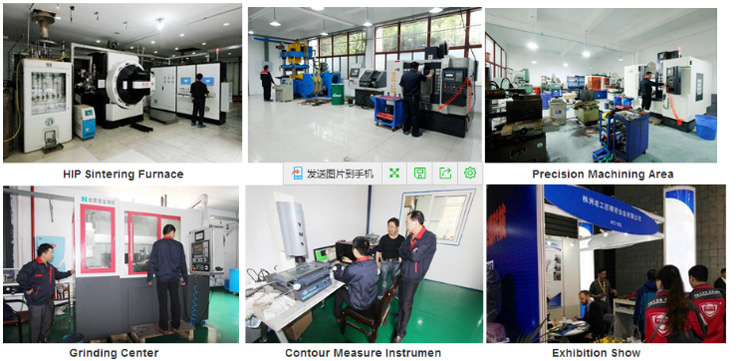

We have a variety of modern first-class alloy production equipment, such as powder-mixing line, mold forming, injection, CNC machining, HIP sintering, vacuum welding, CNC grinding, EDM and so on; Independently designing out dedicated CNC grinding center for tile cutters and rubber crusher. Complete inspection equipments support the comprehensive inspection on density, hardness, strength, metallographic phase.
Our products are produced based on ISO 9001 standard strictly from the beginning of the establishment; Every production process is controlled by ERP and MES system. With the insistent heart, craftsman skill, customer's satisfaction, we manufacture and supply the tungsten carbide products solution. At present, goods are exported to Europe and America, Southeast Asia, Africa, South America, the Middle East etc.
Quality is made when it goes out, and is not tested when it is sent out!
