| Prod Model: |
1/4" to 4" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
One Piece Hydraulic Hose Fitting |
| Size: |
1/4" to 3" |
| Usage: |
Hose Crimping |
| Raw Material: |
Ss, CS |
| MOQ: |
100 Pieces |
| Thread: |
NPT Jic Bsp BSPT ...... |
| Brand: |
OEM |
| Applications: |
Hydraulic Hose Crimping |
| Package: |
Box |
| Warranty: |
1 Year |
| Standard: |
BSW |
| Material: |
Medium Carbon Steel |
| Connection: |
Female |
Product Description
Hose Fittings
- Size: 1/2" ~ 2"
- Material: SS, Brass, Mild Steel, Gavalnized
- Thread standard: DIN2999/BS21/BS746/DIN259/NPT
- Temperature: Normal temperature
- Position: Water, oil
- Certification: CE, ISO9001
PACKING & DELIVERY
-Payment term: L/C, T/T
-Packing: 1. Standard exporting package---CARTON, PALLET
2. According to be packed as customer's special requirements.
-Delivery time: Within 35 days after order confirmed.
COMPETITIVE ADVATAGES
1. Experienced QC staffs check the quality by multiple tests on every production line.
2. We can product the fittings according to our customer's drawing and sample, and If their order qualities are big, we will not charge mould fee.
3. OEM/ODM is all welcome.
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | A | C | S2 |
| 26711-04-03 | 7/16"×20 | 5 | 03 | 14.5 | 9 | 15 |
| 26711-04-04 | 7/16"×20 | 6 | 04 | 15 | 9 | 15 |
| 26711-05-04 | 1/2"×20 | 6 | 04 | 15.5 | 9.5 | 17 |
| 26711-05-05 | 1/2"×20 | 8 | 05 | 15.5 | 9.5 | 17 |
| 26711-05-06 | 1/2"×20 | 10 | 06 | 15.5 | 9.5 | 17 |
| 26711-06-04 | 9/16"×18 | 6 | 04 | 15.5 | 10.5 | 19 |
| 26711-06-05 | 9/16"×18 | 8 | 05 | 15.5 | 10.5 | 19 |
| 26711-06-06 | 9/16"×18 | 10 | 06 | 15.5 | 10.5 | 19 |
| 26711-06-08 | 9/16"×18 | 12 | 08 | 16 | 10.5 | 19 |
| 26711-08-06 | 3/4"×16 | 10 | 06 | 17.5 | 11 | 24 |
| 26711-08-08 | 3/4"×16 | 12 | 08 | 18 | 11 | 24 |
| 26711-08-10 | 3/4"×16 | 16 | 10 | 19.5 | 11 | 24 |
| 26711-10-08 | 7/8"×14 | 12 | 08 | 18.5 | 13 | 27 |
| 26711-10-10 | 7/8"×14 | 16 | 10 | 20 | 13 | 27 |
| 26711-10-12 | 7/8"×14 | 20 | 12 | 20 | 13 | 27 |
| 26711-12-08T | 1.1/16"×12 | 12 | 08 | 19 | 15 | 32 |
| 26711-12-10 | 1.1/16"×12 | 16 | 10 | 21.5 | 15 | 32 |
| 26711-12-12 | 1.1/16"×12 | 20 | 12 | 21.5 | 15 | 32 |
| 26711-12-16 | 1.1/16"×12 | 25 | 16 | 23 | 15 | 32 |
| 26711-14-12 | 1.3/16"×12 | 20 | 12 | 21.5 | 15 | 36 |
| 26711-16-12T | 1.5/16"×12 | 20 | 12 | 18.5 | 16 | 41 |
| 26711-16-16 | 1.5/16"×12 | 25 | 16 | 23 | 16 | 41 |
| 26711-16-20 | 1.5/16"×12 | 32 | 20 | 24 | 16 | 41 |
| 26711-20-16T | 1.5/8"×12 | 25 | 16 | 23 | 17 | 50 |
| 26711-20-20W | 1.5/8"×12 | 32 | 20 | 26 | 17 | 50 |
| 26711-24-20W | 1.7/8"×12 | 32 | 20 | 26.5 | 20 | 55 |
| 26711-24-24W | 1.7/8"×12 | 40 | 24 | 26.5 | 20 | 55 |
| 26711-32-24T | 2.1/2"×12 | 40 | 24 | 27 | 23.5 | 75 |
| 26711-32-32T | 2.1/2"×12 | 50 | 32 | 27 | 23.5 | 75 |
| Note:1.For use with braided hoses. 2.If use with spiral hoses,hose fitting series number is 26712-xx-xx. |

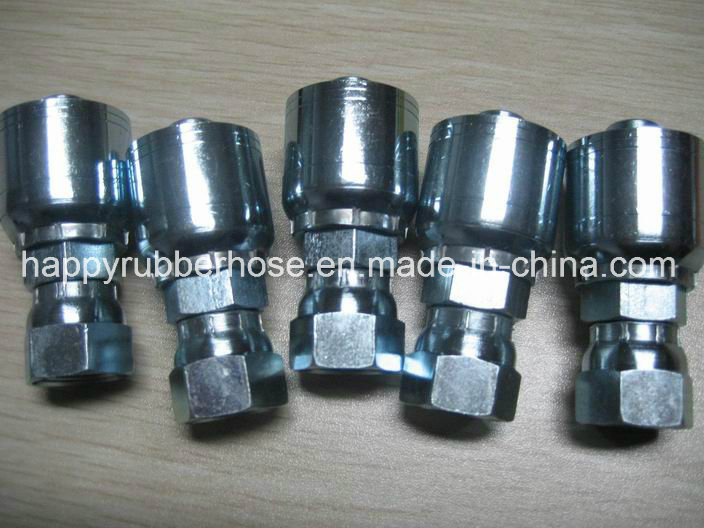

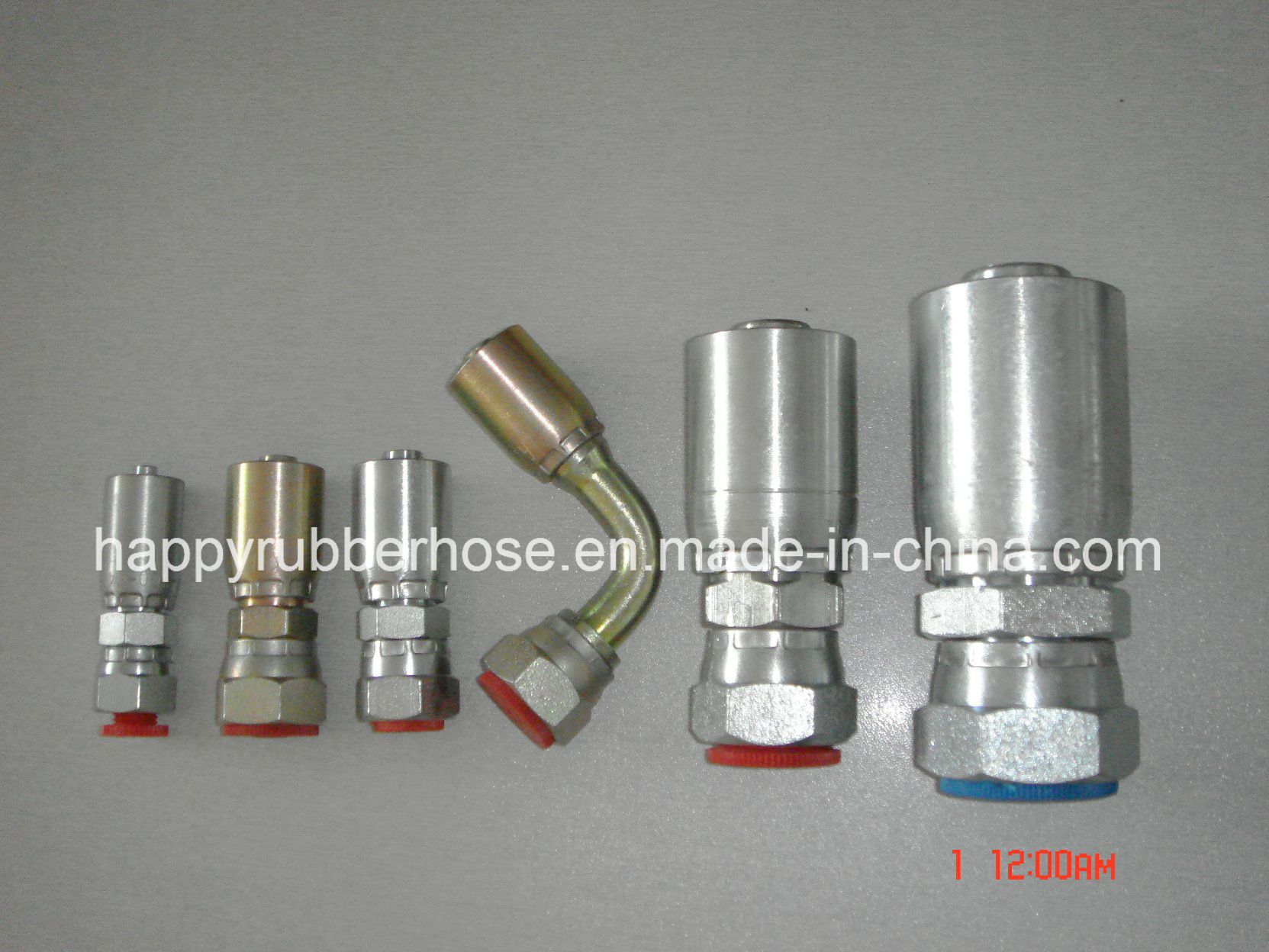

Pictures of one-piece hydraulic hose fitting
Happy (Tianjin) Technology and Development Co., Ltd. Is based on integrity of Research & Development, Manufacturing & Sales. Our main products include hydraulic hose, drilling hose, concrete hose, oil suction hose, water suction hose, fuel hose, oil delivery hose, water delivery hose, steam hose, sandblast hose, chemical hose, air hose, welding hose, flex metal hose and so on.
Our workshop covers about 128900 meters. We have 23 advanced production lines. Our yearly production of each kind of rubber hose are about 55, 000, 000 meters. Now we have more than 400 workers and 22 authoritative enginners.
Our company offers some famous companies' OEM production for the long term and our main markets are North America, South America, Germany, Russia, Middle East, Africa and so on. At the mean time, we have stable and long term cooperation with Chinese Petroleum, Railway Department, Chinese Mining Group and so on.
Our principle - Excellent Quality, Fast delivery time and Integrity Service.
