| Prod Model: |
ROS34~ROS120 |
| Name: |

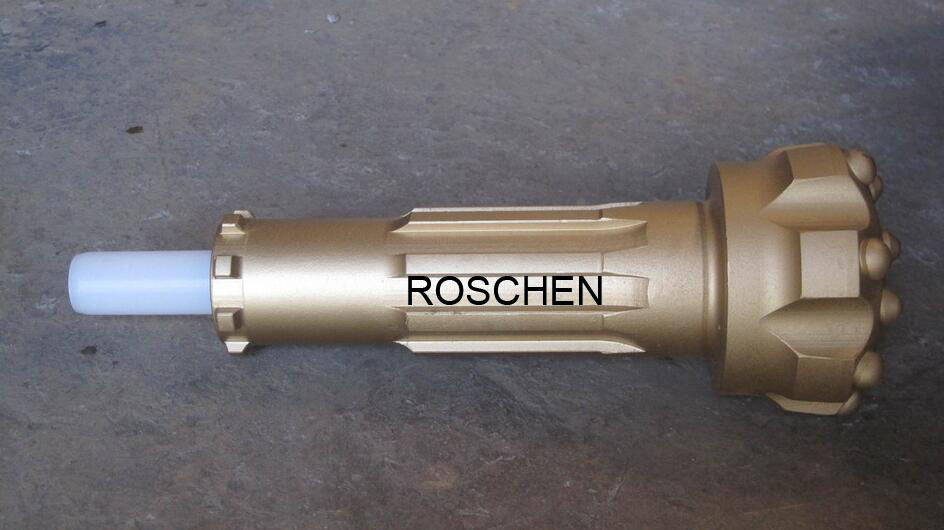

Down The Hole Hammer Bits |
| Drilling: |
Down The Hole Hammer Drilling |
| Hammer: |
Rev Drill Down Hole Hammer |
| Sale: |
Down Hole Hammer for Sale |
| Hammer Bits: |
Down The Hole Hammer Bits |
| China: |
China Down The Hole DTH Hammer Bits |
| Bits: |
DTH Hammer Bits |
| Drill Bits: |
Down The Hole Drill Bits |
| Drilling Bits: |
Down Hole Hammer Drilling Bits |
| DTH: |
Down The Hole Hammer Bits |
Product Description
We are a leading manufacturer of rock drilling tools, like DTH hammers and bits, DTH drill pipes, RC hammers and bits, tophammer button bits, coupling, cross bits, drill rods located in Germany, China(joint-venture).
We have rich experience in this field of DTH hammers and bits for 60 years.
Owing to high quality, professional serivce and competitive price, we have gotten good reputation from our customers from all over the world, such as US, Canada, France, Spain, Italy, South Africa, Iran, Malaysia, Australia, etc.
Product specifications:
| Hammer Size | Hammer Shank | Guide Dia | Reamed Dia |
| mm | inch | mm | inch |
| 3.5 | DHD3.5,QL30,Cop32,Cop34 | 80-110 | 3 1/8-4 5/16 | 130-165 | 5 1/8-6 1/2 |
| 4 | DHD340,Cop44,QL40,SD4,Mission40 | 82-115 | 3 1/4-4 1/2 | 165-178 | 3 1/2-7 |
| 5 | DHD350,Cop54,QL50,SD5,Mission50 | 75-138 | 2 15/16-5 3/8 | 152-216 | 6-8 1/2 |
| 6 | DHD360,Cop64,QL60,SD6,Mission60 | 108-296 | 4 1/4-11 5/8 | 191-381 | 7 1/2-15 |
| 8 | DHD380,Cop84,QL80,SD8,Mission80 | 140-296 | 5 1/2-11 5/8 | 200-381 | 7 7/8-15 |
| 10 | SD10,Numa100 | 305-311 | 12-12 1/4 | 445-482 | 17 1/2-19 |
| 12 | DHD1120,SD12,Numa120,Numa125 | 216-445 | 8 1/2-17 1/2 | 312-660 | 12 5/16-26 |
Other ROSCHEN hammer bit technical data:
| ROSCHEN DTH Bits Specifications |
| Hammer Size | Bits diameter | Shank | ROSCHEN CODE |
| Metric | Inch |
| 1" | 64mm-70mm | 2 1/2"-2 3/4" | BR1 | ROS 11 |
| 2" | 70mm-95mm | 2 3/4"-3 3/4" | MACH20/BR2 | ROS 22 |
| 3" | 90mm-102mm | 3 1/2"-4" | COP32/COP34/MACH303 | ROS 32 |
| M30/DHD3.5/BR3 | ROS 34 |
| 4" | 105mm-152mm | 4 1/8"-6" | COP44/DHD340/MACH44 | ROS 42 |
| SD4/M40/QL40 | ROS 44 |
| 5" | 133mm-165mm | 5 1/4"-6 1/2" | COP54/DHD350R/MACH50 | ROS 52 |
| SD5/M50/QL50/BR5 | ROS 54 |
| 6" | 152mm-254mm | 4 1/8"-10" | COP64/DHD360/SD6 | ROS 62 |
| M60/QL60/Bulroc BR6 | ROS 64 |
| 8" | 203mm-330mm | 8"-13" | COP84/DHD380/SD8 | ROS 82 |
| QL80/M80/M85 | ROS 84 |
| 10" | 254mm-380mm | 10"-15" | SD10 | ROS 100 |
| NUMA100 |
| 12" | 305mm-508mm | 12"-20" | DHD1120/SD12 | ROS 120 |
| NUMA120/NUMA125 |
| Notes: |
| Metzke, Remet thread is available! |
| Any special size of DTH bits will be available by requests. |
We can also provide related products DTH hammers, ODEX system, symmetrix systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc
Quality warranty:
Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.
Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.
Production time:
Generally need 15-25 days
Transportation:
By air, By Express or By sea according to your requests.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a specialized manufacturer.
Q: What are your main products, and used for?
A: Our products include core bit, PDC bit, reaming shell, core barrel, casing, drill rod, SPT equipment, Shelby sampler, drill rig and other drilling parts.
They are used for mineral exploration, geological drilling, geotechnical engineering and soil sampling.
Q: How about the delivery terms?
1. Payment: T/T, L/C, Western Union, Paypal, 30% deposit in advance and rest before delivery.
2. Min. order quantity: 1 piece.
3. Transportation: By DHL/TNT/Fedex express, air, sea, train.
Q: How about discount?
A: Price is based on products and order quantity.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a manufacturer, we offer promt technology support for all problems and questions. Besides, we accept goods return or replace for quality problem.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products, Roschen always makes a serious inspection for all products and raw materials in strict procedure. We have obtained certificate of ISO9001:2000 in 2004.
For more information please contact:
ROSCHEN INC.
ROSCHEN GROUP LIMITED
ROSCHEN HOLDINGS LIMITED
: +86-137 6419 5009 ; +86-135 8585 5390
Website: http://www.roschen.net
; http://www.roschen.cn
http://www.roschen.com
; http://www.roschengroup.com
ROSCHEN Geotechnical drilling, geothermal drilling, Oil and gas drilling, Exploration Core drilling, Rock Drilling products
ROSCHEN Geotechnical drilling, geothermal drilling, Oil and gas drilling, Exploration Core drilling, Rock Drilling, can offer the equipment needed for all rock drilling, underground and surface exploration applications in Mining Industry, Water Well Industry, Oil Field Industry and geothermal industry, etc. This includes rigs and all full range of high technology and high quality products, ITH equipment such as button bit, DTH bit, DTH Hammer, wireline series products, metric series products, drill rod and conventional core barrel, overshot, as well as casing and diamond core bit - all designed to maximize our customer profitability.
Rock drilling and Exploration drilling is tough, results-driven work. And if you want it done right, you need the right tools. ROSCHEN Exploration Products has the products you've depended on for many years.
All our products are designed to help the user minimize down-time and maximize productivity. ROSCHEN products used in many industries: Waterwell, Environmental, Oil Exploration, Mining, Geothermal and Construction.
We build drill bits to the highest standards - using raw materials selected for quality and durability, and assembling them with the latest metallurgical technology.
Our innovative and unique alloy formulations assure you of maximum penetration under all conditions, and ROSCHEN can customize drill bits to your specifications for any especially difficult drilling situations.
You'll find our experienced production team delivers exactly what you need - any time, anywhere. ROSCHEN has one clear focus - to provide the best diamond-drilling tools, equipment and accessories for the world's leading mineral drilling exploration companies.
