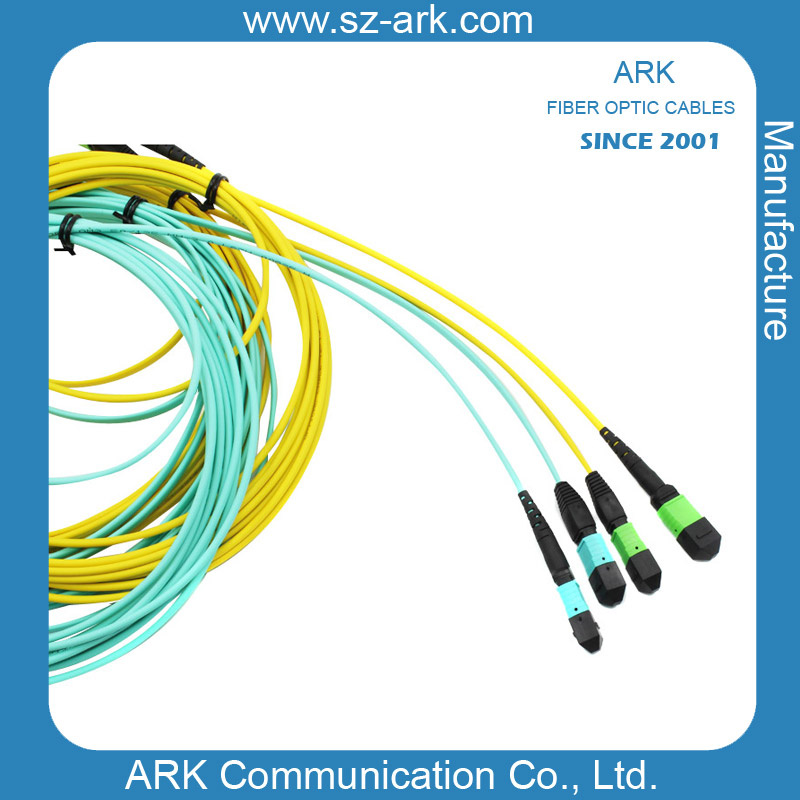

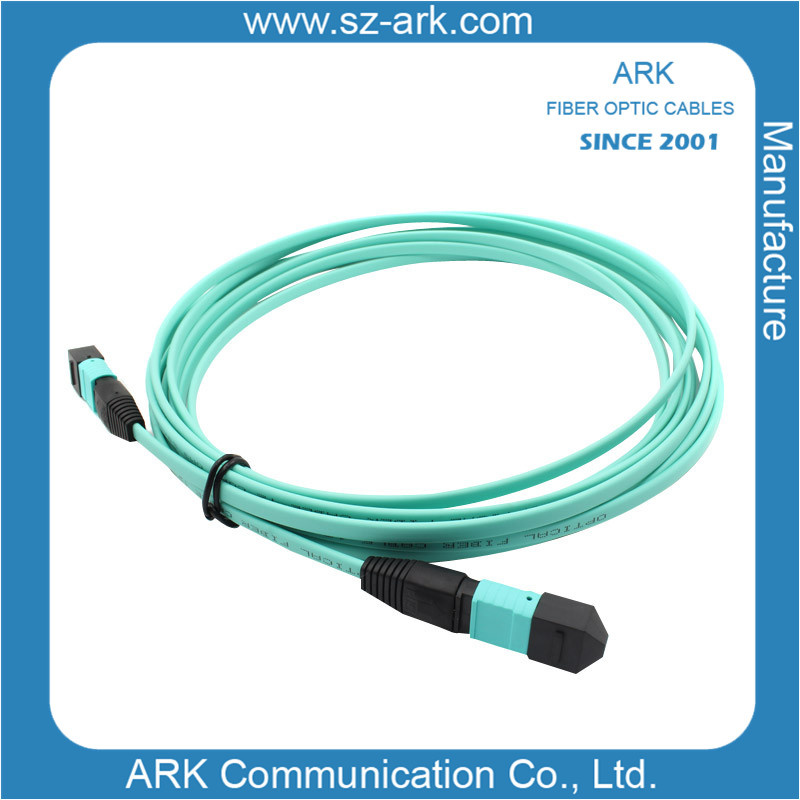

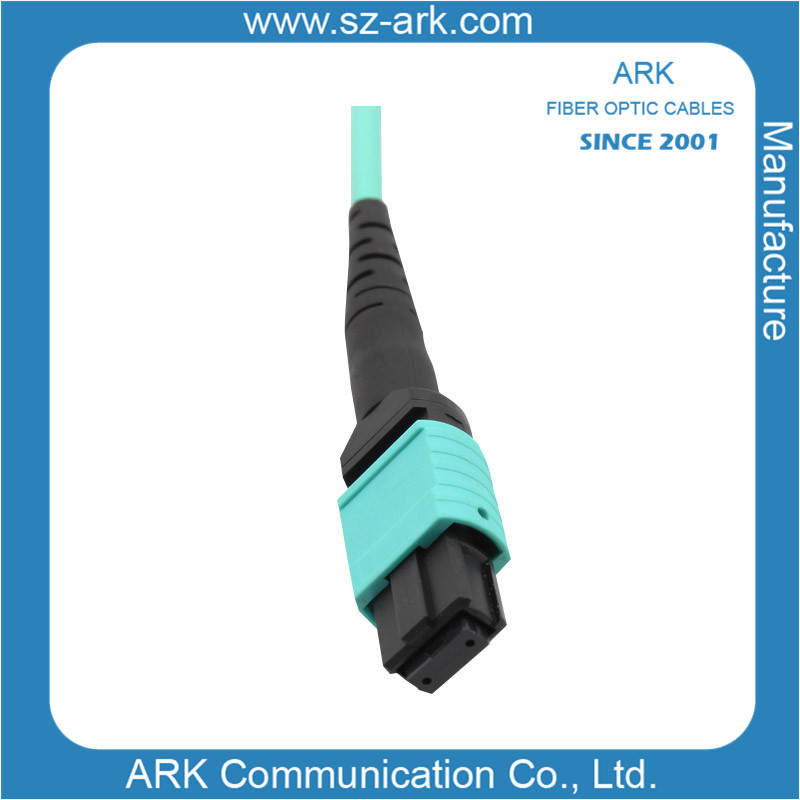

Optical Fiber for MPO Patch Cord
| Price: |
US $ 25-40/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
| Prod Model: |
mpo |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cable Diameter Szie: |
0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm |
| Connector Housing Color: |
Blue, Beige, Aqua, Black, Green, Red, Yellow, |
| Connector Boot Color: |
Blue, Beige, Aqua, Black, Green, Red,White, |
| Clips: |
with Clips, Without Clips |
| Length: |
0.5m, 1m,2m or Customized |
| Cable Jacket Color: |
Blue, Beige, Aqua, Black, Green, Yellow,Customized |
| Connector Type: |
Simplex, Duplex |
| Cable Type: |
Mini Cable, Ribbon Cable |
| Application: |
FTTX |
| Type: |
Multi-mode Fiber |
| Certification: |
SGS |
| Connection Structure: |
MPO-MPO |
| Brand: |
Ark |
| Sheath Material: |
PVC; Lszh; PE; Ofnp; Ofnr |
Product Description
BRIEF INTRODUCTION
The MT-RJ and MPO are the MT series. Small size, Multi-channel is the most prominent feature, which greatly facilitates the high-density wiring. The MT series connectors have been widely applied to the CATV, Multimedia, Gigabit Ethernet, active device interface, data processing networks, telecommunication networks, asynchronous Transmission Mode (ATM). The MT-RJ is duplex ferrule plug-jack (RJ-45) design and the MPO can be 24 fibers, the MPO patchcord cable can be ribbon fiber or breakout fiber, also, the MTP is available; the MT series patchcord have low insertion loss and high precision guide pins exact alignment. SPECIFICATIONS | ITEM | PARAMETER |
| Applicative connector type | MTRJ,MPO,MTP |
| Fiber mode | Single mode(PC) | Multi-mode(PC) |
| Operating wavelength | 1250~1650nm | 850nm, 1300nm |
| Test wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion Loss | MT-RJ: typical≤0.40dB,Max≤0.50dB
MPO: typical≤0.50dB,Max≤0.70 dB | MT-RJ: typical≤0.25dB,Max≤0.30dB
MPO: typical≤0.40dB,Max≤0.50dB |
| Return Loss | APC≥50dB | / |
| Applicative cable OD. | MTRJ: Duplex ∮2.0mm / Simplex ∮3.0mm; MPO: Ribbon fiber/breakout fiber |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Durability | ≤0.20dB typical change,500 mating |
| Tensile Strength | ≥120N(without 0.9mm patchcord) or customized |
| Operating Temperature | -20ºC to +70ºC |
| Storage Temperature | -40ºC to +85ºC |
ORDERING OPTIONS| Fiber Type | Cable Type | Connector | Boot Size | Boot Color | Polishing Type | Length |
| SM: 9/125μm | Simplex(2-fiber) | Male | 2.0mm | Black | PC | Customized |
| MM: 50/125μm | Duplex | Female | 3.0mm |
| APC |
|
| MM: 62.5/125μm | Ribbon |
| Ribbon |
|
|
|
| MM: OM3 | Breakout |
|
|
|
|
|
