Optimizing Cross Cut Saw for Woodworking

Optimizing Cross Cut Saw for Woodworking
Price: US $ 30000-35000/Set
Min Order: 1/Set
Pay Type: L/C,T/T,Western Union
Prod Model: MJ344
Brand: Hicas
Voltage: 380V, 3phase, 50Hz
Warranty: 12 Months
Name: Wood Optimizing Cross Cutting Saw
Application: Woodworking
Key Word: Optimizing Saw
Dimension: 8500*1400*1550mm
Total Power: 16kw
Usage: Cutting Wood
Suitable: Furniture Factory
Layout: Horizontal
Controlling Mode: CNC
Automatic Grade: Automatic
Precision: High Precision
Certification: ISO
Type: Optimizing Cross Cutting Saw

Product Description

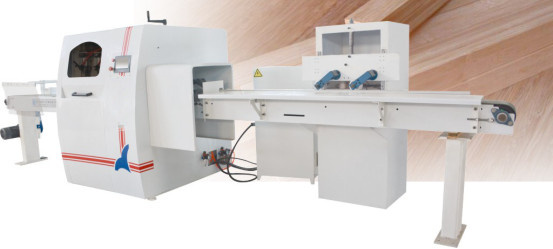

MJ344 optimizing cross cut saw


Technical Parameters
Saw blade diameter405mm
Cutting section140*40mm/70*70mm
Cutting thickness15-70mm
Cutting width20-140mm
Feeding wood length350-6300mm
Saw axle rotation speed4000RPM
Saw blade driven motor5.5kw
Servo driven motor4.5kw
Saw blade lifting methodservo motor
Saw blade lifting motor4.5kw
Total power16kw
Voltage380v 50hz 3phase (can customized)
Upper pressing rollers6pcs
Down pressing rollers6pcs
5 optimizing principles
1) more timber yield
2) long wood cutting
3) quantity optimizing
4) waste cutting
5) less waste optimizing
Feeding speedmax. 100m/min
Machine weight2000kg
Machine dimension8500*1400*1550mm
Software control systemSchneider

Qingdao High-Class Service Import & Export Co., Ltd was founded in March 2011, At present we already have three factories and our self-contained products have three models, including edge banding machine, panel saw, sanding machine, membrane machine. Our products are stable and have a price advantage, It can bring you the highest efficiency in the shortest possible time. Besides, Our current annual production capacity is also large, annual production of 500 edge machine, cutting board saw 1000, 200 membrane machine, sanding machine 500.

Due to our high quality products and professional services, we have accumulated seven international agency services. And take into account the particleboard production line, plywood production lines and packaging production lines, etc.

We have our own trade services company, currently has online service department, network development department and purchasing department.

We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers. We hope to be the top supplier and provide the best machines and service to customers who are in the woodworking industry. Sincerely hope to cooperate with you and creat a better future!
