| Prod Model: |
E3041B |
| Mortise: |
ANSI Standard Mortise |
| Certificates: |
Ce, FCC, ANSI/Bhma A156 UL, Fidelio/Opera |
| Key Features: |
Waterproof, Unique Design, High Sensitivity |
| Color Optional: |
Silver, Gold (PVD) |
| Keycard Type: |
M1 Card |
| Static Current: |
<30ua |
| Dynamic Current: |
<150mA |
| Working Humidity: |
20%-90%Rh |
| Working Temperature: |
-50 Celsius-60 Celsius |
| Power Supply: |
4PCS AA Alkaline Batteries |
| Style: |
Modern |
| Anti-theft Standard: |
A |
| Lock Cylinder Length: |
90mm |
| Usage: |
Hotel Lock, Office, University |
| Material: |
304 Stainless Steel, 2.0mm |
| Type: |
Battery |
| Backset: |
60-70mm |
| Door Thickness Fits: |
32-55mm |
Product Description

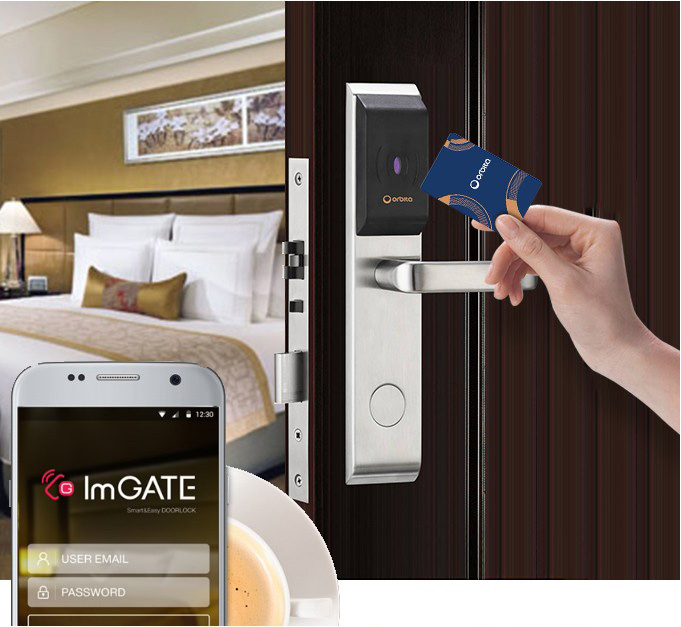

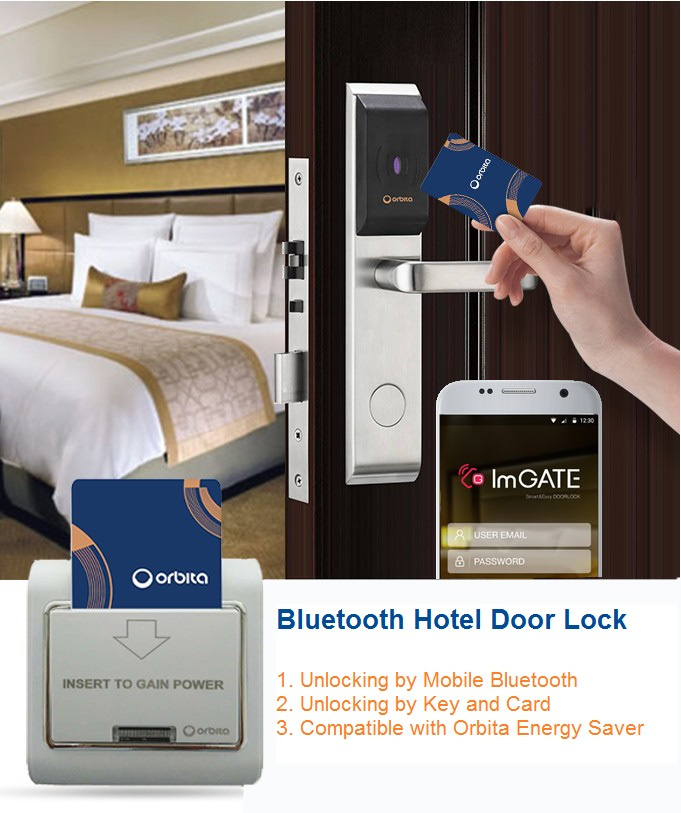

Orbita RFID Key Card Bluetooth Door Handle Lock for Hotel/Home/Office
Valuable Feature of Bluetooth Hotel Door Lock 1. Triple security
2. No need to bring any card
3. Saving time for line and easy use with mobile App
4. Easy intergration and management
Reliable of Bluetooth Hotel Door Lock
1. Door lock open within 1.5 second after tagging
2. Stability-over 100,000 test
3. Semultaneous reservation is possible
Bluetooth Hotel Lock Specifications1. Waterproof Function: Good Performance Under Hyperthermia and Humid Environment
2. Material: 304 Stainless Steel, thickness 2.0mm
3. Keycard Type: M1 S50
4. Certificates: ISO 9001:2008, CE, FCC, ANSI/BHMA A156 UL, Fidelio/OPERA
5. Door open method: Key and card
6. High security with entryption door lock and card | Product Name | Waterproof bluetooth hotel lock E3041B |
| Application | Hotel, Resort, Apartment, Dormitory, Guesthouse etc. |
| External Panel Dimension | 290*60*15mm |
| Material | 304 Stainless Steel |
| Worining Voltage | DC6V or 4 AA Alkaline batteries |
| Battery life time | Normally open door 15000 times,last 18 months |
| Mortise | ANSI standard mortise |
| Opening Records | 240pcs |
| Suitable Door Thickness Range | 32-55mm |
| Color Optional | Silver, gold |
| Key Features | Waterproof, unique design, high sensitivity |
| Certificate | CE, FCC, ANSI/BHMA A156 UL test,Fidelio/Opera |
Bluetooth Hotel Lock Functional Characteristics1. Standalone electronic keycard lock with RFID technology.
2. 304 stainless steel material, lock surface color lasts more than 10 years.
3. ANSI standard mortise, 5 latches, inside handle retracts latches and deadbolt.
4. Mifare 1 technology, compatible with Orbita energy saving switch.
5. Low power consumption, using 4pcs AA alkaline batteries, 12-18 months duration depends on quality.
6. Work with Orbita Locking System that interface with Opera Fidelio and most of the PMS systems.
7. Step by step installation software, easy operation, customized language.
8. Guest Card, Master Card, Floor Card, Emergency Card, satisfy hotel requirements for electric lock.
9. Meeting room function: set up all locks as meeting room when hotel is under construction or decoration to
avoid lock demage.
10. Save and print 240pcs lock opening records.
11. Issuing new card with suspending function if lost guest card or staff card.
12. Integrates with handset which is helpful assistance for lock set up and maintenance, can work as Master
Card.
13. Warning by 3 times beep and 3 times red light flash indicates low battery, and still can use around 100 times.
14. Gold color by PVD technology that can resist corrosion for long time.
15. Passed CE & FCC Certification, American military ANSI/BHMA A156 UL test, last more than 800,000 circles.
16. Waterproof function that has good performance under hyperthermia and humid environment, popular using in
Southeast Asia.
17. Override mechanical key for emergency use, individual or master cylinder.
18. High sensitivity of proximity, response in second with 3cm distance.
Application Area of Hotel Door Lock
Hotel, Office Lift, Parking, Swimming Pool, Sauna Room, Tennis court, Gym...
Why Choose Bluetooth Hotel Door Lock
The Benefit to Hotel:
1. Easy installation and maintenance\
2. No online booking fee
3. Hotel booking anytime, anywhere
The Benefit to Guest:
1. Best mobile service experience
2. 1:1 direct communication
3. Real time event and News feed
4. Saving time for line, check-in, check-out with App, receive room information from App
Hotel Lock Certificates:
Wireless hotel lock software•Step by step user friendly software.
•Software operation records.
•Classified operating authorization.
•Download the lock opening records.
•Support winxp,win7, win8, vista,win10
•Support 32/64 digit system.
•Interface with major PMS.
•Suspend lost card, blacklist certain users.
Wireless hotel lock card function:| Guest Card | Maximum of 8 doors (including common ones and those of a suite room)
of the same floor can be set per card. Supports blacklist. |
| Master Card | Can open every door of the same locking system, including those deadbolted.
Same function can be found in the PP. (5. open doors).
For this reason the master card and/or PP MUST BE SECURED when not in use. |
| Emergency Card | Functions as the master card and meanwhile sets off alarm which can be canceled
by any other open-door cards or a PP using its open doors function.
For this reason the emergency card MUST BE SECURED when not in use. |
| Maintenance Card | Can open a specific lock within a period of time or a few times. |
| Building Card | Can open all doors of the same building within a period of time. |
| Floor Card | Can open all doors of the same floor within a period of time. |
| Group Card | Can open all doors of the same group within a period of time.
Supports up to 8 groups. |
| Clock Card | Sets the time of lock's inbuilt clock. Same function can be found in the PP.
(6. settings → 1. clock set).
It is recommended that you set time by using the PP when dealing with more than
one lock, because the time in the card remains still while that in the PP keeps going on. |
Data Card
(S70 Type) | A lock contains an audit trail of the last 210 openings (at most).
To collect and view the audit trail you must use a data card
or the READ OPENINGS function of or the PP. |
| Blocking Card | Access to every door of the same locking system can be blocked by this card and
can be regained only by a PP, a master card or an emergency card,
and the status of a blocked lock can be changed into unblocked by a blocking card only.
For this reason the blocking card MUST BE SECURED when not in use. |
Orbita Presentation:Orbita was founded in 2004, manufacturing innovative hospitality products to overseas market. Till now, more than 5000 hotels ranging from 3 to 5 star covering 100 countries and most of the hotel chains are using Orbita hotel card locks, safes, minibars and other guest room accessories.
46,000 square meters garden factory with complete facility and 100,000 units monthly production capacity makes Orbita the biggest productivity in the industry in China. We produce more than 100 models and provide OEM or ODM services.
Varies tests have been conducted to ensure the quality of the products, Orbita locking system integrated with Fedelio/Opera PMS and has wide range of compatibility, and our products are CE, FCC, RoHS, SONCAP, SASO and ANSI/BHMA A156 UL certified.
Orbita owned high reputation in hospitality industry from offering high quality products, reasonable price with professional and effective service. We keep moving to bring more benefits and satisfaction to our worldwide customers.
The Advantage of ORBITA:1.Professional:15 years in hospitality industry.2.Factory scale: 46000 square meter garden factory, No. 1 in this industry in China.3.Production Facility: In house molding, punching, injection, die casting, polishing, assembling. 4.Fast Delivery: delivery within 1-3 weeks operated by professional logistic staff.5.International Certificate: ISO, BHMA, SIRIM, CE, FCC, SASO, SONCAP.6.Compatibility: PMS interface with Opera Fidelio and other popular PMS.7.OEM, ODM facility: Can accept OEM, ODM .8.Concentration: 100% exporting. 9.Efficiency: Quick response and professional overseas operation from professional sales team..10.World wide reference: more than 10,000 hotels covering most of the international hotel chains in 100
countries.11.Innovative: Strong R&D team, keep designing unique new products.12.Quality: Best material plus model test equipment by most experienced management team.13.After service: Professional service people offer online or onsite support and service. World wide
support network. Overseas office and service center available in some countries.14.Two years warranteeFAQ:Q: Can your locking system connect to PMS system?
A: Yes. our locking system interfaces with Opera Fidelio and most of PMS systems.
Q: What is the minimum thickness of the door?
A: Thickness range is from 32mm to 80mm. If door thickness is less than 32mm, we suggest to use our Euro standard type.
Q: How do I know whether the battery expires?
A: Warning by 3 times beep and 3 times red light flash indicates low battery, and still can use around 100 times.
Q: How do you pack goods? Is it safe for freight ?
A: We pack goods by foam case and carton, 6units/ carton. It's safe, no damage on the way.Related hotel products
Orbita is a reputable hospitality products manufacturer with ISO certified 46, 000 square meters garden factory, established to offer the best quality products with professional and effective service to our customers.
Orbita series of products including hotel card locking system, hotel in room safe, hotel minibar, touch screen switch, hotel in room telephone, cabinet locker, smart hotel room system and other hotel in room accessories, are products of years of experience integrated with advanced technologies from Siemens, Dallas, Atmel, Philips etc. Orbita locking system certified by Opera Fidelio and other popular PMS system, has just enabled Orbita products to a wide range of compatibility.
In fact, all of ORBITA products are CE, FCC, RoHS marked and ORBITA is one of the few brands in this industry that passed 800, 000 times BHMA standard circling test. Regional standard like SASO, SONCAP, SIRIM are also available with all Orbita products.
More than 10, 000 hotels, service apartments, resorts, university dormitories, hospitals and cruise ships covering 100 countries in the world are using Orbita card locks, digital safes, minibars, touch screen switches and other satisfactory hotel intelligent accessories. Our customers include most popular international hotel management groups such as Accor, Marriot, Carlson, Hilton, Starwood, Intercontinental, Kempinski, Crow Regency and other regional hotel management groups. Moreover, Orbita is also offering OEM & ODM services for many leading Europe and American brands in this industry
ORBITA believes that every customer is a customer for life, manufacturing products of fine quality with our experience and knowledge is our source of pride and customer's satisfaction is our only criterion in service.
