| Prod Model: |
ZA4204TX-QR |
| Brand: |
Enerpac |
| Material: |
Stainless Steel |
| Structure: |
General Cylinder |
| Power: |
Hydraulic |
| Standard: |
Standard |
| Pressure Direction: |
Single-acting Cylinder |
| Double-Acting Cylinder Type: |
Common Cylinder |
Product Description

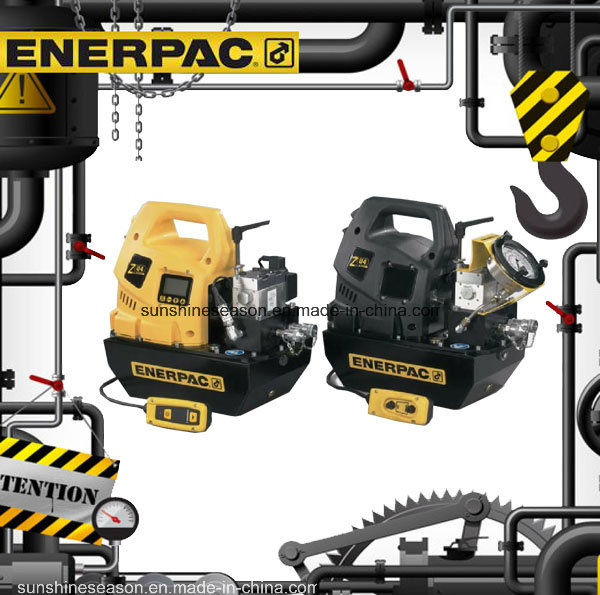

ZU4T-Series, Electric Torque Wrench Pumps
Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
Powerful 1,25 kW universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
High-strength, molded composite shroud protects motor and electrical components, while providing an ergonomic, non-conductive handle for easy transport
Pendant provides additional safety for the operator
Pro Series pump only
LCD readout provides pressure display and a number of diagnostic and readout capabilities never before offered on a portable electric pump
Auto-Cycle feature provides continuous cycle operation of the torque wrench as long as the advance button is pressed (pump can be used with or without auto cycle feature).
| For Use With Torque Wrenches | Model Number 1) 4) | Motor Electrical Specification | Usable Oil Capacity | Weight |
| (litres) | (kg) |
Pro
Series | All Wrenches | ZU4204TB-Q | 115 VAC, 1-ph | 4,0 | 32 |
| ZU4208TB-Q | 115 VAC, 1-ph | 8,0 | 34 |
| ZU4204TE-Q 2) | 208-240 VAC, 1-ph | 4,0 | 32 |
| ZU4208TE-Q 2) | 208-240 VAC, 1-ph | 8,0 | 34 |
| ZU4204TI-Q 3) | 208-240 VAC, 1-ph | 4,0 | 32 |
| ZU4208TI-Q 3) | 208-240 VAC, 1-ph | 8,0 | 34 |
| Classic | All Wrenches | ZU4204BB-QH | 115 VAC, 1-ph | 4,0 | 37 |
| ZU4204BB-Q | 115 VAC, 1-ph | 4,0 | 33 |
| ZU4208BE-QH 2) | 208-240 VAC, 1-ph | 8,0 | 38 |
| ZU4204BE-Q 2) | 208-240 VAC, 1-ph | 4,0 | 34 |
| ZU4208BI-QH 3) | 208-240 VAC, 1-ph | 8,0 | 40 |
| ZU4208BI-Q 3) | 208-240 VAC, 1-ph | 8,0 | 36 |
SUNSHINE SEASON INDUSTRY (China) Co., Ltd., a company with its own power products factory, our power products are based on the earliest factory in China, is an export-oriented joint-stock enterprise, it integrates engine and generator R&D, production and sale of one. And we also offer many famous brands generators, water pumps & engines, such as Original ELEPAQ, PM&T, TIGER, TIGMAX, SZTIGER, ERMA, SUNSHINE SEASON, etc. Brands, we can assure you the best prices and quality to support you open more market in your country!
Most of SUNSHINE SEASON power products have been approved by CE, EPA, CARB, Canada CSA standard, EII emission standard, GS standard, and ISO 9001: 2000. Products served to EU, North America, Middle East, Afica, Australia, Russia and so on, over 70 countries and regions, especially providing service for global well-known brand.
Meanwhile, we company is the Distributor of ENERPAC hydraulic tools here in China!
Warmly welcome to inquire! We are sure we will have a prosperous cooperation for long run!
