| Prod Model: |
ND-2011 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Speed: |
500-900rpm |
| Non-Load Noise: |
78dB |
| Voltage: |
220V/50Hz |
| Net Weight: |
1700g |
| Weight Of Aluminum Box: |
2280g |
| Working Voltage: |
14.4V |
| Torque(Quick Chuck): |
>7500g/C |
| Torque(Reamer): |
>33000g/C |
| Applocation: |
for Hip Joint Surgery |
| MOQ: |
1PC |
| Application: |
Burns |
| Feature: |
Reusable |
| Certification: |
ISO13485 |
| Group: |
Adult |
| Type: |
Medical Electric Drill |
| Material: |
Stainless Steel |
Product Description

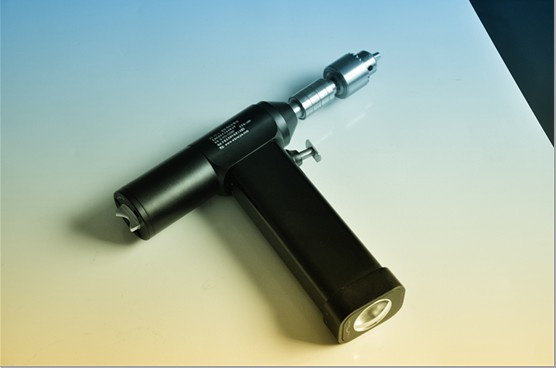

Orthopedic instrument rechargeable Surgical Bone Drill for joint surgery ND-20111: Detailed Product Description
I: Autoclavable.
Ii: Professional drill and saw manufacturer.
Iii: Drill chuck scope: 0.6-8mm/0.6-6mm.
Iv: Discretionary speed control.
2: Technical Data:
Hand Piece Working Voltage 14.4V
Hand Piece Output Power ≥ 20W
Hand Piece Unit Rise In Temperature ≤ 25° C
Charger Input Voltage AC 220V, 50Hz
Charger Output Power 14.4V, 900mA
Charger Input Power 30VA
Battery Voltage 14.4V
Battery Charging Time About Three Hours
Battery Couldn't be autoclavable
Non-load Speed ≥ 1300r/m
Non-load Noise ≤ 63dB(A)
Diameter Run-out ≤ 0.5mm
Mateial Stainless Steel
Saw Type Autoclavable type
Diameter of drill chuck 0.6-6mm/0.6-8mm
Color Black
3: Product merits:
I: For traumatic operation.
Ii: Concentric drilling less than 0.05mm difference ensures precise and stable performance.
Iii: Accommodating variety of drilling demands with dedicated drill bit.
Iv: Gearless control drilling speed 0~1300rpm.
V: Torque: >7500g. Cm; Noise: < 63dB; Temp. Rise < 25° C
Vi: Custom-made drilling speed: 1100 rpm. 1200rpm. 1350rpm. 1500rpm are available.
4: Main components:
I: One battery
Ii: One mainframe
Iii: One drill chuck
Iv: One aluminum alloy outer case
V: One sterilizing channel
Vi: One battery charger
5: Packing details:
I: One set packed in the aluminum alloy box and then put in a carton
Ii: Size of aluminum alloy box: 38cmx28cmx13cm
Iii: Size of carton box: 41cmx32cmx15cm
6: Payment term:
I: Price: FOB Shanghai USD450-USD550/set
Ii: MOQ: 1 Set
Iii: Payment term: T/T IN ADVANCE OR WESTERN UNION
Iv: Delivery time: Within 3 days after payment
Many thanks for your kind concern about our items. Any request, pls don't hesitate to contact me. Thanks.
Wuhu Rui Jin medical equipment was established in 2007, is located in the economic prosperity of the Wanjiang Pearl ---- Wuhu City, is a large scale, product range, market network and improve medical device manufacturers.
Enterprise development, production and sale of medical equipment as the main development has mainly orthopedic products used in hospitals and operating rooms. The main products are:
First, medical electric saw drill series, including medical bone drill, hollow saw, pendulum saws, reciprocating saws and other medical electric plaster saw.
Second, micro-medical electric burr series.
Third, medical attract cutting series.
Fourth, rapid sterilization of medical devices. And has the perfect balance between performance and price.
Founded three years, has been "first-class product quality" for the purpose "to meet customer needs" as their responsibility. Business in an increasingly competitive medical device market, to maintain good long-term development. Wuhu Rui Jin Welcome all new and old friends come to visit and negotiate business!
