| Prod Model: |
ND-3011 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
1700g |
| Torque: |
33000g/Cm |
| Diameter Of Drill Chuck: |
0.6-6mm/ 0.6-8mm |
| No-Load Speed: |
0-300r/Min |
| Merits: |
Full-Sealed Motor Be Sterilized up to 135 °c |
| Battery: |
Ni-MH Enviroment Friendly |
| Benefits: |
High Concentricity |
| Certifications: |
CE & ISO Certification |
| Kind: |
Orthopedics |
| Certification: |
ISO13485 |
| LCD Display: |
Without LCD Display |
| Type: |
Acetubulum Operation |
| Group: |
No Limit |
| Source: |
/ |
| Anesthesia: |
/ |
| Type Of Operating Light: |
/ |
Product Description

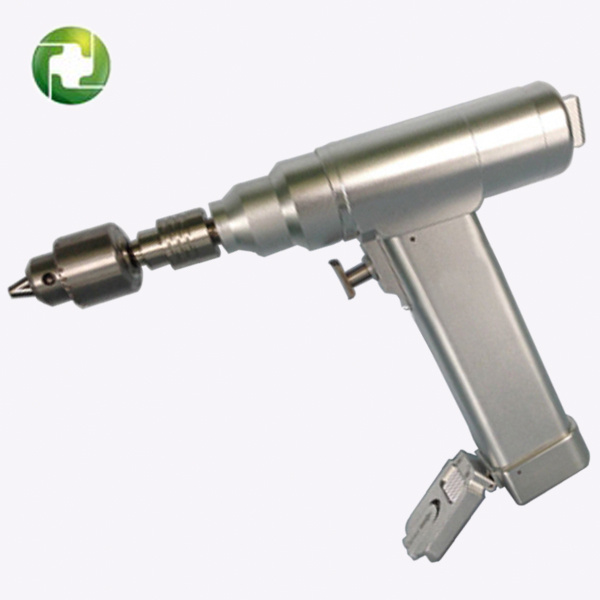

Orthopedic medical equipment Slivery High Torque Cordless Drill (ND-3011)
I: Autoclavable low speed drill.
Ii: Discretionary speed control.
Iii: Low speed with higher torque.
Iv: Versatile and cost-effective.
2: Technical Data:
Working Voltage 14.4V
Output Power ≥ 20W
Unit Rise In Temperature ≤ 25° C
Input Voltage AC 220V, 50Hz
Output Power 14.4V, 900mA
Input Power 30VA
Voltage 14.4V
Charging Time About Three Hours
Speed 300r/min
Diameter run-out ≤ 0.5mm
Noise ≤ 63dB
Drill chuck diameter 0.6-8mm
Material Stainless steel
Torque 33000gcm
Color black
3: Standard Configuration:
I: One mainframe.
Ii: One charger.
Iii: One battery.
Iv: One sterilizing channel.
V: One drill chuck.
Vi: One aluminum alloy box.
4: Main Feature:
I: For joint operation.
Ii: Low speed, great torque, can be connected by any kinds of the acetabulum burnishing tools and medullary cavity expanding tools.
Iii: Main unit can be sterilized by high temperature and high pressure up to 135oC.
Iv: Excellet quality, portable, low noise, variable speed control, carbonless motor available for increased power, allows for easy selection of power dring operation.
V: Scientific balance technics, reduces vibration and enhances handpiece control, afford surgeon a comfortable operation.
Vi: High concentricity ensure the precision of polishing acetabulum in HIP operation.
Vii: Large torsional moment to give more powerful polishing.
Viii: Low speed, high torque.
5: Packing Details:
I: One set packed in the aluminum alloy box and then put in a carton
Ii: Size of aluminum alloy box: 38cmx28cmx13cm
Iii: Size of carton box: 41cmx32cmx15cm
6: Payment Term:
I: Price: $450-500FOB Shanghai.
Ii: MOQ: 1 Set.
Iii: Payment term: T/T IN ADVANCE OR WESTERN UNION.
Iv: Packing details: Aluminium alloy box and then put in a carton.
V: Delivery time: Within 3 days after payment
Wuhu Rui Jin medical equipment was established in 2007, is located in the economic prosperity of the Wanjiang Pearl ---- Wuhu City, is a large scale, product range, market network and improve medical device manufacturers.
Enterprise development, production and sale of medical equipment as the main development has mainly orthopedic products used in hospitals and operating rooms. The main products are:
First, medical electric saw drill series, including medical bone drill, hollow saw, pendulum saws, reciprocating saws and other medical electric plaster saw.
Second, micro-medical electric burr series.
Third, medical attract cutting series.
Fourth, rapid sterilization of medical devices. And has the perfect balance between performance and price.
Founded three years, has been "first-class product quality" for the purpose "to meet customer needs" as their responsibility. Business in an increasingly competitive medical device market, to maintain good long-term development. Wuhu Rui Jin Welcome all new and old friends come to visit and negotiate business!
