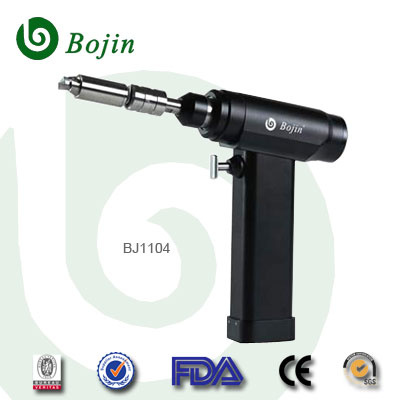

| Prod Model: |
BJ1104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Material: |
Stainless Steel, Aluminium Alloy |
| Name: |
Orthopedic Cranial Drill |
| Color: |
Black |
| Applicate: |
for Neurosurgery |
| Certificate: |
Ce, FDA, ISO |
| Battery: |
Rechargeable |
| Charger: |
1 PCS |
| Warraty: |
2 Years |
| Packing: |
Sterilized Case or Carton Case |
| Application: |
Microsurgery |
| Feature: |
Reusable |
| Certification: |
ISO13485 |
| Group: |
Adult |
| Type: |
Surgical Power Tool |
| Material: |
Aluminium Alloy, Stainless Steel |
Product Description
Application:
For application in cranial surgery.
With the perfect shape of ergonomic design, whole unit is autoclavable, motor is imported, low noise, long service life. Can be stopped by itself after drill through cranial, will not damage brain tissue.

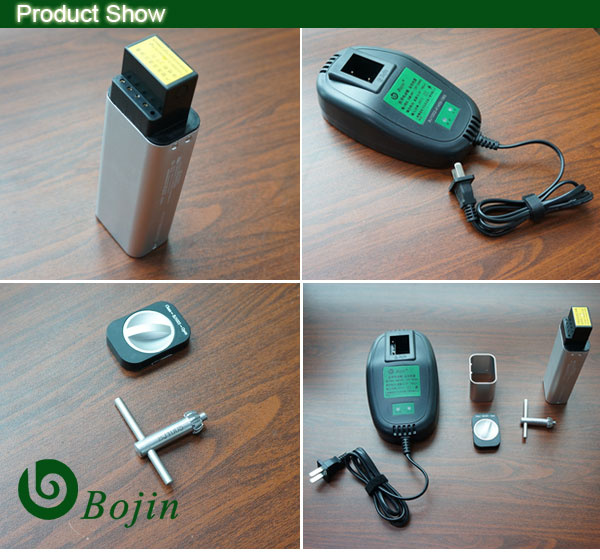

Standard Configuration:
1. One handpiece
2. One battery
3. One charger
4. One cranial drill bit
5. One Aseptic battery transfer ring
6. One Operating manual
7. One Guarantee Card
Warranty:
The handpiece guarantees for 2 years, the battery and other fast consumption items guarantee for 3 months.
Advantages:
1. Our whole power tool can be autoclavable.
2. We can autoclavable for 135 ° C (Improved type ≤ 155 ° C ), with 1.6Mpa, in this way the bacilli and virus which can not killed bythe suffocating will be killed.
3. We use environment friendly nickel-metal hydride battery.
4. The machine has very low noise.
5. Our products has 2 years warranty period.
Notes:
1. Sterilize temperature ≤ 135 ° C (Improved type ≤ 155 ° C ), if the temperature is over 135 ° C, the motor will be damaged.
2. Normal bone drill can only hold drill bits less than 6mm, acetabulum reaming drill with big torque, rpm is around 300, canulate drill is used with nail or K wire, rpm is around 600.
3. The battery need to be get out of the pwer tool after surgery. Otherwise the small automatic discharge of the electric will make the life of the battery short.
4. The battery cannot be sterilized, it is not autoclavable.
5. The cranial bur must be washed right after the surgery by purger in order to aviodthe blood stick in the bur, then we should make it dry.
6. The battery space in the handpiece of the tool should not have any water, after sterilization.
7. The cranial bur blade is made of medical stainless steel, in order to avoid broken, so it is flexible and not very hard, it is easy to be attrite, we suggest each blade only use for 1 surgery.
Output power |
≥105w |
Speed(r.p.m) |
0-1000 |
Oscillations (osc/min) |
/ |
Torque(Nm) |
3.3 |
Operation(V) voltage |
14.4 |
Sterilization |
135°C |
Swings (°) |
/ |
Noise(db) |
≤40 |
Established in 1993 and headquartered in Shanghai, Bojin, as an advanced orthopedic equipment manufacturer and solutions provider, Bojin focuses on the development and marketing of orthopedic-purpose motor products, X-ray imagescopes, treatment apparatus, and supporting surgical tools/parts. It has more than one hundred types of orthopedic products under 8 series, which have received QC certification of 3C, ISO9001, ISO13485, CE of the EU, and FDA Registry 3008787426. Its mission is to satisfy the needs of patients and medical care with innovative high-tech products and therefore become a promoter of people's orthopedic health. It has built a healthy sales and services network thanks to its 200 dedicated employees in the marketing companies or teams in more than 4countries and regions across North America, Europe and Asia. Its products are used in more than 60 countries and, in particular, in more than 20000 Chinese medical institutions 70% of which are 3A-rated hospitals. Bojin respects professionalism and talents and values core technology R&D. Its R&D team accounts for up to 20% of its staff, for it is fully aware that its top-notch professionals provide for the healthy operation of the company, the steady supply of high-quality medical equipment and comprehensive services for its global customers. Its innovation in products and solutions reduce social medical costs and therefore lessen the financial burden of patients. In the spirit of valuing life and health, Bojin, with a strong sense of social responsibility, are dedicated to innovating technology and upgrading product quality, thus ultimately helping improve the health of larger population. Its development is, as always, dependent upon technological innovation, common endeavor of the staff, and constant improvement of management philosophy. Each step forward has witnessed the staff's resilience and entrepreneurship, which, in turn, promotes the company's development and fortifies the staff's confidence in the company's prospect.
