| Prod Model: |
OB-230 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Controlling Mode: |
Artificial |
| Structure: |
Deep Hole Drilling |
| Layout: |
Vertical |
| Automatic Grade: |
Manual |
| Precision: |
Precision |
| RoHS: |
Red |
| Weight: |
25kgs |
| Material: |
Diamond |
Product Description
Drilling range: 15-230mm
Rated voltage: 220V-
Rated frequency: 50-60Hz
Input power: 4080W
No-load speed: 0-600r/min
Diamond drill, also called concrete drill is a new type of tool which can drill on RC, brick and stone, rock, China and fireproof materials. It is hold such characteristics as working without dust, high efficiency, smooth wall of hole and accurate size. It is available in many fields of construction, quality-checking, airfield runway, tunnel of road, railroad and railroad bridge.
Specifications
Core drilling machine
German Technology
Professional drilling machine manufacturer
CE/ROHS certified
OEM service
Chengxiang is a certified GB/T 19001-2008/ISO 9001: 2008 Factory of manufacturing diamond core drilling machines,
Magnetic drilling machines and wall cutters.
Product Detail:

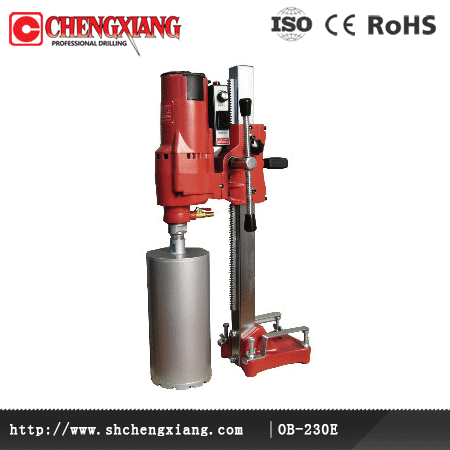

Model: OB-230
Product Feature:
OUBAO diamond core drilling machine OB-230 is a new type of tool which can drill on RC, brick and stone, rock, china and fireproof materials.
|
Model |
OB-205 |
OB-230 |
OB-255 |
OB-305 |
OB-355 |
|
Max Drilling |
ø205MM |
ø230MM |
ø255MM |
ø305MM |
ø355MM |
|
Rated Voltage |
220V |
220V |
220V |
220V |
220V |
|
Input Power |
3900W |
4080W |
4250W |
4550W |
4780W |
|
No-load Speed |
700RPM |
600RPM |
580RPM |
380RPM |
300RPM |
|
N.W. |
22KGS |
23KGS |
27KGS |
30KGS |
32KGS |
|
G.W. |
24KGS |
25KGS |
29KGS |
32KGS |
34KGS |
|
Size |
35*22*87CM |
35*22*97CM |
35*22*97CM |
42*29*97CM |
42*29*97CM |
Shanghai Chengxiang Electromechanical Equipment Co., Ltd. is a high-tech enterprise which boasts of scientific research, manufacture and sale. Our products include industrial drills, such as diamond drills, wall cutting machines and magnetic drills.
Our independent R&D products are very popular at home and abroad, such as multifunctional diamond drills, wall cutting machines and cutting and detaching machines, as well as multi-functional magnetic drills.
Chengxiang keeps up with what clients need, with an international and unique view. Here what we provide is not only fully-ranged, innovative and professional products, but also professional services in a highly efficient and swift way.
