Outdoor Full Color Front Maintenance LED Display for Advertising
| Price: |
US $ 800-900/Square Meter |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
MS-2 |
| Module Size: |
320*320mm |
| Module Resolution: |
40*40/32*32 |
| LED Configuration: |
SMD3535 |
| Brightness: |
5,500nits/Sqm |
| Refresh Rate: |
>960Hz |
| Cabinet Weight: |
45kgs |
| Maintenance: |
Front*Back Access |
| Control System: |
Nova/Linsn |
| Input Voltage: |
110-220 VAC/+/- 10% |
| Working Temperature: |
-20°c~+55°c |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Market Display |
| Average Power Consumption: |
220W / m² |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
| Pixel Pitch: |
P8,P10 |
| Pixel Density: |
15,625/10,000 |
| Scanning Mode: |
1/5;1/4 |
Product Description
Specifications for Outdoor Front Maintenance LED Display Sign for Advertising: | Specifications | Parameters |
| Model | MS-2 | MS-2 |
| Pixel pitch | 8 | 10 |
| Application | Outdoor | Outdoor |
| Screen size | 960*960*150mm | 960*960*150mm |
| Resolution | 128(W)*128(H) | 96(W)*96(H) |
| Pixel Destiny | 15,625/sqm | 10,000/sqm |
| Weight | 48kgs/sqm | 48kgs/sqm |
| Brightness | 6,000cd/sqm | 6,000cd/sqm |
| Grey grade | 16bit | 16bit |
| Refresh rate | ≥960Hz | ≥960Hz |
| Max./Ave Power | Max. 800w/sqm; Average 260w/sqm | Max. 700w/sqm; Average 220w/sqm |
| Working voltage | 53.5VDC/110-240VAC | 53.5VDC/110-240VAC |
| LED Configuration | SMD3535 | DIP346 |
| Working temperature | -10ºC~+45ºC | -10ºC~+45ºC |
| Working humidity | 10%~90%RH | 10%~90%RH |
| Maintenance | Front Maintenance | Front Maintenance |
What services we can offer:* 2 years warranty;
* MdiVisual provides prompt response to your ANY requirements within 24 hours;
* A Patient supports team to teach you product knowledge, guide you for installation, train your engineers how to configure software and solve Any issued;
* Local supports service is available.
More details for Outdoor Front Maintenance LED Display Sign for Advertising:
Front access operation processes

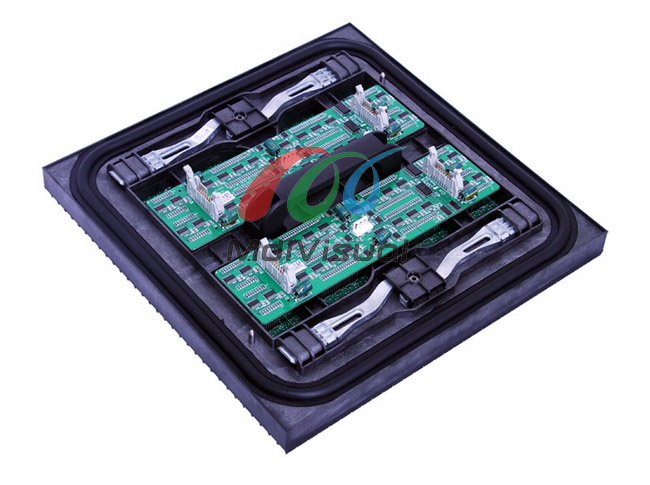

Modules, Power supply, Receiving cards and cables can be replaced from front.
Advantages of Outdoor Front Maintenance LED Display Sign for Advertising:* Saving labor and time: No scews between LED modules and cabinet, it's fast to discharge all components;
* Save total costs: No need maintenance space at screen back, simplify support structure.
MdiVisual Technology Co., Ltd., the professional creative manufacturer for LED Displays industry, founded in 2013 in Shenzhen China, MdiVisual is concentrating on Designing, Manufacturing and Marketing LED Displays includes Indoor & Outdoor Rental LED Displays, Taxi LED Displays, Transparent LED Panels, Curtain LED Screens, Advertising LED Displays and Front accessible LED Modules, which are widely used for Events, Stages, Concerts, Festivals, Shopping malls, Airports, Stations, Roads, Anomalous locations and etc.
MdiVisual own a powerful R&D team, who had more than 8 years extensive experience in this field, our products are designed based on EMC, CE, FCC, RoHS, ETL standards. Our sales engineers had frequent oversea experience to worldwide markets, and signed long-term contracts with clients from Germany, UK, France, Italy, American, Brazil, Mexico, Argentina, Chile, Colombia and etc. MdiVisual understand the local markets, know the products trend. Depending on our R&D team, MdiVisual is available to develop customized LED Displays according to clients special requirements, and supports OEM/ODM services.
MdiVisual is the enterprise that insist on priciples of Sincerely, Professional, Responsibility, our mission is to help clients establish, enlarge and occupy the markets.
Sincerely welcome to join us!
