Prod Model: |
Outdoor G652D ADSS Fiber Optic Cable |
Model Number: |
ADSS |
Product Name: |
G652D ADSS 24 Core Optic Fiber Cable Cheap Price |
Jacket: |
Low Smoke, Halogen Free |
Work Time: |
More Than 30 Years |
Package: |
Carton Box/Wooden Drum |
Strength Materia.L: |
Kevlar |
Fiber: |
G652,G655,657 |
OEM/ODM: |
Yes |
Loose Tube: |
PBT |
Product Description

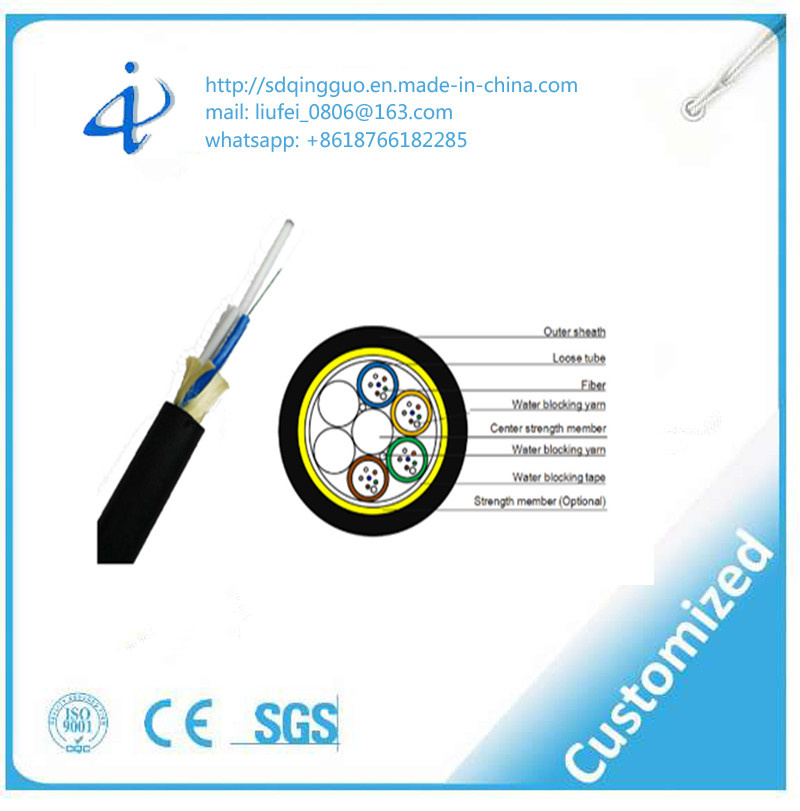

ADSS cable is loose tube stranded. Fibers, 250µm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Single Layer Aerial ADSS Cable is idea for installation in distribution as well as transmission environments, even when live -line installations are required As its name indicates,there is no support or messenger wire required,so installation is
achieved in a single pass. .
Characteristics:
Can be continuously electric erection;
Using AT sheath, electrical erosion resisting superior performance;
Light weight, small cable diameter, reducing the ice;
Large span, the largest span more than 1000 meters.
Note:
1. Only a part of adss optic cable are listed in the table. Adss optic cable with other spans can be inquired.
2. Adss optic cable can be supplied with a range of single mode or multimode fibers.
3. Specially designed adss optic cable structure is available on request...

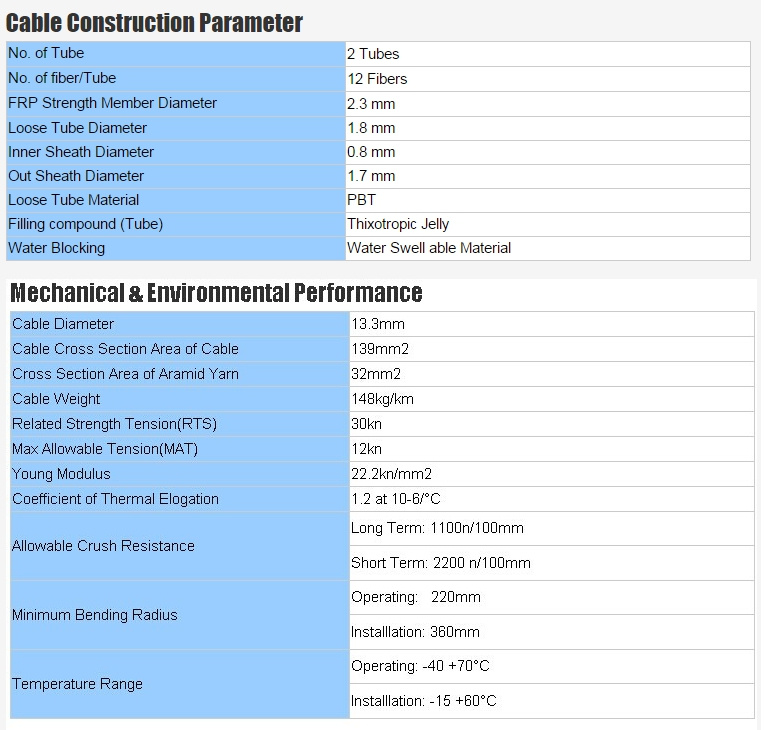

Product name | Model | Jacket |
ADSS Optical Cable | G652,G655,G657 cable | Low smoke, halogen free |

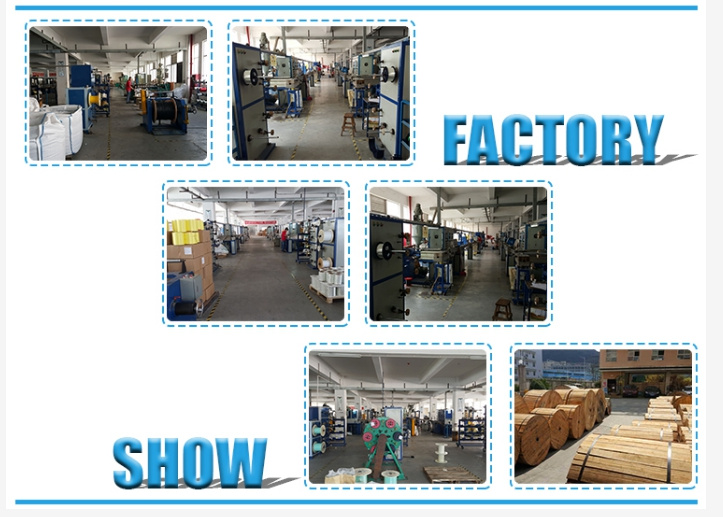

Jinan Qingguo Optical Fiber Co., Ltd is a leading enterprise as a manufacturer of power fiber optic cable(ADSS cable and OPGW cable), aluminum clad stee for electric power( Aluminum Conductor Aluminum Clad Steel Reinforced) and other fiber optic cable in China. We have over 300 equipments for manufacturing various cables and optic cables and over 100 testing equipments. The production lines include Austria MS Coloring Machines, Color Circling Machine, Switzerland Swiss Cable Secondary Coating Line, France Delachaux stainless steel tube welding line, European first-class steel tube laser welding line for submarine and OPGW fiber optic cables, fluro-plastic high temperature lines of US Davis company, three-layer simultaneously extruded crosslinking lines, CCV Catenary production lines of Troester Company, Germany, GJB-complied military cable production lines and so on.
Our company pass the certification of ISO 9001: 2000 Quality Systems in 2010. With perfect quality control system, talented technical team, advanced equipment, and our reliable quality, our products gain reputed fame in domestic market and overseas market.
