Outdoor/Indoor Advertising Full Color LED Display Screen Panel Board (P4&P5&P6&P8&P10 Module)
| Price: |
US $ 400-600/Square Meter |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LW-FO 10 |
| Pixel Pitch: |
10 mm |
| Configuration: |
SMD3535 |
| Module Size: |
320X160 mm |
| Cabinet Size: |
960X960 or Other Size |
| Cabinet Weight: |
36kg |
| Brightness: |
up 7000CD/M2 |
| Driver Mode: |
1/2 Scan |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/2 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
ETL |
Product Description
Outdoor / Indoor Full Color LED Display Screen Panel Board for Advertising (P4, P5, P6, P8, P10)Features:○ The material of cabinet can use die-cast or iron or aluminum, can be customized according to customer
requirements ;
○ Using 1/2 scan drive design, the brightness can reach 7000nits ;
○ Outlet and air inlet with waterproof cover, waterproof level higher than the general market products;
○ Uniform color and high contrast ratio,bringing up fresh and natureal image ;
○ Low power consumption and fine heat release ;
○ Super wide viewing angle increasing its value by covering more audience ;
○ No deformation under sunlight by the use of anti-UV modules ;
Parameter:| Items | P5mm | P6mm | P8mm | P10mm | P10mm |
| Pixel | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Configuration | SMD2727 | SMD3535 | SMD3535 | SMD3535 | DIP |
| Pixel Pitch | 5mm | 6mm | 8mm | 10mm | 10mm |
| Pixel Density | 40,000 | 27,777 | 15,625 | 10,000 | 10,000 |
| Module Size(mm) | 160x160 | 192x96or 192x192 | 256x128 | 320x160 | 160x160 |
| Pixels/Module | 32x32 | 32x16 or 32x32 | 32x16 | 32x16 | 16x16 |
| Cabinet Size(mm) | 960x960 | 960x960 | 1024x1024 | 960x960 | 960x960 |
| Pixels/Cabinet | 192x192 | 160x160 | 128x128 | 96x96 | 96x96 |
| Cabinet Weight | 36KG | 36KG | 41KG | 36KG | 36KG |
| Brightness | >5500cd/ | >6000cd/ | >5000cd/ | >7000cd/ | >7000cd/ |
| Viewing Distance | >5m | >6m | >8m | >10m | >10m |
| Power | Max: 1300 | Max: 1300 | Max: 1000 | Max: 1000 | Max: 1000 |
| Consumption(W/) | Ave: 300 | Ave: 260 | Ave: 260 | Ave: 300 | Ave: 300 |
| Driver Mode | 1/8 scan | 1/4 scan or 1/8 | 1/4 scan or 1/8 | 1/2 scan | 1/4 scan |
| Viewing Angle | H: 120°; V: 120° | |
| Cabinet Material | Cold Rolled Steel or aluminium |
| Refresh Rate | 300-3000HZ adjustable |
| LED Life | 100,000 hours |
| Supply Voltage | AC220V/50HZ; AC110V/60HZ |
| Operating Temperature | -20ºC ~ +50ºC |
| Operating Humidity | 10% - 90% |
| Gray Scale | Red, Green and Blue each 16K |
| Display Color | 4096 Billion |
| IP Rating | Front IP65 |
| Display Capability | Text, Graph and Video |
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
Our Services:Pre-sales support:1. We offered technical advice to you before buying our products.2. Help you to choose suitable products within budget with most economy benefit.3. Design the framework structure to install our led products with technical drawing.4. We offered software customization for our your specific usage. After- sales service:1. We promise you more than just two years warranty service!2.We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for you.3. We promise a life time follow-up service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.4. We offered training to our customer who includes operating and maintenance of our products.Applications:| Business Organizations | super market, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc. |
| Financial Organizations | banks, security company, insurance company, post office, hospital, school, etc. |
| Public Places | subway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc. |
| Entertainments | movie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc. |

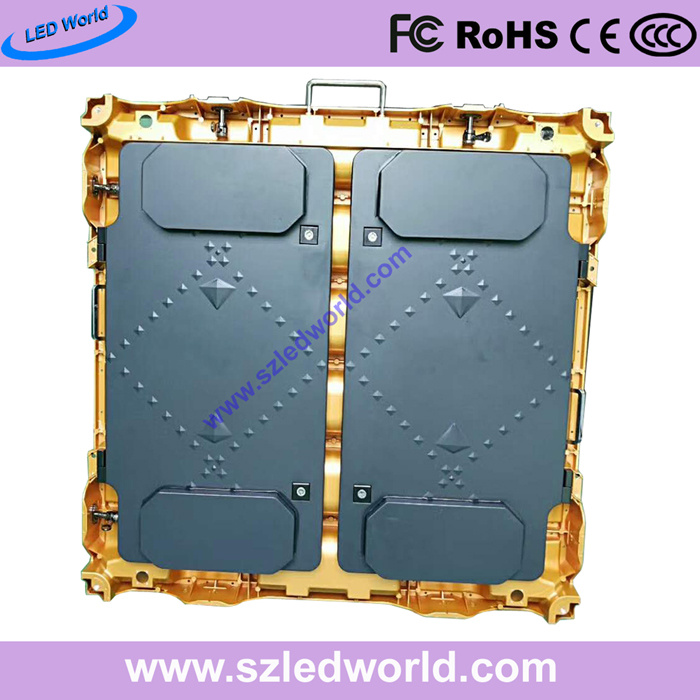

Product detail:

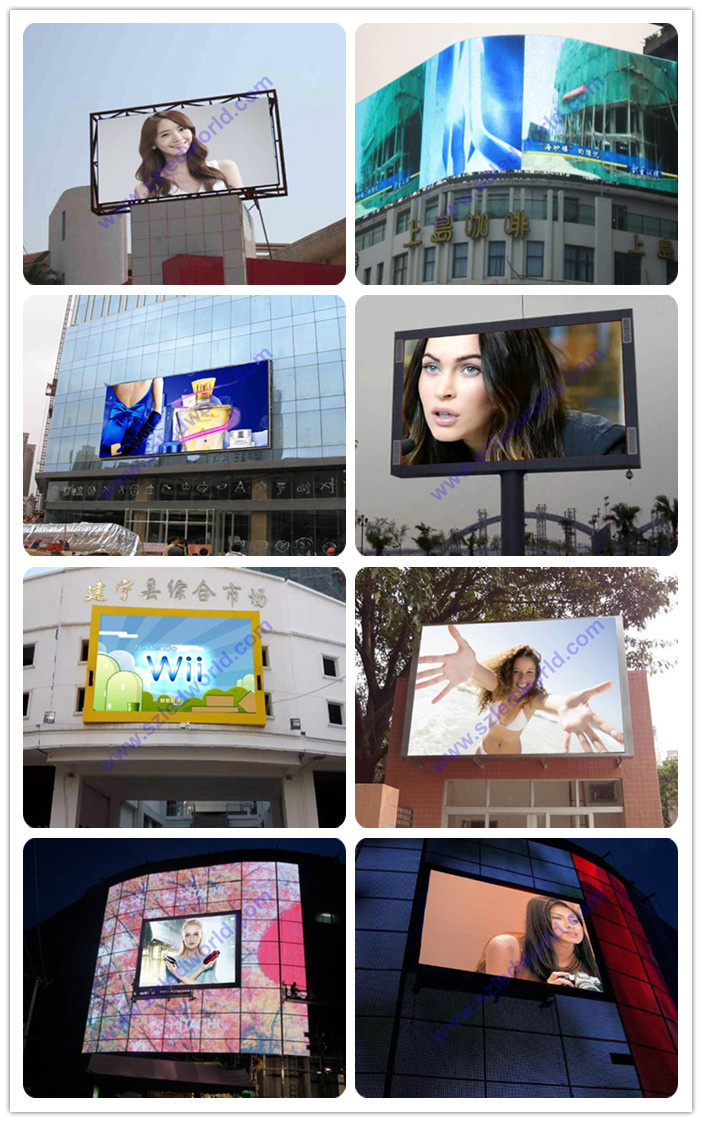

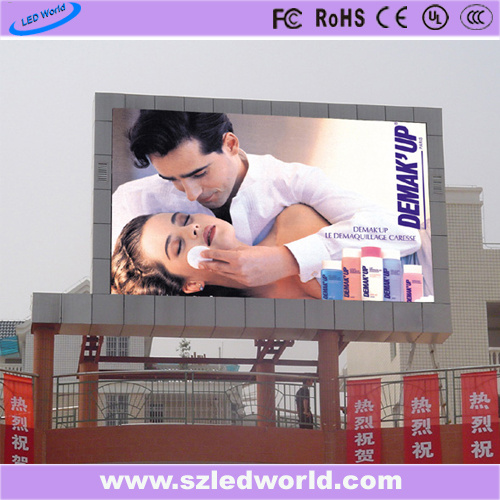

project case:

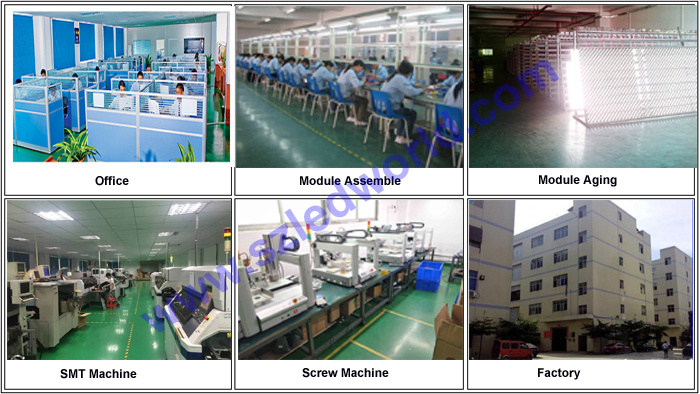

Our company:Shenzhen LED World CO.,LTD was founded in 2009, focusing on the LED technology research and LED full color display production ,sales and engineering services for the integration of private high-tech enterprises. The company has professional production equipment and excellent technology,industry veteran,high-quality,high standards of moden management team ,a high level of professional and technical developer,has many years of operating experience and well-trained, a significant number of skilled workers.Company strict implementation of 7 S management standard professional management standards , has passed 3C,CE,FCC,RoHS,ISO9001-2009 quality system certification,reliable quality ,advanced technology,automation of form a complete set of products and continuous development of our roots . products are exported to USA, Mexico, Greece, Spain, Italy, UK, Uganda, Nigeria, Russia, India, Turkey, Thailand ,Vietnam, Brazil, Australia etc more than 20 countries and regions, and gained good reputation form the clients.workshop:
Safe package:
Trade term:Warranty time: 2years;
Delivery time: 10-25 working days;
Payment: T,T / West Union;
Transportation: By sea or air or Express;Certification:
FAQ:1. May I know the Minimum order for your products?
For our products, no limit for the size of the screen, but generally speaking, one screen the dots more than 50000 dots will be clear for the audience to see the video on the screen.
2. What's the difference between DIP(1R1G1B) and sSMD(One LED, 3 in 1) ?
SMD(One LED, 3 in 1) LED Display, one pixel has one LED lamp, 3 led chips in one LED Lamp;
Traditional DIP( 1R1G1B) use 3 LED Lamp in one pixel.
SMD(One LED), reduced the LED on the screens,it reduced grainy of the screen, and improve the uniform of the screen, this will make the screen have a more wide viewing angle and smooth image. With the technology advanced and SMD brightness improved, SMD is more and more used outdoor.
3. How long can I get the cargos?
Our production time is about 10-25 working days.
When we confirmed the order, we can start production after receiving your deposit (40% TT in advance).
we will update the production details in time.
we will notice you before finish and after delivery the goods to you after we get full payment.
About the time from start port to destination, it depends on the distance and the state of the forwarder.
4. May I know the package details?
For fixed installation, we use veneer case, usually 4 cabinets in 1 veneer case;
For rental market, we suggest you use flight case, generally 8 cabinets in one flight case.
It's safe to protect the screen on the way, also economical.
5. Besides this product, may I have other options?
Yes, my dear friend. Many thanks for finish the details of this product. If it is not what you're looking for, you can also choose other items. we have HD indoor led display, full color for outdoor and indoor; Different cabinet, Steel Cabinet, Aluminum Cabinet, Die Cast Aluminum Cabinet, etc; The pixel pitch is from 1.5mm to 20mm. We also have LED advertising player and kinds of video processor.
