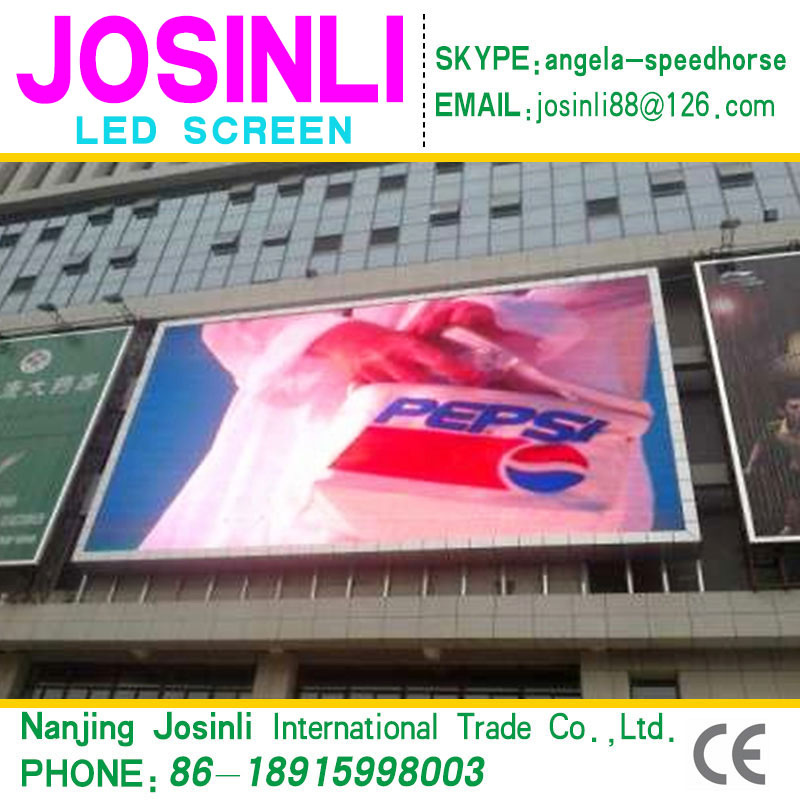

Outdoor LED Video Screen for Wall Building
| Price: |
US $ 300-1200/Square Meter |
| Min Order: |
1/Square Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
P8 |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Average Power Consumption: |
350W / m² |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Certification: |
RoHS |
| Pixel Density: |
27777DOT |
| Application: |
Advertising/Billboard |
Product Description
LED Display Specification| The specifications of modules |
|
| Items | Parameter |
| Product Model | P8 Full Color Led Module |
| Module size | 256mm*128mm |
| Pixel pitch | 8mm |
| Pixel density | 15625dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 32dots(W)*16dots |
| Module maximum power consumption | 20W |
| Module Weight | 0.4kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/4 scan |
| Interface | HUB75 |
| Brightness | ≥7500cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 1024mm*768mm |
| Module quantity | 24pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 128*96dots |
| Best viewing distance | 8M~60M |
| Optimal viewing angle | 140°(W) 120°(H) |
| RHWorking temperature | (Work :-20°C~+55°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 350W/H |
| Maximum power consumption | ≤760W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥1000HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
Nanjing Josinli International Trade Co., Ltd. is a professional supplier and exporting agent specialized in all kinds thermosetting and thermoplastic powder coating.
Our other main products include LED display screen and boom lift equipments, we are professional and excellent agent in these fields. We are the agent of two famouse brand JLG
And GENIE of boom lift.
The good advantages of this compay are:
Most competitive price; Qualitied and plentiful products; Professional and efficient service. We focus on to be your reliable partner.
We can provide any grade quality powder coatings at best price according to clients' demands, can provide OEM and ODM service to satisfy clients' requests.
Our products include epoxy powder coating, polyester powder coating, epoxy/polyester powder coating, decorating powder coating, polyurethane powder coating, anti-corrosion powder coating and the base color for transfer printing.
These products have no solvent, no pollution; They are convenient for transportation and suitable for electrostatic spraying and automatic pipelining. The sprayed film is of high decoration and anti-corrosion, widely used in household electric appliance, apparatus and instruments, machines
And equipments surface, indoor and outdoor furnatures' surface, fire protection equipment, transport facilities and so on.
Sincerely welcome to our company!
