| Prod Model: |
P10 |
| Pixel Resolution: |
32dots(W)*16dots(H) |
| Module Thickness(mm): |
65 |
| Weight(Kg): |
0.66 |
| Drive Type: |
Constant Drive |
| Brightness Of White Balance: |
2000CD/M² |
| Power Supply: |
5V/40A*1 PCS |
| Best Viewing Distance: |
10m-100m |
| Average Power Consumption: |
≤200 W/M² |
| Life Span: |
≥100000hours |
| Mtbf: |
≥10000hours |
| Tube Chip Color: |
Red |
| Display Function: |
Image & Text Display |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Density: |
10000 dots/m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Dot Matrix Display |
| Certification: |
CCC |
| Pixel Configuration: |
1r/1g/1y/1b/1W |
| System Operating Platform: |
XP/Win7/Win8 |
| Brightness: |
2000 CD/M2 |
Product Description
Outdoor P10 single Colour LED module display screen advertising Text board LED display,also called led screen, led video wall, or led sign, with its unique advantages,has gradually replaced the traditional billboards, light boxes,etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution,high brightness and full color! LED display Advertising screen can easily attract the attention of pedestrians,and also are easy to remember,which can generate greater advertising effectiveness.
Led display screen now are widely applied in media advertising, transportantion,Security,
Real estate and Stage show background.
XIN RUI OUTDOOR SINGLE COLOR LED DISPLAY
Functions and advantagesOne: slim and light , front maintenance, zero maintenance, zero noise.Two: high density , high contrast, high brightness , high ash and high brush. Three: high precision, seamless stitching, wide viewing angle, low power Consumption, high life, the picture is real natural. Four: replace LED mosaic wall and DLP projection splicing products, for customers have listened to information dissemination, brand advertising effects, etc. Aspect of high quality services. Five: applied to monitor the command, advertising, television, senior Frequency conference, cinema, shopping malls, hotels, monopoly and other venues.LED Screen Modules Display Specification:
Parameter NO. | Semi-outdoor P10 Single Color | Outdoor P10 Single Color | Semi-outdoor P10 Double Colors | Outdoor P10 Double Colors |
| Size of Board(mm) | 320*160 |
| Pixel Pitch(mm) | 10 |
| Pixel Configuration | 1R/1G/1B/1W/1Y | 1R+1G/ 1R+1B |
| Pixel Density (dots/m2) | 10000 |
| Driver Chip | Constant current Driving |
| Brightness of Board (cd/m2) | ≥1500/1800/1600/1600/1600 | ≥2500 | ≥3000 |
| Board maximum power consumption(W) | ≤20/17/17/20/17 | ≤20/17/25/17/17 | ≤20.5 | ≤35 |
| Process Potting | No | Yes | No | Yes |
| Waterproof Pan | No | Yes | No | Yes |
| Viewing Angle(Horizontal/Vertical) |
H100 Degree/V40 Degree |
| LED Encapsulation way | 546 /448 Oval |
| Resolution of Board (dots) | 32*16 |
| Thickness of Board(mm) | 13 | 25 | 13 | 25 |
| Weight of Board(Kg) | 0.4±0.05
| 0.66±0.05 | 0.4±0.05
| 0.73±0.05 |
| Scanning Control Method (S) | 1/4 |
| Configuration Adapter Board | Hub 12 |
| Using Environment of Board | Semi-outdoor | Outdoor | Semi-outdoor | Outdoor |
| Design Feature | Lamp Driving in-one |

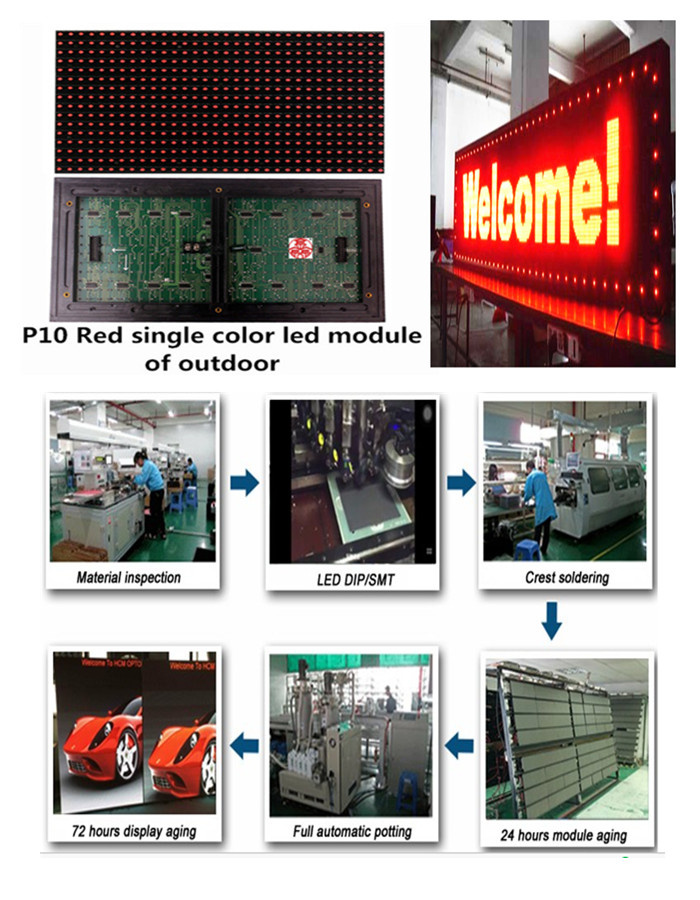

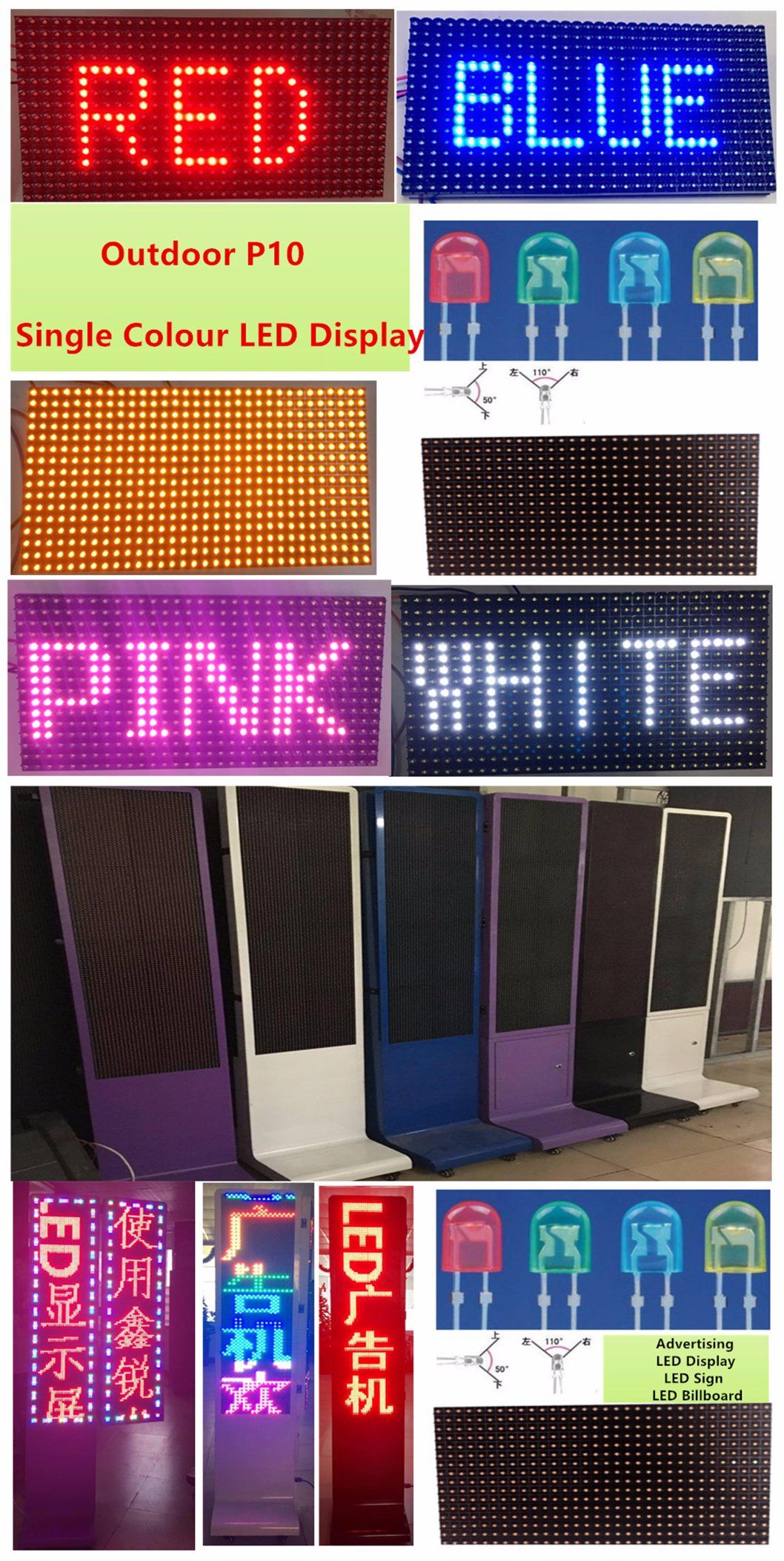

LED Screen Modules Display Details
Our FactoryQuanzhou Xinrui Optoelectronics Technology Co., Ltd. is a company who engages in researching & development, production, sales of high-tech Led screens. We own the independent developing design and utility model patent, the products has passed the multi authentication. Our main products are outdoor & indoor full color LED screen, Led unit board, indoor LED bare-board, outdoor LED screen cabinet, module, interest & exchange rate screen, line-screen, electronic industry billboard, Led nixie tube screen, stage screen, various type of frames, powers and accessories etc.Our Service:1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.Product Certificate:
Packing and Shipping:1. Package:Flight case/ Anti-shaking wooden case/Carton box.
2. Leadtime: 15-25 days normally.
3. Shipping term: 25-35 Days by sea/7-10 Days by air/3-5 Days by express.
Exhibition:
Q1: What's the warranty of your LED Display Screen ?A1: We have a 1-year warranty for our led display screen, and 100,000 hours life span of the led lamps.Q2: What about your pre-sale service and post-sale service?A2: For pre-sale service: We have a professional sales team and a 6 years technical team who are willing to answer your question 24/7. We can offer a whole complete solution for your project! For post-sale service: We can instruct you how to use, adjust the screens, and change the boken modules with spare parts.Also, we can send technicals to your country to solve problems. Mostly, our led display will not have big problems within warranty time! Q3: Whats your payment term? How long it takes to delivery? A3: We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery. Our average Production time is 16 days, after receiving the deposit. Q4: What's the control system?A4: For synchronization control: We use Nova, Linsn Or Colorlight control system.For asynchronous control: We use Onbon, or Xixun control system.Contact Detail:
