Outdoor Transparent LED Display for Advertising Billboard

Outdoor Transparent LED Display for Advertising Billboard
Price: US $ 1000-1200/Square Meter
Min Order: 1/Square Meter
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: P15.625
Tube Chip Color: Full Color
Pixel Pitch: 16mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Scanning Mode: 1/4 Scan
Display Type: LED Video Display
Application: Advertising
Certification: 14001
IP Rating: IP66
Average Power Consumption: 400
Pixel Density: 4096

Product Description

P16 Outdoor led display for advertising

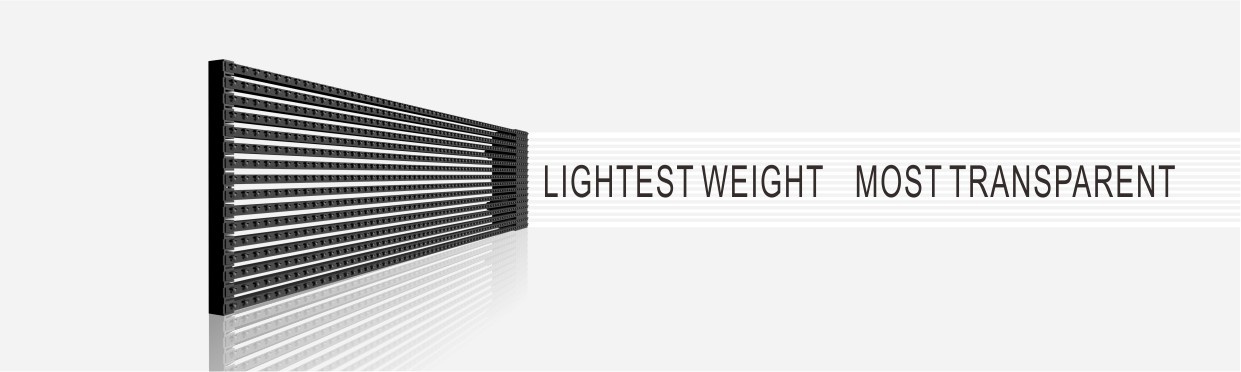

The ultimate light weight and mimalist structure.
Transparent design makes the fantasy effect.
Waterproof and windproof

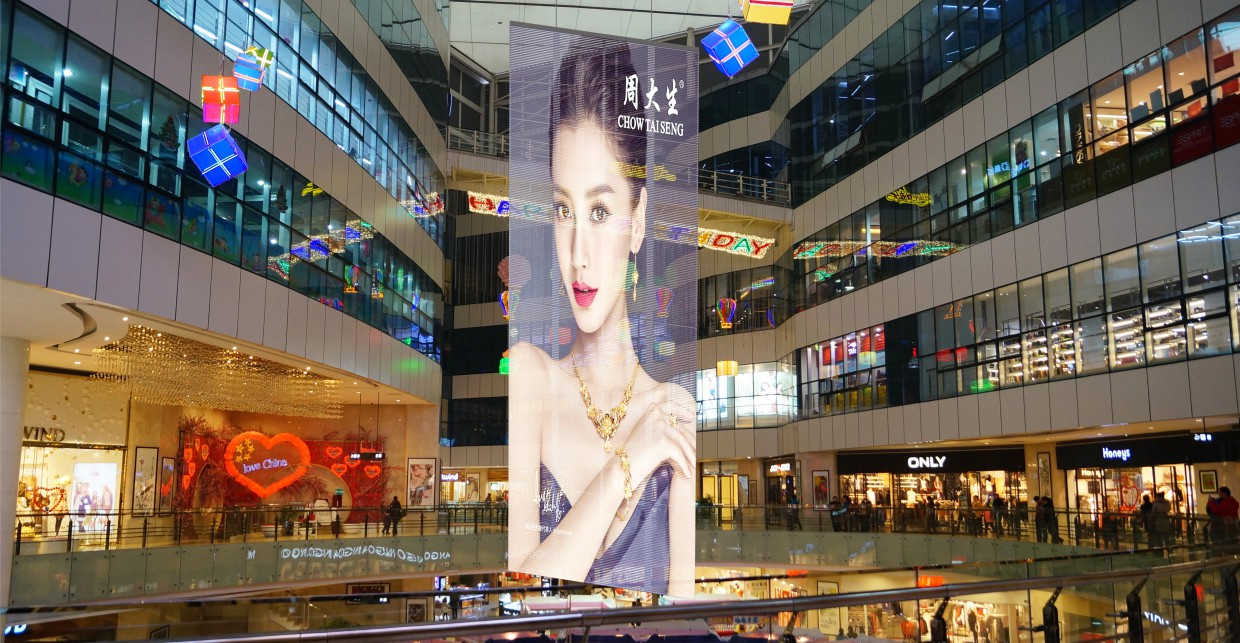

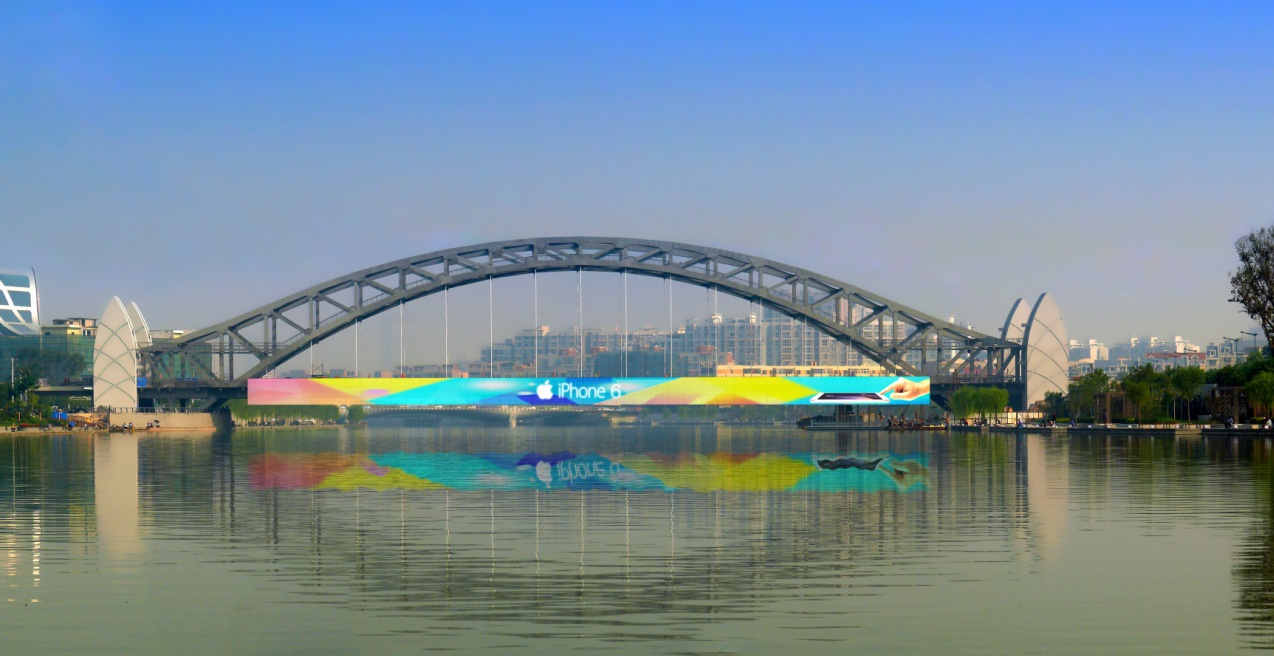

Applications



Parameters

1,LED Parameter
  LED Type    Encapsulation typeWavelength          Brightness
  DIP3in1          570R:625-630nm        550-700mcd
G:515-520nm        1800-2600mcd
B:465-470nm        300-500mcd
2,LED Unit Cabinet Parameter

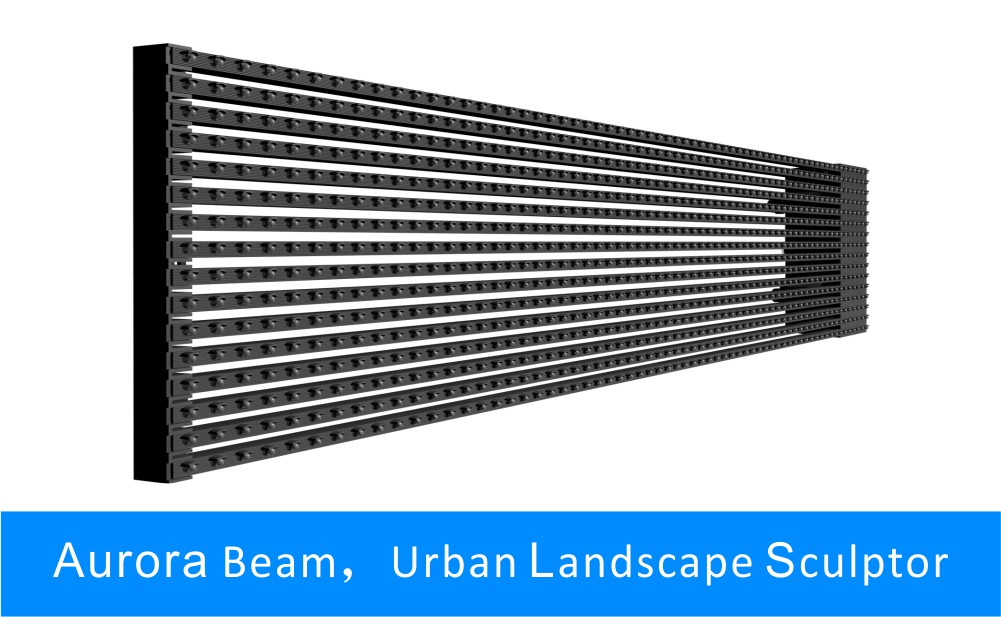

Aurora BeamP15.625
Pixels Configuration1Dot/Pixels

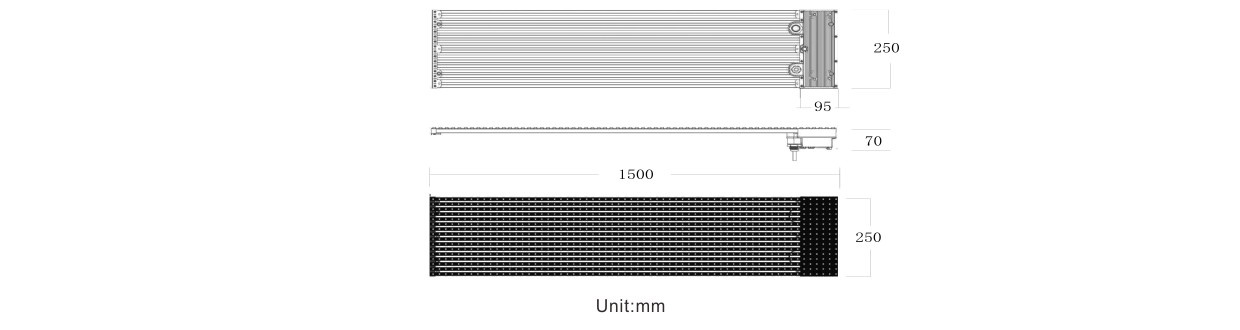

Module Size1500*250mm
Pixel Pitch15.625mm
Pixels Density4096Dots/m2
Module Resolution96*16Dots
Transparent Rate≥45%
Brightness≥7000CD/m2
Weight18Kg/m2
Max Power Consumption400W/m2
Lightbar ArrangementHorizontal and vertical
Visual AngleH120°V60°
Protection GradeIP66
3,System Parameters
Color Temperature4500-25000K adjustable
Operating PowerAC100-240V 50-60HZ
Continuous Working Time≥72 Hours
MTBF≥10000 Hours
Pixels Out of Control Rate<1/10000(Industry standard)
Using Ambient Temperature-40ºC∽+80ºC
Humidity10ºC∽95ºC
Gray Scale14-16 Bit
Frame Rate≥60H
Refresh Rate≥3000Hz
CalibrationSupport point by point correction

Trade terms

1.-- Lead time: 20-25 days after receipt of deposit
2.--Delivery: FOB Shenzhen, China
3.--Transportation: by sea, by air or by express
4.--Payment Term: 30% deposit, balance before shipment


Our Service


1--.We will respond within 24 hours when receive your inquiry.
2--.Led screen products have 2years warranty.
3.--
The size can be changed as you give. What we show is some of our current models, welcome to give us your own ideas.
4.--After sales service: Any installation and debugging problem will  get the best supports from us.
5.--
Top Quality + Reasonable Price + Responsible After Service





Established in 2006 and started as LED diode capsulation facstory, Kingaurora became a leader of glass LED display and LED mesh display manufacturing and can offer all kinds of main stream LED displays including glass LED displays, outdoor full color LED mesh displays, outdoor LED strips, indoor and outdoor rental LED displays and others.

Having been fast developing, Kingaurora was listed as a public company in China stock market since the beginning of 2017. Our advanges including strrong R&D ability with over 15 appearance patents and utility model patents.

Kingaurora is the inventor of outdoor DIP 3 in 1 full color LED diodes. R/G/B chips are packed into the same LED diode, featuring simpler structurer, higher brightness, lighter weight and lower cost compared with tradtional LED pixels, full color of which must consist of 3 or 4 separtate LED lamps. Now patent outdoor 3 in 1 LED diodes are widely used in Kingaurora outdoor LED strips, outdoor mesh LED displays. The production of Kingaurora packing factory reaches 1500KK 3 in 1 LED diodes per month.

Kingaurora also supplies other various kinds of high quality LED displays including small pixel LED displays, indoor and outdoor full color rental LED display with own private molds at favorable prices. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Contact us today to see what kind of new service and products we can bring to you!
