| Prod Model: |
SY-P10-4S-SMD |
| Warranty: |
Two Years Warranty After Shipping |
| Powre Supply: |
G-Energy or Meanwell |
| Control System: |
Linsn or Novastar |
| Panel Size: |
960mm X 960mm |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
FCC |
| Average Power Consumption: |
450W/M2 |
Product Description

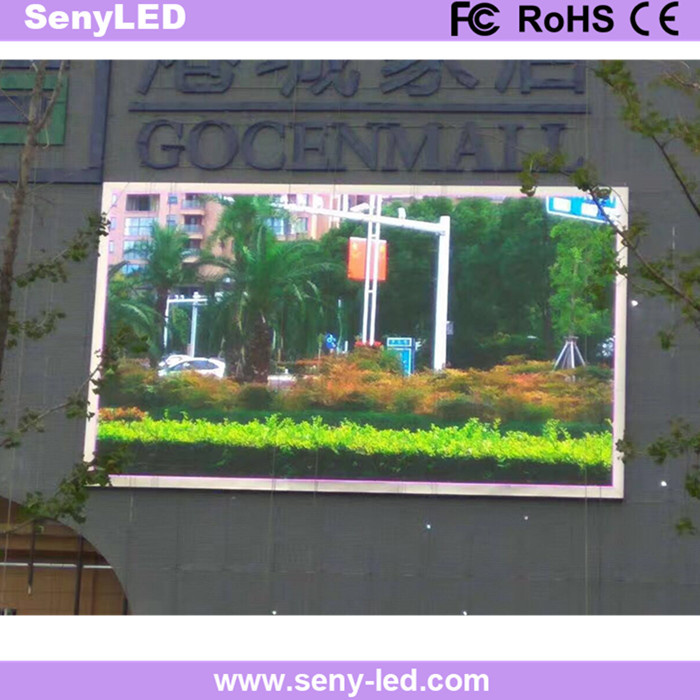

Outside Building Advertising Display Panel Video LED Wall
Product details:
1. High brightness and adjustable the need of the changing requirement of customer in environment;
2. Having good lightening accordance and no mosaic;
3. Using SMD3in1, better viewing effect and better color contrast;
4. Having larger viewing angle: Horizontal angle 140 degree/elevation angle 70 degree. Getting vivid effect within any position of the viewing range.
| Outside Building Advertising Display Panel Video LED Wall |
| S/N | Item | Technical Parameters |
| LED Parameters |
| 1 | Item Name | LED Type | Brightness | Wave Length | H/V Visual Angle |
| 2 | Red LED | 3535SMD | 600-800mcd | 620-625nm | 140º/120º |
| 3 | Green LED | 3535SMD | 1800-2000mcd | 520-525nm | 140º/120º |
| 4 | Blue LED | 3535SMD | 400-600mcd | 470-475nm | 140º/120º |
| Module Specification |
| 1 | Pixel Pitch | 10mm |
| 2 | Pixel Configuration | 1R1G1B |
| 3 | Module Resolution | 32 x 16 pixels |
| 4 | Module Pixles | 512 pixels |
| 5 | Module Size | 320mm X 160mm |
| Cabinet Specification |
| 1 | Cabinet Size(W X H X D) | 960mm x 960mm x 142mm |
| 2 | Cabinet Resolution(dot) | 96 x 96 pixels |
| 3 | Module Quanity (pcs) | 18pcs |
| 4 | Cabinet Pixels | 9216 pixels |
| 5 | Pixel Density | 10000 pixels/m2 |
| 6 | Cabinet Materials | Standard outdoor iron cabinet for fix application |
| Whole Screen Specification |
| 1 | Screen Brightness | ≥6000cd/m2 |
| 2 | Driving Method | 1/4 scan |
| 3 | Best Viewing Distance | 10m - 150m |
| 4 | Max. Power Consumption | ≤750W/m2 |
| 5 | Average Power Consumption | ≤300W/m2 |
| 6 | Gray Level | 8bits input, 4096 levels(212) |
| 7 | Display Color | 16M |
| 8 | Frame Frequency | ≥60Hz |
| 9 | Refresh Frequency | ≥1000Hz |
| 10 | Uninterrupted Working Hours | ≥72 hours |
| 11 | Screen Life-span | ≥100,000 hours |
| 12 | MTBF | ≥5,000 hours |
| 13 | Discrete Blind Spot Rate | <1/10000 |
| 14 | Continuous Blind Spot Rate | None |
| 15 | Blind Spot Rate | <1/10000 |
| 16 | Protective Scale | IP65 |
| 17 | Screen Plainness | <±1mm |
| 18 | Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
| 19 | Working Temperature | Temperature: 0 Celsius~+40 Celsius |
| 20 | Storage Temperature | Temperature: -30 Celsius~+50 Celsius |
| 21 | Humidity | Humidity:10%~90% RH |
| 22 | Control Mode | Synchronous display with control PC by DVI |
| 23 | Control System | Linsn, Novastar or as you required. |
| 24 | Display Content | Video, DVD, VCD, TV, picture, cartoon, graphics, texts.etc. |
| 25 | Interface | Standard Ethernet |
| 26 | Transmission Distance | Multi mode fiber <500m, single mode fiber <30km,internet cable <100m |
| 27 | Certificate | CE, ROHS, FCC |
Our service
1. Your inquiry about our products or price will be replied in 24hrs
2. OEM&ODM, any of your customized requirement we can help to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality + Reasonable price + Responsible After Service=Successful & Win-Win
6. SENY can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Shenzhen Seny Technology Co., Ltd. is a manufacturer which have leading technologies in LED display solutions. SENY was established in Shenzhen since 2009, with a factory area of 3, 000 square meters, office staffs over 100 members. At the end of 2015, the production capability reach up to 6000sq. M per month.
SENY focuses on the development of optoelectronic industry. We take producing cost-effective products and providing impeccable service as enterprise mission. Becoming top manufacturer in LED industry field as strategy goal, developing a new type of green and energy saving and emission reduction products as design ideas; We adhere to the principles of Service First, all customer-centric, developing high quality and stable LED series products, offering comprehensive solution and service. SENY produce all kind of indoor, street landscape lights. Outdoor and indoor LED display products can meet the need of advertisement and media, traffic, stage, sports, rent, municipal administration, telecom, military information area.
Stable-quality is the base that makes us survive, high quality products and sale performance is the supporter that drives us moving, innovation and invention is the guarantee that makes the product competitively, talent is a big power that pushes the company become stronger and bigger. We follow the management philosophy idea of "people-oriented", talent is a huge source in the company's development, and also the scientific management ideas on design and product, we have created systematic and professional process. Widely using automatic machine production line, it is one of the companies which is the most automated stage of production and have completely equipment and facilities. Our products have passed International Environmental Certification of RoHS, CE, and FCC. That makes the production internationalized. Our products have been sold to more than 120 countries and areas in the world.
With the enterprise vision of being enrich humans' vision and showing the splendor of the world, we make LED products no longer as luxury with advanced technology and experience in developing LED Series products, and make the big-volume standard production comes true, and the environmental friendly and long-life, energy-saving LED series come to our life adequately.
In order to deal with the challenge of global warming, SENY has developed an energy-saving IC in advance for green, energy-saving and emission reduction plan; Energy-saving series of LED display products can save above 45% energy than the traditional ones, it saves a lot of energy and make an important contribution in reducing carbon emissions. Following the life ideas with low carbon environmental protection, we pursue in gaining a new growth point of economic benefit; Then promoting to realize the harmonious development of the society progress, environmental protection and economic growth.
Wishing we can build up long-term and reliable business relationship in near future. Contact us today for more information!
