Outsole Belt Flexing Testing Machine/Equipmnet (GW-004)
| Price: |
US $ 800-3700/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
GW-004 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Packaging: |
Wooden Case |
| Export Markets: |
Global |
| Model No: |
Gw-004 |
| Cloth Tape Size: |
1930+/-50mm,140+/-5mm |
| Sampling: |
Max. 6 PCS |
| Cloth Tape Speed: |
90 Cycles/Min |
| Large Central Wheel Diameter: |
225mm |
| Small Central Wheel Diameter: |
60mm,90mm,120mm |
| Dimension: |
110*56*62cm |
| Power: |
AC 220V,50Hz |
| Type: |
Bending Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
| Maxcapacity: |
Outsole Belt Flexing Testing Machine |
| Oil Cylinder Position: |
Electric Control |
Product Description

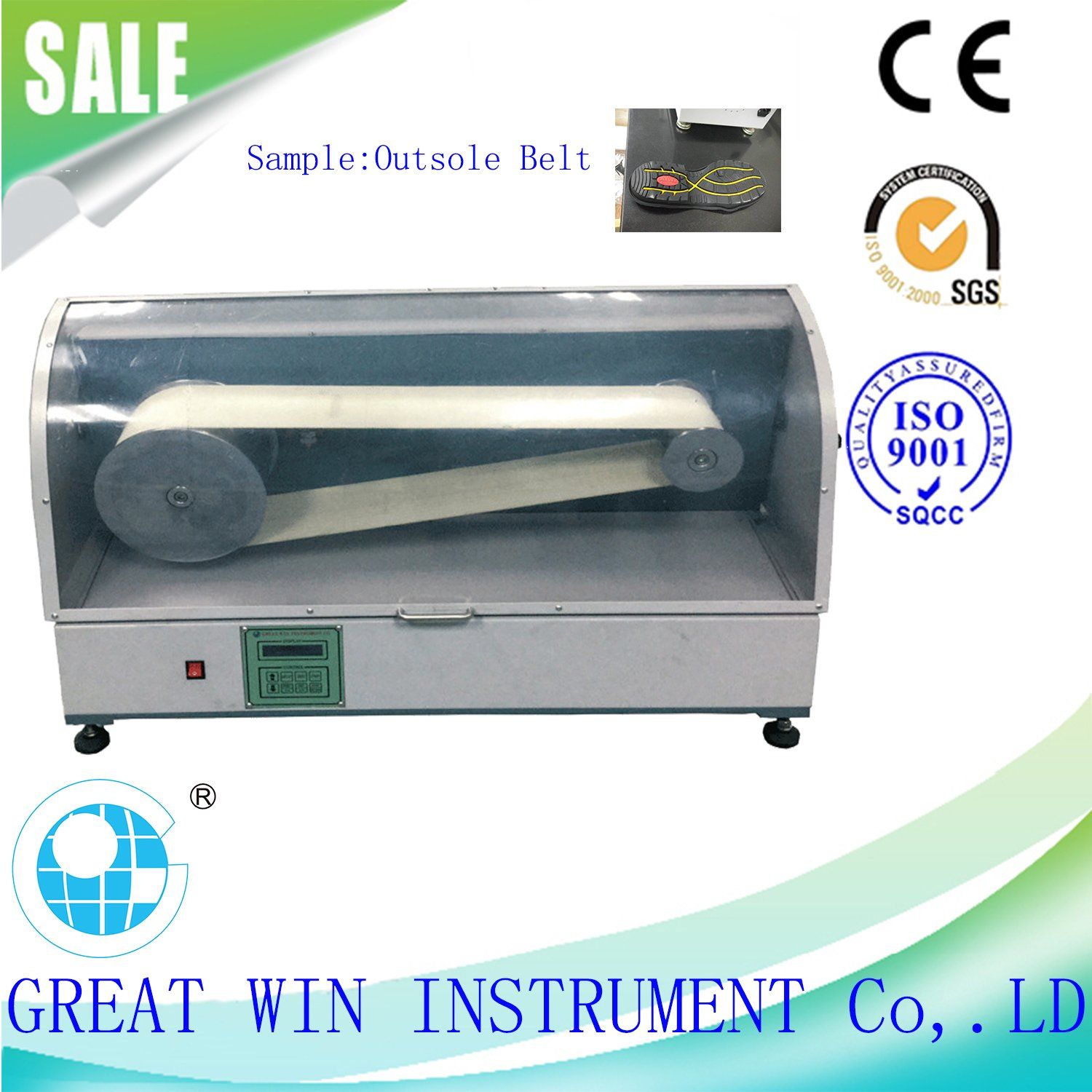

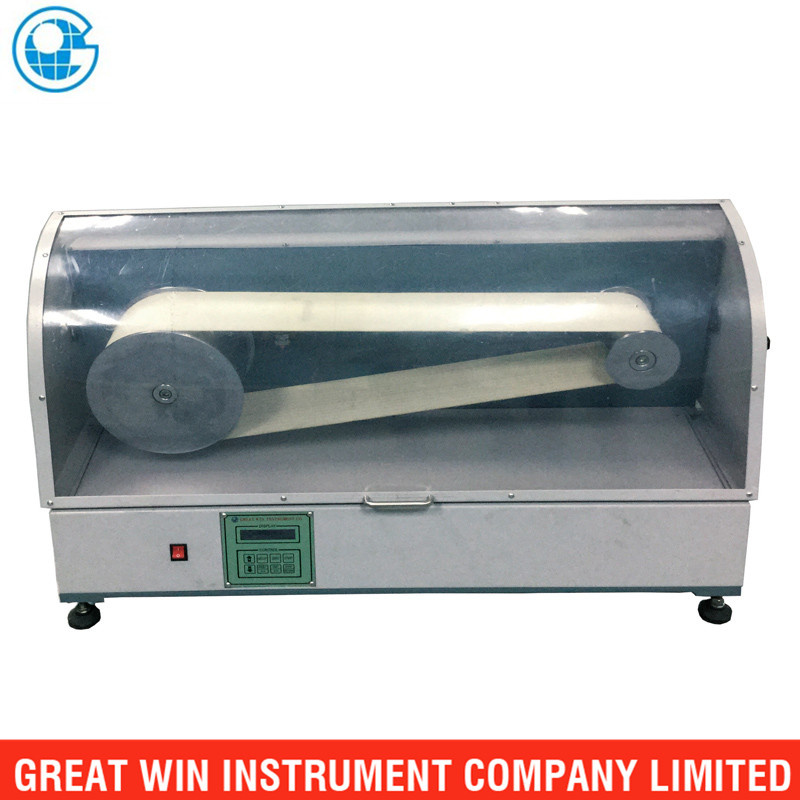

Outsole belt flexing testing machine/equipmnet( GW-004)
| Cloth tape size: | Length: 1930 ±50mm, width: 140 ±5mm; |
| Sampling: | max.6pcs; |
| Cloth tape speed: | 90cycles/min; |
| Large central wheel diameter: | φ225mm; |
| Small central wheel diameter: | φ60mm,φ90mm,φ120mm; |
| Dimension: | 110*56*62cm; |
| Weight: | 170kg; |
| Power: | AC220V,3A |
Brief introduction:

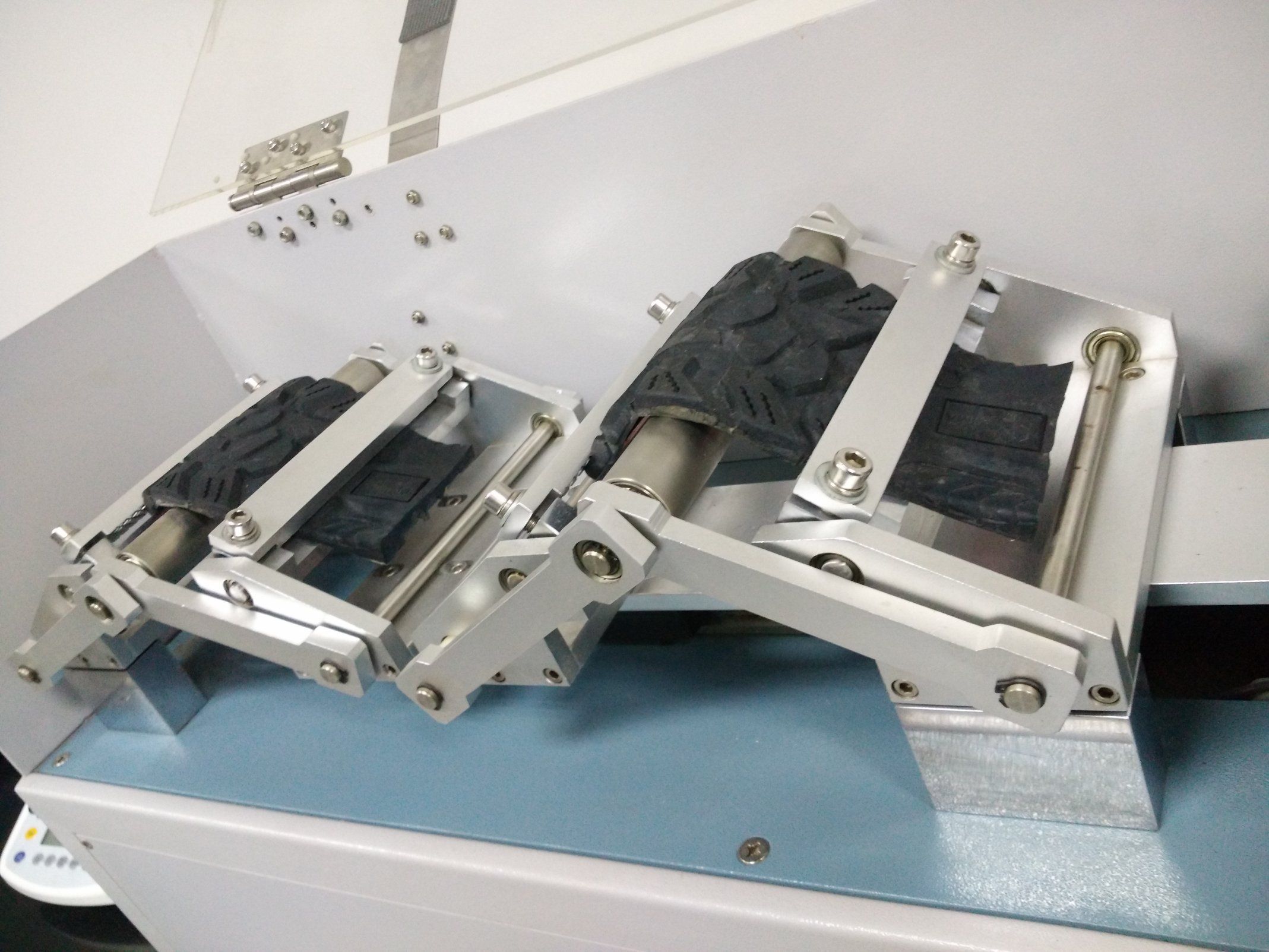

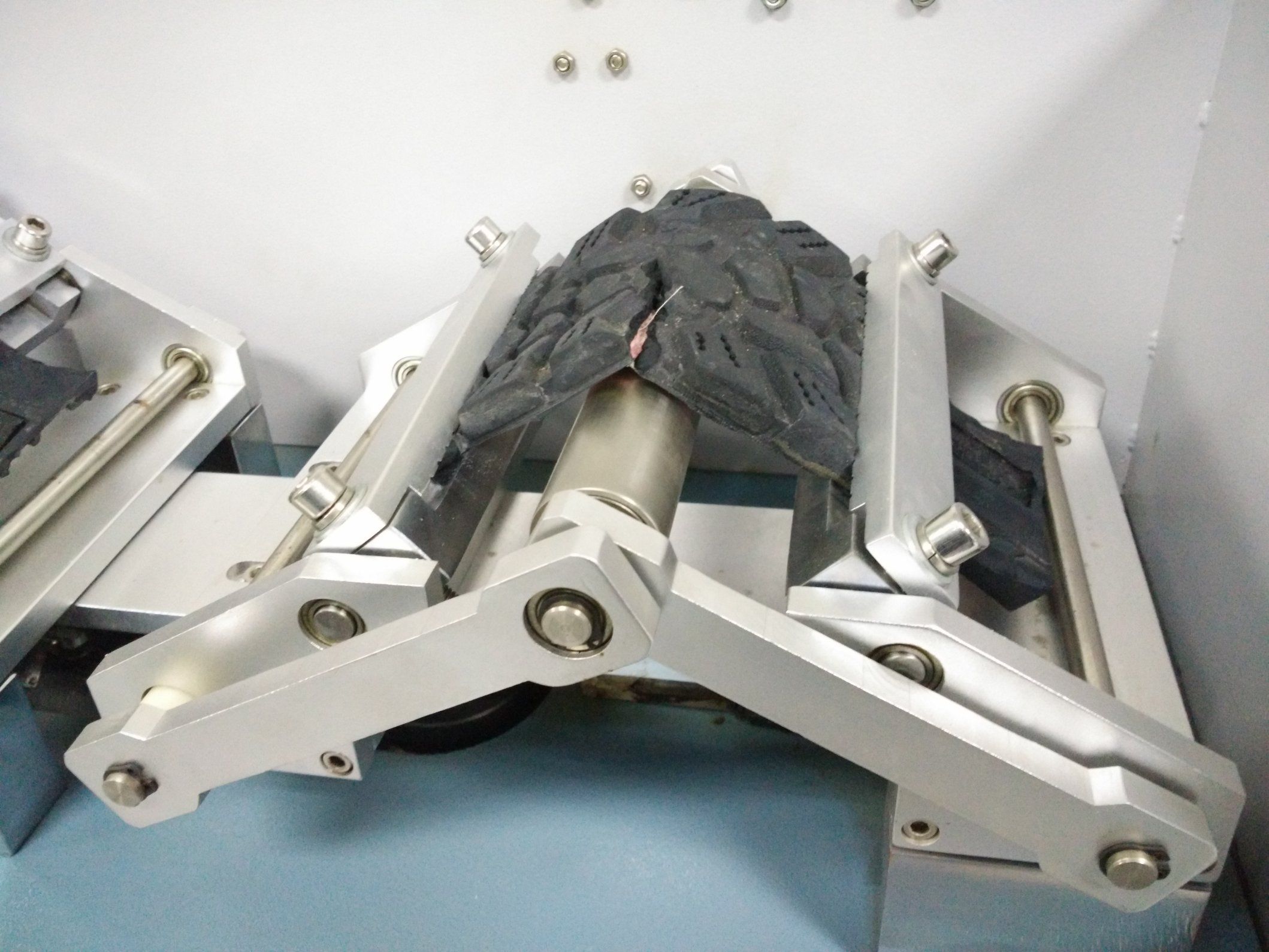

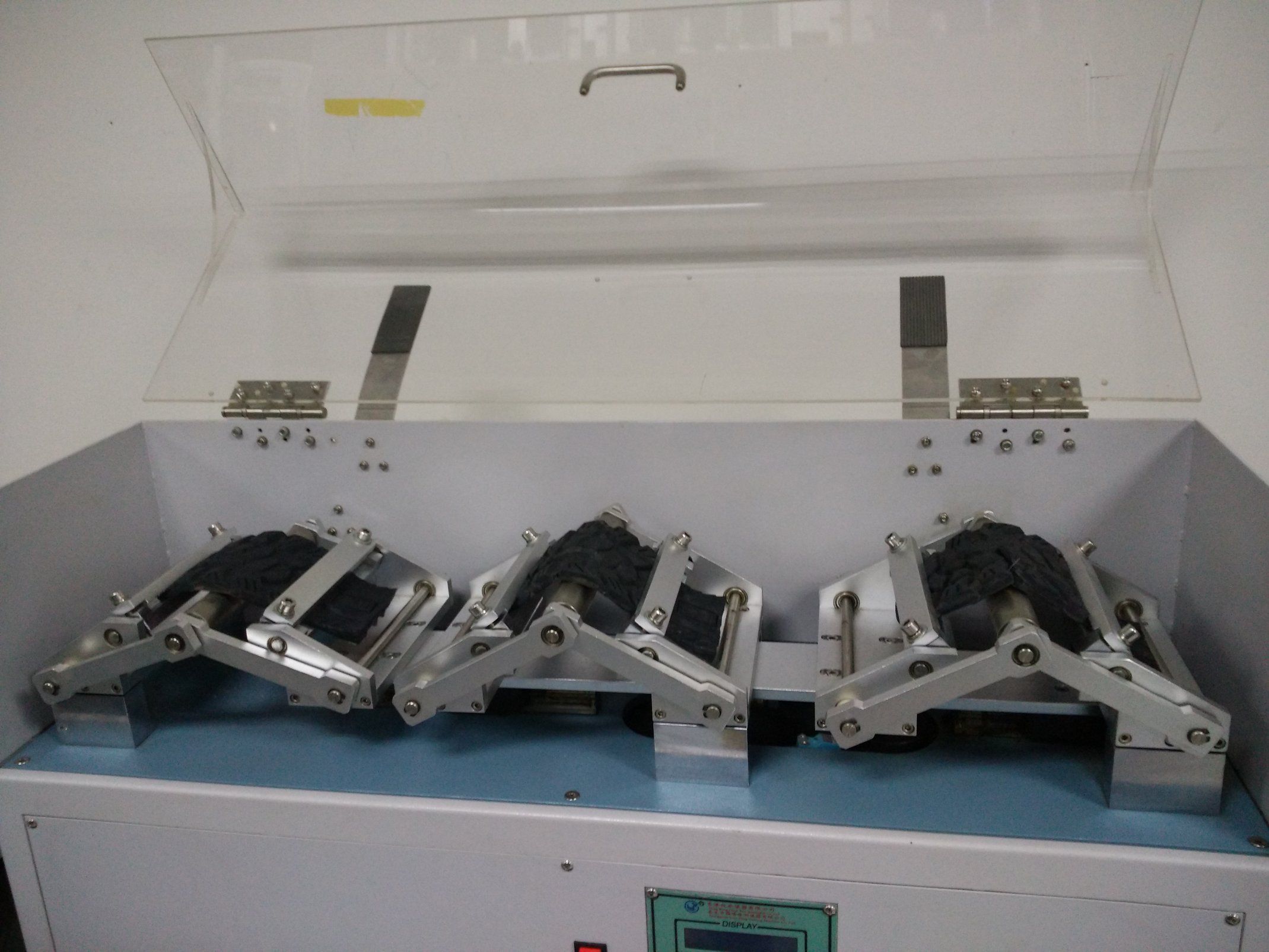

This machine proves one of the best indications of cracking of shoe due to flexing in wear. The sole forepart is attached to an endless belt which passes around two pulleys, the large one provides the rotation whilst the small one determines the severity of the flexing action. It is supplied with three small pulleys of varing diameters to increase or decrease the amount of flexing.
Standard for :SATRA TM133
Attached accessories:2pcs cloth tapes
1pc hex wrench
