| Prod Model: |
Hydraulic Cable Puller |
| Maximum Pull Force (Kn): |
40 |
| Continuous Pull Force (Kn): |
35 |
| Maximum Speed (Km/H): |
5 |
| Bull Wheel Grooves Number: |
7 |
| Engine Power /Speed (Kw/Rpm): |
60/2000 |
| Weight (Kg): |
2500 |
Product Description
Introduction of Overhead Power Line Conductor Tension Stringing Equipment Hydraulic Cable Puller
Engine of Overhead Power Line Conductor Tension Stringing Equipment Hydraulic Cable Puller adopted Cummins (DONGFENG) water cooled diesel engine.
Main variable pump and main motor: Rexroth (BOSCH)
Reducer: RR (Italian)
Main hydraulic valve: Rexroth (BOSCH)
Feature of Overhead Power Line Conductor Tension Stringing Equipment Hydraulic Cable Puller
Infinitely variable speed and pull force control, the pull in the rope can be read on the line pull gauge.
The max pull for conductor -stringing operation can preset, automatic overload protection system.
Spring applied -hydraulic release brake acts automatically in case of hydraulic failure ensure to safety.
Attached reel winder with automatically level wind, load and unload conveniently.
Parameter of Overhead Power Line Conductor Tension Stringing Equipment Hydraulic Cable Puller
| Maximum pull force (kN) | 40 |
| Continuous pull force (kN) | 35 |
| Maximum speed (km/h) | 5 |
| Bull wheel bottom of groove diameter(mm) | Φ400 |
| Bull wheel grooves number | 7 |
| Maximum suitable steel rope diameter (mm) | Φ16 |
| Maximum through connector diameter (mm) | Φ50 |
| Engine power /speed (kW/rpm) | 60/2000 |
| Dimensions (mm) | 3500x2000x2300 |
| Weight (kg) | 2500 |

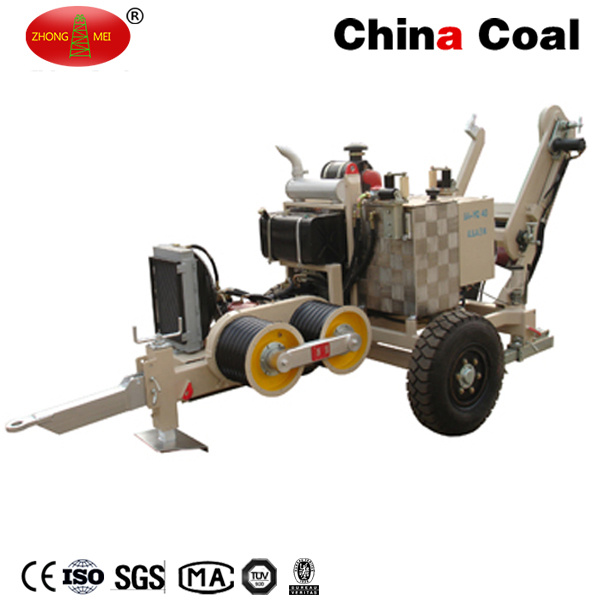

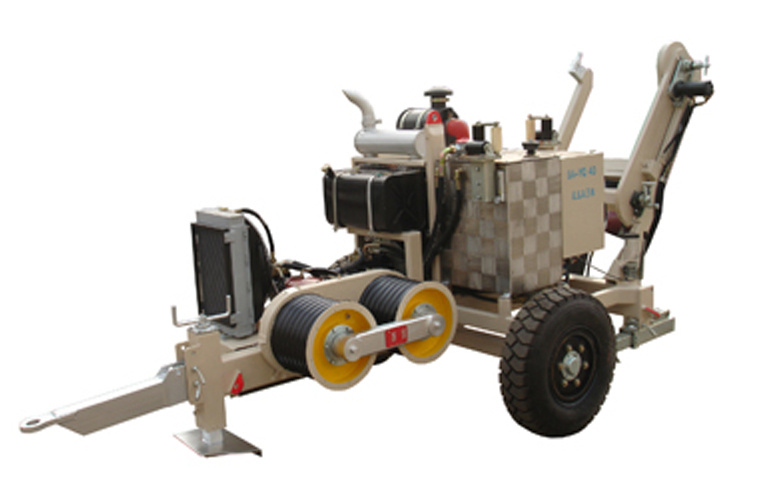

Images of Overhead Power Line Conductor Tension Stringing Equipment Hydraulic Cable Puller
