| Prod Model: |
OWC 511 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Owc 511 |
| Weight: |
2g |
| Inside Diameter: |
5mm |
| Outsde Diameter: |
11mm |
| Height: |
5.4mm |
| Driving Torgue (N.M): |
5.2 |
| OEM: |
Accept |
| Delivery: |
in Stocks |
Product Description

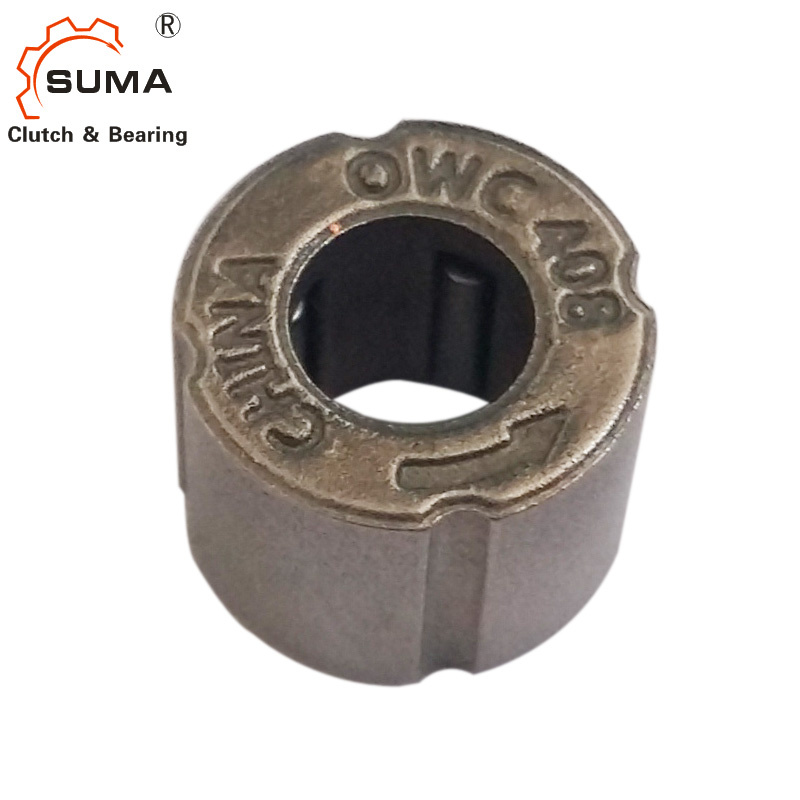

Owc 511 One Way Needle Bearing for Currency Counting Machine
Product DescriptionOWC is a one way needle clutch which applied flexibly of the technology of small bearings ,and
make the structure more compact as well as higher performance.
MATERIAL:The outer ring of OWC one-way clutch is made by sintered metal, and the spring is made by stainless steel . As the basic part of the clutch does not use resin , it is hard to be affected by
external environment.
CHARACTERISTIC:1.The structure is all metal ,which gives full play to the excellent heat resistant characteristic.
2.Short in diameter and thin in depth ,which makes the miniaturization of machine become
possible.
3.Two standard : clockwise (R type) and anticlockwise (L type)
4.Because of the protection of protective layer, it can provide the performance of single functional
components.
5.The gears and pulleys (made by resin) are easily pushed ,which makes it easily to assemble.
Different Sizes for Your Reference
Shaft Dia.
mm | Model | Weight | Size (mm) | Driving Torque |
| g | Inner Dia. | Outer Dia. | Height | ( Nm ) |
| 4 | OWC 410 | 1.8 | 4 | 10 | 5.4 | 2.8 |
| 5 | OWC 511 | 2 | 5 | 11 | 5.4 | 3.5 |
| 6 | OWC 612 | 2.3 | 6 | 12 | 5.4 | 5.2 |
| 8 | OWC 814 | 2.8 | 8 | 14 | 5.4 | 6.1 |
| 10 | OWC 1016 | 3 | 10 | 16 | 5.4 | 9.5 |
| 4 | OWC 406 | 1.6 | 4 | 8 | 6 | 2.5 |
| 4 | OWC 408 | 1.8 | 4 | 8 | 8 | 3.1 |
| 6 | OWC 612-8.4 | 2.35 | 6 | 12 | 8.4 | 6.8 |
| 6 | OWC 61407 | 2.1 | 6 | 14 | 7 | 6.6 |
| 6 | OWC 720 | 2.5 | 6 | 12.7 | 7.5 | 7.3 |
| 6 | OWC 087 | 2.38 | 6 | 10.2 | 8 | 4.6 |
| 6 | OWC 178 | 3 | 6 | 10.2 | 15 | 7.3 |
| 8 | OWC 81607 | 2.6 | 8 | 16 | 7 | 7.5 |
| 8 | OWC 812 | 3 | 8 | 12.7 | 7.3 | 6.8 |
| 8 | OWC 816-5.5 | 3.5 | 8 | 16 | 5.5 | 8.2 |
| 8 | OWC 816-6.2 | 3.8 | 8 | 16 | 6.2 | 8.8 |
| 10 | OWC 1008 | 3.35 | 10 | 16 | 8 | 9.7 |
| 10 | OWC 1019 | 8.5 | 10 | 19 | 11 | 19.8 |
| 17 | OWC 173512 | 22.5 | 17 | 35 | 12 | 78 |
| 17 | OWC 173516 | 25.5 | 17 | 35 | 16 | 95 |
| 17 | OWC 203316 | 23 | 20 | 33 | 16 | 108 |
| MARKS:NON-STANDARD CAN BE PRODUCED |

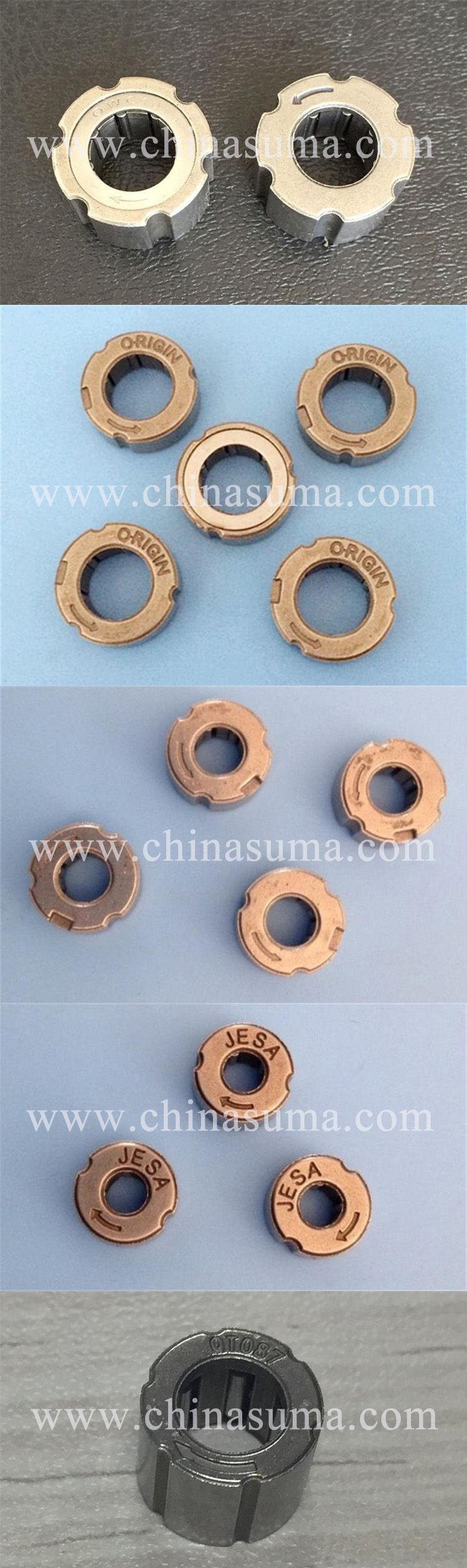

Product Display

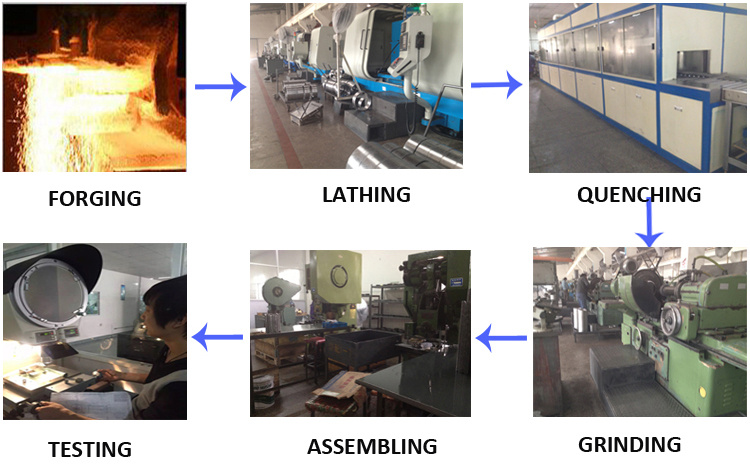

Production flow
Package
Customers
Certificates
FAQ:Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
If you have any needs,pls contact me at any time!
Changzhou Suma precision machinery Co, Ltd. Is a manufacturer specialized in Producing Various one way bearing, one way clutch, backstop clutch, overrunning clutch, indexing freewheel, spherical plain bearing and cylindrical roller bearing with high technology.
The products are widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery, printing machinery, food machinery and mine machines etc. In addition, special clutch bearings are also provided in accordance upon customers' Requirement for various applications.
With more than 10 years of experience, er focus on developing and manufacturing a variety of one way bearings to meet the needs of our customers' reauirements. With an emphasis on performance and reliability, we provide products that support industry machines, such as forklift, torque covertor, -excavator, printer, textile machines, fans, small-size loader and so on.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
All of our products are engineered by superior production equipment, manufactured with advanced instrument to ensure high precision and reliable Performance.
We welcome you to visit our website, and do not hesitate to contact us.
