| Prod Model: |
Kingkar7000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Machinery & Hardware |
| Type For Cutting Machine: |
Flame Cutting Machine |
| Certification: |
CE, ISO 9001:2000 |
| Automation: |
Automatic |
| Condition: |
New |
| Type: |
Oxy-Hydrogen Flame Cutting Machine |
| Brand Name: |
Kingkar |
| Model No.: |
7000 |
| Rated Capacity(kVA): |
22 |
Product Description

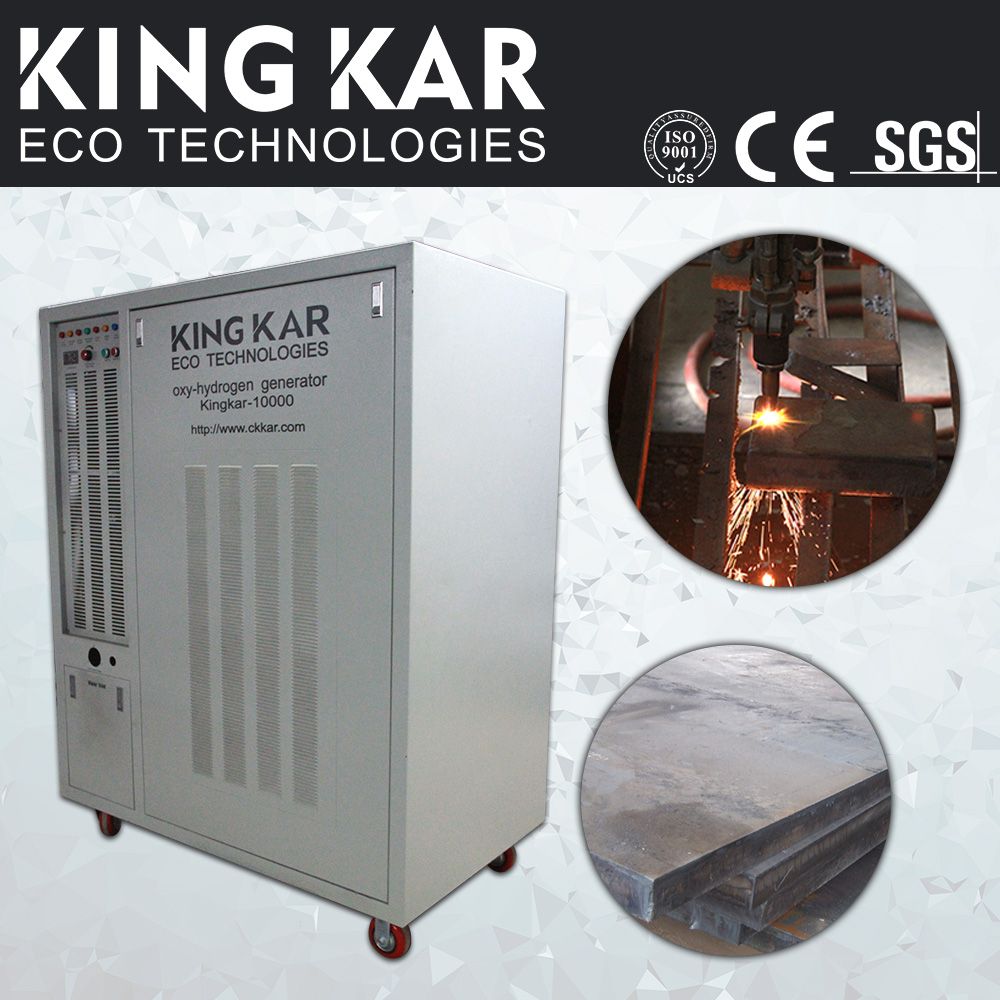

| oxyhydrogen generator slitter knives |
Operating principle
Hydrogen production and hydrogen-oxygen fuel cutting machine is a device that uses water electrolysis technology, electricity from water decomposition of hydrogen and oxygen, hydrogen as a fuel, oxygen combustion, is a new high-tech green energy equipment, is a popular saying water becomes water fuel fire equipment. Just turn on the power switch, there is a steady stream of external supply of hydrogen fuel.
Specifications
a. Neutral flame, carbonizing flame, oxidizing flame, can fully meet user's requirements for the use of fire.
b. Cutting surface smooth level off, without hang slag nodular.
c. Narrow kerf width, saving material.
d. More useful than traditional machine. Reduce pollution and 60% cost.
Why choose oxy hydrogen cutting machine?
--- Efficient operation: small slot, concentrated firepower, preheat fast, high speed cutting, do not hang residue and without cleaning after process.
--- Energy-saving design: with voltage and temperature fluctuation compensation function, built-in AC power-saving features.
--- Adjustable gas production: the use of DC power inverter technology, stable current adjustable, stable gas production.
--- Easy to use: air-cooled, no water. Boot gas production shutdown to stop gas.
--- Security: Low electrolysis, no risk of electric shock. Built- proof membrane, pressure relief valves, stainless steel fire ended tubes, stainless steel flame arrester can effectively prevent all accidents tempering.
Other features
a. Safer fuel gas
Mixture of flammable gas and air or Oxygen is explosive, and it has a lower and upper limit of concentration for explosion.
Lower explosive limit for Propane gas = 2.2%
Lower explosive limit for Acetylene gas = 2.5%
Lower explosive limit for Hydrogen gas = 4.0%.
Thus, Hydrogen is much safer than the other gases because of its higher value of Lower Explosive Limit. Additionally, because Hydrogen is lighter than air, it does not stagnate but will quickly diffuse in the atmosphere.
b. CO2 Emissions reduction
Hydrogen is a clean energy source. Water is the only product of combustion. Hydrogen combustion produces no CO2 because the molecule contains no Carbon atom, Hydrogen is the cleanest energy as an alternative to LPG, Acetylene gas or Natural gas.
c. Lower heat stress
Steel plate when heated for the same time by both conventional and Hydrogen fuelled flames shows the following heat distribution in the plate. The high combustion speed of the Hydrogen flame reduces the flame area and concentrates the thermal energy. This allows the high pressure oxygen passage to heat only the immediate area being cut, preventing excessive heat transfer to the surrounding area. This reduces cooling time and distortion caused by excessive heat stress.
Application field
Suitable for all the needs of the flame processing establishments, used to replace acetylene, propane, liquefied petroleum gas and other gas, commonly used in steel cutting, welding metal oxide, jewelry processing require high energy gas plant, glass processing.
Technical Data Sheet
| Model | Kingkar-3000 | Kingkar-5000 | Kingkar-7000 | Kingkar-10000 |
| Voltage(V) | 380 ±10%,50/60Hz,three phase |
| Rated capacity(KVA) | 9 | 15 | 22 | 31 |
| Working pressure(Mpa) | ≤0.2 |
| Relative humidity(%) | ≤90 |
| Rated gas output(L/H) | 3000±10% | 5000±10% | 7000±10% | 10000±10% |
| Water consumption(L/H) | 1.6 | 2.7 | 3.8 | 5.8 |
| Maximum Cutting Thickness(mm) | 110 | 220 | 310 | 420 |
| Effective perforated thickness(mm) | 40 | 60 | 70 | 90 |
| Cooling way | Air cooling |
| Insulation class | F |
| power protection grade | IP2S |
| Flame temperature(T) | 800-3200 adjustable |
| Working medium | Filtered water or deionized water or soft water |
| Working | continuous |
| environment temperature(T) | 0-40 |
| Dimension(L×W×H)mm | 1020*770*1270 | 1250*830*1720 | 1300*930*1820 | 1500*930*1940 |
| Weight(KG) | 293 | 567 | 653 | 894 |
Thank you for visiting. Any questions, please feel free to contact us. I am Huang Renhua here.
KingKar provides green energy solutions. We are specialized in Oxy-Hydrogen Generator, which changes soft water into a clean burning fuel that can be used to replace traditional gas fuels. We offer this safe, clean and pollution-free new source of green energy for mankind. Our development concept is based on creating a cleaner living environment around the world and promoting the use of sustainable energy sources.
KingKar Oxy-hydrogen generator for boiler only consumes water
And electricity to create oxy-hydrogen gas which feeds into to the combustion chamber for complete burning. It increases the combustion efficiency of the existing fuel etc. There is no pollution, no harmful gases or other chemical additives.
Our machine content: Oxy-hydrogen generator for boiler, Oxy-hydrogen used in industrial furnace, Oxy-hydrogen used in medical care, industrial And household wastes incinerator, Oxy-hydrogen used in generator, Oxy-hydrogen used in clean coal combustion technology, Oxy-hydrogen used in pharmaceutical industry and etc
