| Prod Model: |
p10 |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Stage Performance |
| Certification: |
RoHS |
| Average Power Consumption: |
250W |
Product Description
Company profile
we are professional led display manufacture and exporters,we have a great reputation for the excellent products quality,with a good market overseas.
Our company's main products are LED indoor and outdoor monochrome display, indoor and outdoor color display, indoor and outdoor full-color display, module, power supply, control card and various accessories,good quality and moderate price.
Specification:| Hot Sale P10 Full Color Outdoor LED Display For Advertisement |
| Item | Parameter |
| Pixel Pitch | 10mm(H*V) |
| Pixel Density | 10,000 dots/m2 |
| LED Shape | SMD3535 |
| LED Configuration | 1R1G1B |
| Module Size | 320x160mm |
| Module Resolution | 32(W)×16 (H)pixels |
| Driving Mode | 1/2Scan,constant current |
| Cabinet Material | Steel or Aluminum |
| Contrast | 2000:1 |
| Brightness | ≥5200cd/m2 |
| View Angle | 140°(horz.), 140°(vert.) |
| Protection Level | 800 W/sq.m |
| Average Power Consumption | 250 W/sq.m |
| Viewing distance | ≥10m |
| Gray Scale | 12-16bits for red,green,blue |
| Colors | 16.7 M |
| Input voltage (AC) | 110V ~ 240V |
| Frame Frequency | 50Hz-75Hz |
| Refresh Rate | ≥1000Hz |
| Brightness Adjustment | 0-100% |
| Gamma Correction | (-0.5 -- 5.0) |
| Color Temperature | 6500-9000K |
| Operation Control System | Nova; Linsn;Colorlight.... |
| Support Input | Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
| Stock Temperature | (-40ºC~+85ºC) |
| Operating Temperature | (-30ºC~+50ºC) |
| Operating Humidity | 10-90% RH |
| Life Span | 100,000Hours |
| MTBF | ≥10,000Hours |
| Protection Rating | IP65 waterpoof |
| Flatness of the screen | <=1mm |
| Control Distance | Cat5E:100m,Multi-Mode Fiber:500m,Single-Mode Fiber:15km |

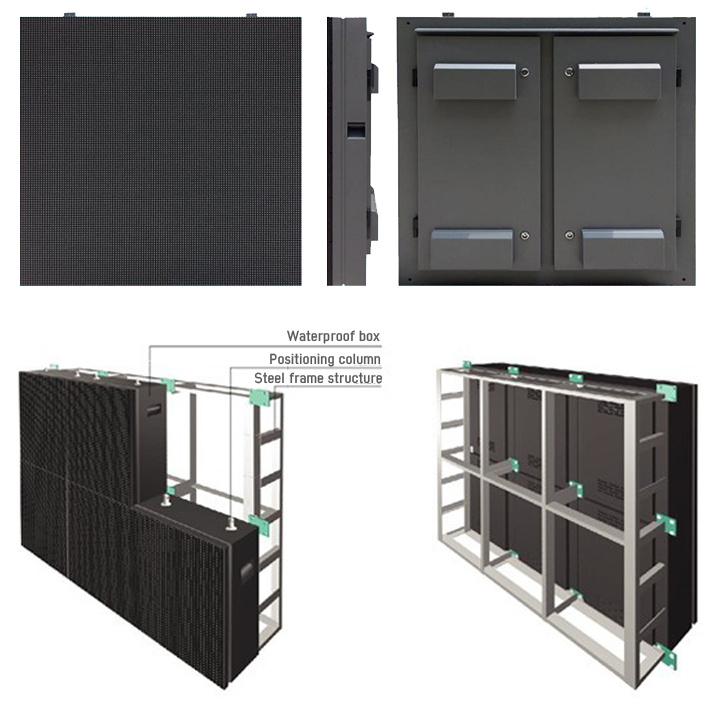

LED Module& Full waterproof cabinet
Features:
1)This cabinet of SMD outdoor led display can be make up large advertising led wall with great advertising effect.
2)It's suitable for stage, bank, promotion, exhibition, station, KTV, stadium, airport and all outdoor places.
3)Ultra-thin cabinet and modular design can save install and maintain cost for you and also improve work efficiency.
4)Reasonable PCB design and new plastic cover with new mold improve the quality of led modules.
5)Adopted MBI constant current driver which can make refresh rate up to 1000HZ load with single receiving card in one cabinet.High quality product ensure stable and clear image output.
6)Special waterproof design protect your product out of water , the high quality is worthy of trust.
7)The Outdoor SMD LED Display features LINSN control system which ensures great quality output, high resolution display, fast loading time and high refresh rate.
Control system
Contact Us:
We're devoted to innovative high-end LED display with over 16 years manufacturing experience, and we believe you could get a professional solution and best service from xinhe. We're happy to serve you.
If you need LED display screen, welcome to contact us, we can customize according to your needs.

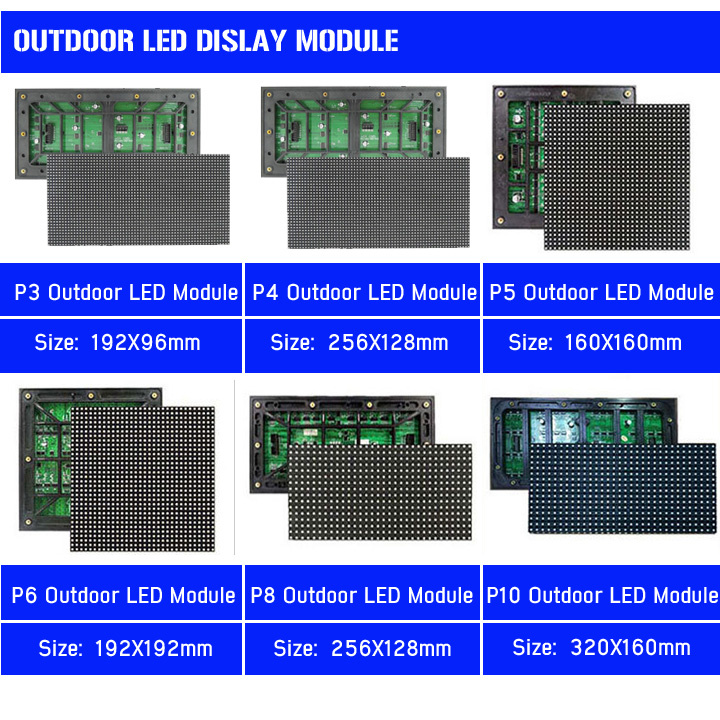

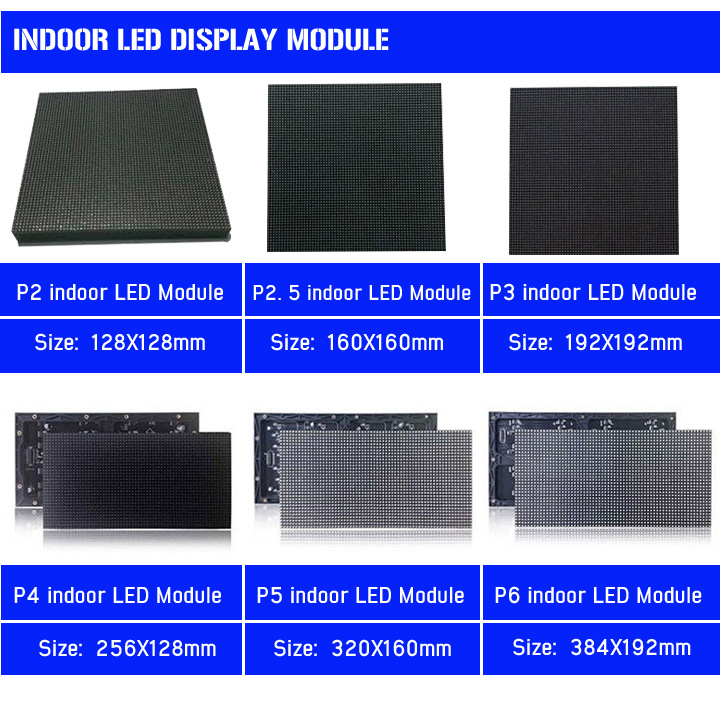

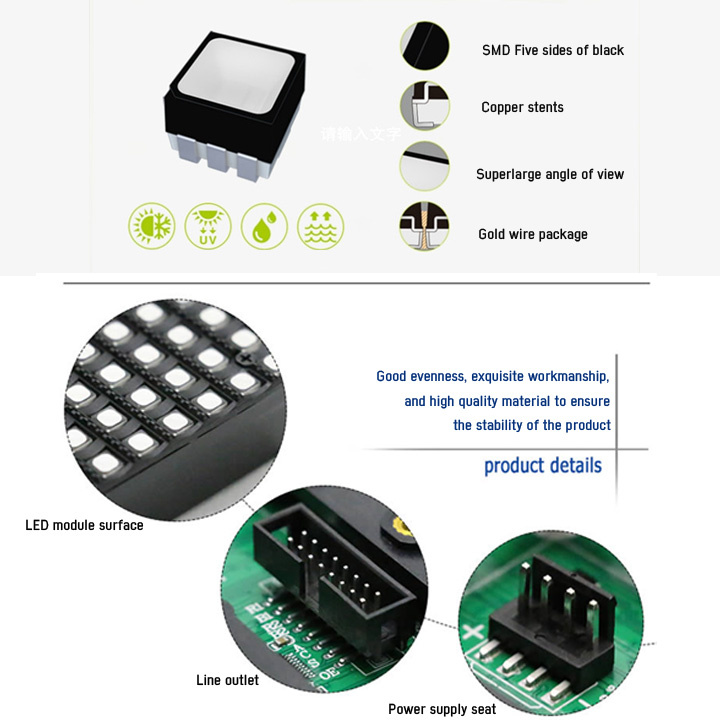

Module features:
1, standard design, specific series, combined structure, Dark black and Durable: It is special
Formulated with module plastic materia with deep black; It is strong and durable and its contrast
Is higher than conventional products, strong and durable.
2, All modules are in standard and uniform size: 320*160mm
3, Replacing parts of the general modules will be easy and convenient. We offer the service of
Replacing the old modules with the new ones directly.
Cabinet features:
1, Its size is 960mmx960mm and perform all the distance of indoor and outdoor display cabinet.
The seams are reduced more than 50% and smoothness increases by leaps and bounds.
2, Simplify the installation and maintenance: If familiar with one, you should master the whole.
This can reduce the difficulty of marketing, engineering, training, maintenance and can reduce
The workload.
3, Standard production in a faster and more flexible way is possible because we have reserved
Standard general cabinets and the shipment can also be made rapidly.
Our Services
1)Your inquiry related to our products or price will be replied in 24hrs
2)OEM&ODM, any your customized lightings we can help you to design and put into product
3)Distributoership are offered for your unique design and some our current models
4)Protection of your sales area, ideas of design and all your private information
5)Top Quality+Reasonable Price+Responsible After Service=Successful & Win
Trade Terms
1. Payment: T/T, 30% deposits before production, 70% balance to be paid before dleiverying
2. Shipping freight are quoted under your requests
Shenzhen xin and century technology Co., Ltd. (hereinafter referred to as "xin century" brand) is a set research and development of LED display products, manufacturing, sales and service into a comprehensive professional production enterprises, the company attached to each product excellence, from the technology and the perfect combination of science and technology, to provide you with gold quality products and excellent service. Company formed a technology development, production assembly, engineering services, quality management, marketing, and integrated management department, the company has more than 200 people, plant covers an area of more than 10000 square meters, has attracted a large number of high-tech professional and technical personnel, the company has the advanced foreign high/medium/low speed SMT machine, LED light-emitting diode component inserter, automatic assembly line equipment, such as the company's products have obtained CE certificate, RoHS certificate, high-tech enterprise qualification certificate, etc. It has become a large modern LED manufacturer in the same industry. Xin century most products have been sold to the United States, Japan, Britain, Germany, Italy, India, Russia, Saudi Arabia, Iran, New Zealand, Belgium, Nigeria, Israel and other countries and regions.
In the early stage of the company, we dedicated to the construction and promotion of "xinghe century" brand. Scientific management and rigorous and rigorous work style have brought together a group of young and high-quality technical and business teams. The company takes integrity, profession, innovation as the enterprise responsibility. Adhering to the corporate philosophy of reputation first, quality to the top, creating brand and serving the society; Dedicated to the customer dedicated products and thoughtful service. The company regards customers as the soil of survival and development, hard work. Clear and practical service commitment, strive to make high quality products, high positioning platform, high quality service to friends all over the world.
Xinhe century LED display products have a complete range of products and diversified products. Among them, LED display series covers indoor and outdoor areas, including: 1. Stage products; 2. Billboards; 3. Expressways; 4. Rental screen; 5. Stadium screen; Widely used in various public places, such as, wedding company, hotel and media, commercial plaza, schools, government agencies, sports venues, transportation facilities, financial institutions, such as occupying the leading status in the global market.
