| Price: | US $ 284-300/Piece |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | 3.91mm, 4.81mm, 5.95mm, 6.25mm |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: | 20 Days |
| Warranty: | 2 Years |
| OEM: | Yes |
| Service Method: | Rear Service |
| Referesh Rate: | >1500Hz |
| Brightness: | >6500nits |
| Tube Chip Color: | Full Color |
| IP Rating: | IP65 |
| Pixel Configuration: | 1R, 1G, 1B |
| Display Function: | Video Display |
| Average Power Consumption: | 350W / m² |
| Display Type: | LED Video Display |
| Application: | Stage Performance |
| Certification: | RoHS |
| Pixel Pitch: | 3.91mm,4.81mm,6.25mm |
| Pixel Density: | 65536dots/Sqm, |
| Scanning Mode: | 1/8 Scan, 1/4 Scan, 1/4 Scan |
7. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
8. Nice appearance and simple structures.
9. Jointed correctly, being installed & dismounted by one person without tool.
10. Humanized operating interface with breakdown indicator lights, easy to maintain.
11. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
12.Optional of Convex Shaped, Concave Shaped and Wave Shaped screens
| Model | OR-3.91 | OR-4.81 | OR-6.25 |
| Pixel Pitch | 3.91mm | 4.81mm | 6.25mm |
| Pixel Density | 65536ouxeks/m2 | 43264pixels/m2 | 25600 pixels/m2 |
| LED Type | SMD1921/SMD2525 | SMD2727 | SMD3535 |
| LED Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Cabinet Dimension | 500mmx500mm/ 500mmX1000mm | 500mmx500mm/ 500mmX1000mm | 500mmx500mm/ 500mmX1000mm |
| Cabinet Resolution | 128*128pixels/128*256pixels | 104*104pixels/104*208pixels | 80*80pixels/80*160pixels |
| Cabinet Weight | 9kg/14kg | 9kg/14kg | 9kg/14kg |
| Cabinet Material | die casting aluminum | die casting aluminum | die casting aluminum |
| Ingress Protection(front/rear) | IP65/IP54 | IP65/IP54 | IP65/IP54 |
| Brightness | >6500nits | >6500nits | >5500nits |
| Viewing Angle(H/V) | 140°/140° | 140°/140° | 140°/140° |
| Driving Method | 1/8 Scan | 1/13 Scan | 1/10 Scan |
| Frame Refresh | ≥ 60Hz | ≥ 60Hz | ≥ 60Hz |
| Data Refresh Rate | >1500Hz | >1500Hz | >1500Hz |
| Gray Scale | 16bit | 16bit | 16bit |
| Power Consumption(avg.) | 275w/m2 | 275w/m2 | 200w/m2 |
| Input Voltage | AC 110/220±10%, 50~60Hz | AC 110/220±10%, 50~60Hz | AC 110/220±10%, 50~60Hz |
| Temperature(operating/storage) | -20~50°C / -40~60°C | -20~50°C / -40~60°C | -20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH | 10%~90%RH / 10%~85%RH | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs | ≥1000hrs | ≥1000hrs |
| Life Span | ≥100000hrs | ≥100000hrs | ≥100000hrs |
| Pixel Failure | <0.0003 | <0.0003 | <0.0003 |
P3 led display for the best viewing distance between 3-10m
P4 led display for the best viewing distance between 4-15m
P5 led display for the best viewing distance between 5-20m
P6 led display for the best viewing distance between 6-25m
P8 led display for the best viewing distance between 8-30m
P10 led display for the best viewing distance between 10-33m
P12 led display for the best viewing distance between 12-40m
P16 led display for the best viewing distance between 15-45m
P20 led display for the best viewing distance between 18-60m
P25 led display for the best viewing distance between 20-70m
P31.25 led display for the best viewing distance between 25-100m
Outdoor LED Display series :
1. Automatic brightness control,super processing ability,strong colour restoration.

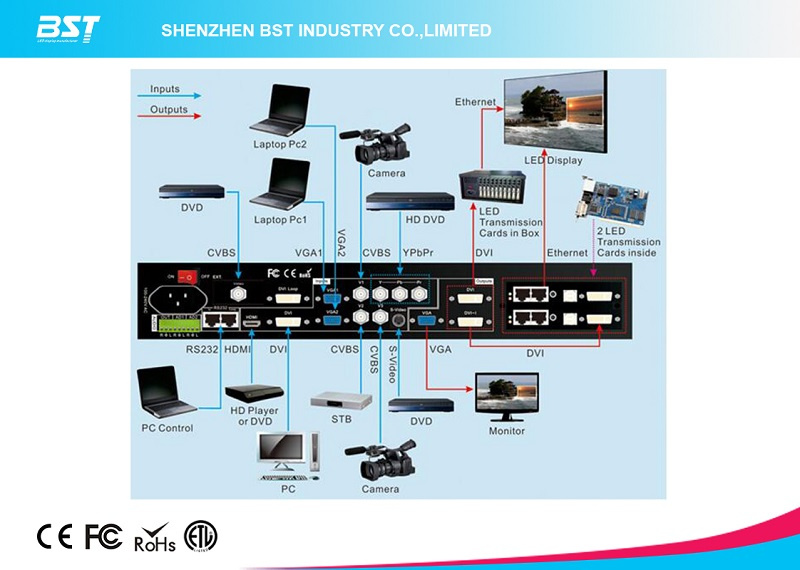

2. Support various interfaces and signal sources.
3. Advance digital control technology, excellent effect.
4. High brightness,even in direct,full-on sunlight to ensure you attract more audience to get short ROI of your full color outdoor led display screen's investment.
5. Antiseptic and durable, can be used outdoor in all weather.
LED module has easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED display system.
With full aluminum alloy structure for light weight and waterproof advantages, HJY outdoor LED display is an perfect external multimedia LED display system designed for changeable and adverse outdoor environment.
Indoor LED Display series :
The indoor LED display uses high-quality LED, which has high efficiency luminescence,decreased attenuation of brightness,high stability and reliability. Super uniformity in color. Low-budget, high pixel density,more vivid and stable pictures(No Flickering). The ultra-slim and ultra-light weight structure of indoor full color LED display,increased design opportunities and lower transportation costs. SMD technology takes super wide viewing angle for the LED display; better color performance,higher contrast ratio and higher refresh rate. The super thin rental indoorLED display features low weight,special rigging system for simplified service,hassle-free mounting, easy configuration and maintenance,and several other enhancements that are unmatched in the industry.
