| Prod Model: |
JL-OLD6 |
| Brightness: |
>6000 |
| Delivery Time: |
10~15days |
| Warranty Time: |
2 Yeas |
| Viewing Angle: |
H:140°, V:120° |
| Packing Size: |
1150X1150X410mm (6 in 1) |
| Weight: |
46kgs Per Piece |
| LED Lamp: |
King Light or Customized |
| Power Supply: |
Meanwell or Customized |
| IC: |
Mbi5153, Mbi5124 |
| Tube Chip Color: |
Full Color |
| Display Function: |
Market Display |
| Pixel Pitch: |
6mm |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Conference |
| Certification: |
FCC |
| Pixel Density: |
27777 |
| System Operating Platform: |
Windows XP, 2000, etc |
| IP Rating: |
IP65 Front, IP54 Back |
Product Description

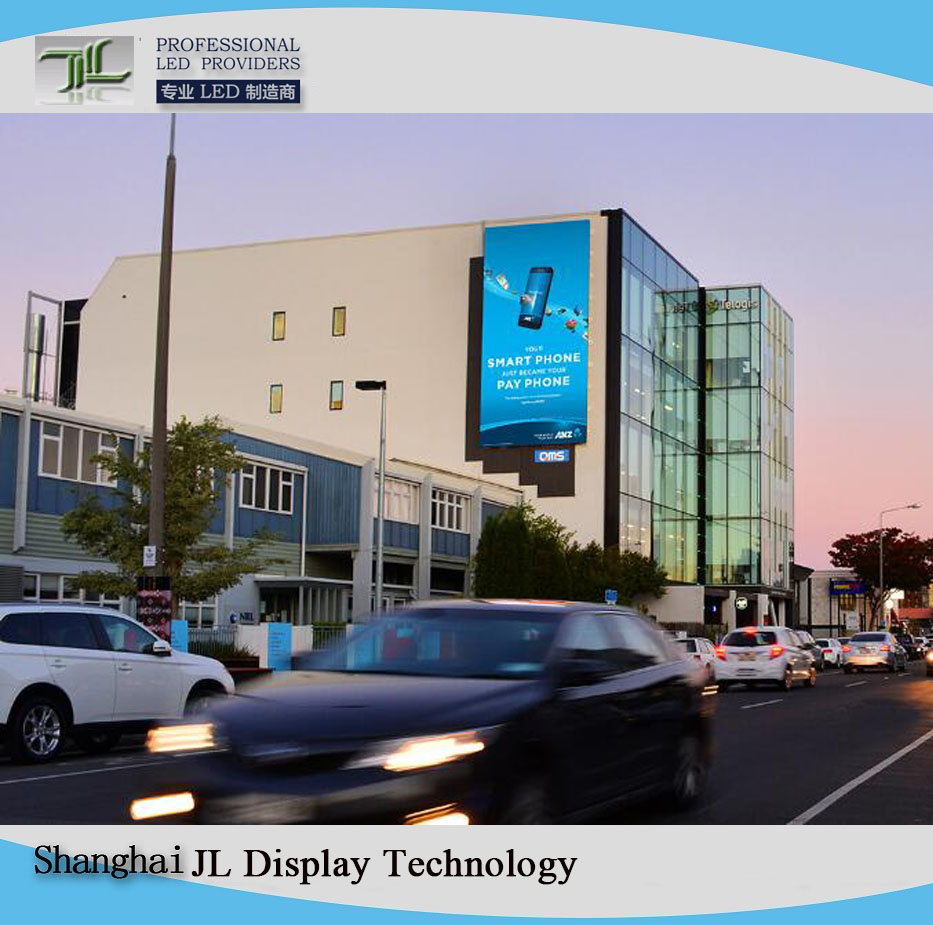

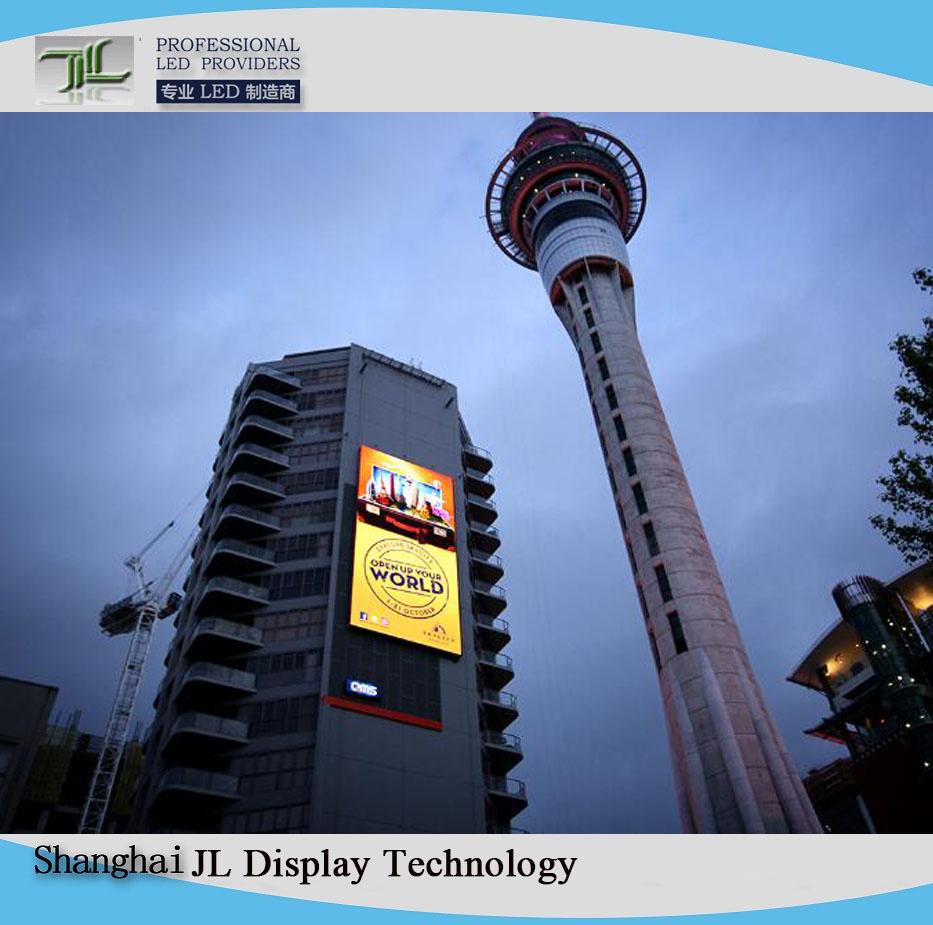

High Brightness Outdoor P6 LED Display for Fixed Installation
Product Description
High Brightness full Color LED Outdoor rental LED display screen for Stage (pH5,p6, p8, p10 die-casting). It is our economic model . It can be suspended on Truss or Stacked on Ground. Our rental LED is ultra-thin and super light. With die-asting aluminum cabinet, strong, light and precise, very portable for rental application. This LED screen can be suspended on truss or stacked on ground.
The features as bellow.
1. No flat cable design, quality is more stable and it looks very neat inside, with a fan inside, good for heat dissipation
2. IP65 standard, good for outdoor use
3. High brightness, over 6500nits, can work well in day time under direct sunshine
4. Higher refresh rate: Over 2000Hz/s, no scan line
5. High resolution, can reach 62500pixels/sq. M.

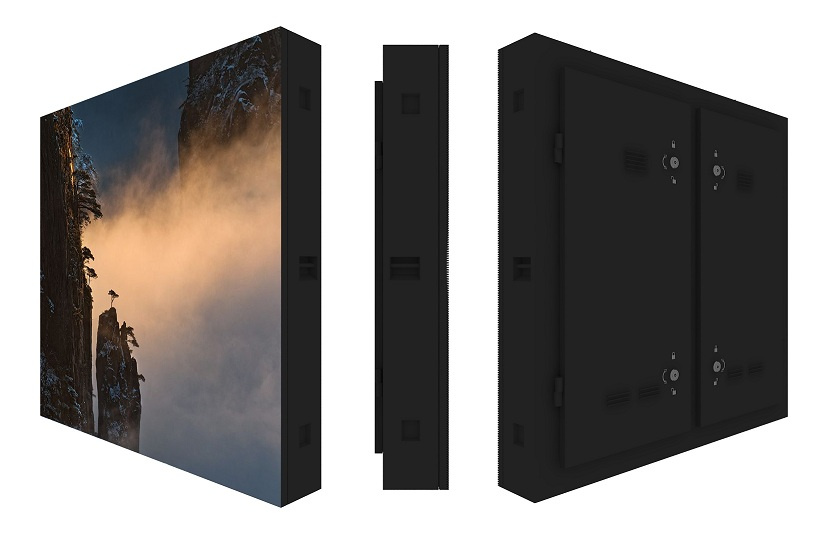

6. Die-casting aluminium cabinet, Durable & stable LED display.
7. Normally we use CREE LED from USA or Epistar LED from Taiwan
8. MBI5020, MBI5124, MBI5041, MBI5050 are optional
9. We offer 2-3 Years warranty.
Cabinet material could be waterproof and metal waterproof. Size could be custominzed.

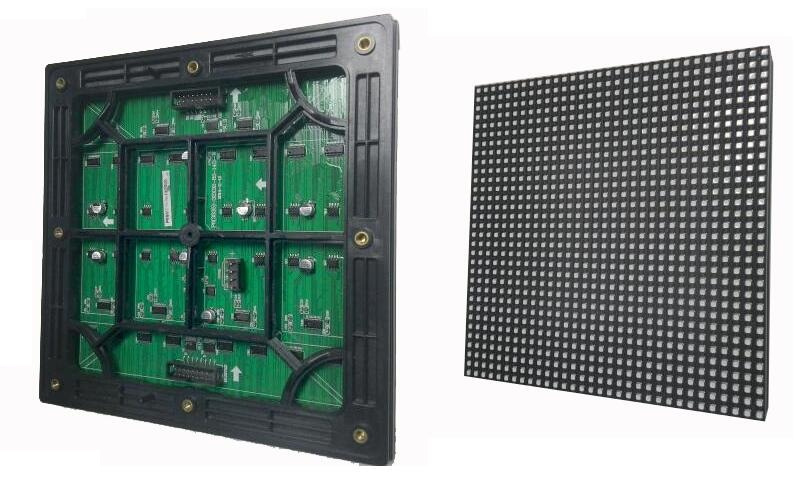

| | The technology paramete of P6 mm LED module |
| Number | Item | P6 |
| 1 | Pixel pitch | 6mm |
| 2 | Size of module | 192mm * 96mm |
| 3 | Resolution of module | 32 *16 |
| 4 | Density of pixel | 27777dots/m2 |
| 5 | Pixel configuration | 1R1G1 B |
| 6 | Red wavelength | 625± 2nm |
| 7 | Green wavelength | 525± 2nm |
| 8 | Blue wavelength | 470± 2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | >6m |
| 11 | Horizontal viewing angle | 140°/120° |
| 12 | power consumption | 200w/m2 (average) |
| 13 | Brightness | > 2300cd /m2 |
| 14 | Gray scale | 16bits color |
| 15 | Color temperature | 6500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | 1/8 scan |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | > 1000Hz |
| 20 | Working voltage | AC220V/110V± 10% |
| 21 | IP grade | IP65 |
| 22 | Working temperature | -20° C~80° C |
| 23 | MTBF | 5,000 hours |
| 24 | Life span | > 100, 000 hours |
| 25 | Defects rate. | ≤ 0.00001(Led display line standard< 0.0001) |

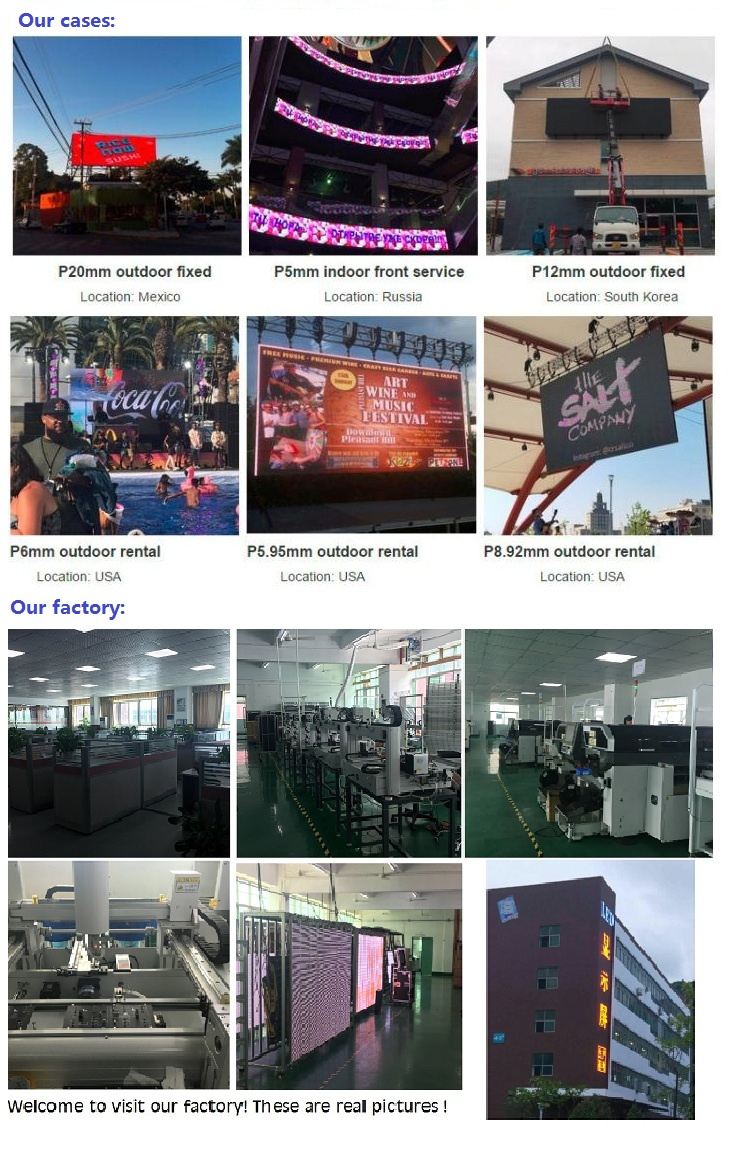

Company information:We are the leading supplier of LED display solutions, which has been specialized in R&D, manufacturing and marketing of LED Display Screens. Located in our own industrial park, JLLED covers a district of more than 8000 m², of three floors in one block. We could ensure production capacity of more than 5, 000 square meters per month for the LED displays, thanks to our well equipped automatic production lines, and skilled workers. Our R&D group is made of more than 8% of total employees and most of them are senior technicians, with more than 10 years' experiences in the LED field.
