| Prod Model: |
R12P |
| Frequency Response: |
55 Hz ~ 18kHz (+3 dB ) 50 Hz ~ 20kHz (-10dB ) |
| Nominal Cverage: |
80°× 50° |
| Sensitivity: |
122dB Spl, 128 dB Spl Peak |
| Power Rating: |
450W |
| Power Requirement: |
110V, 220V |
| Amplifier Module: |
Double Channels 700W |
| Snr: |
102.5dB |
| Output Circuit Style: |
D Class |
| Cooling System: |
Fan From Back From Front, Forced Cooling |
| Weight: |
27kg |
| Noise: |
<102dB |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
SGS |
| THD: |
<0.03% |
| Monitor: |
None |
Product Description

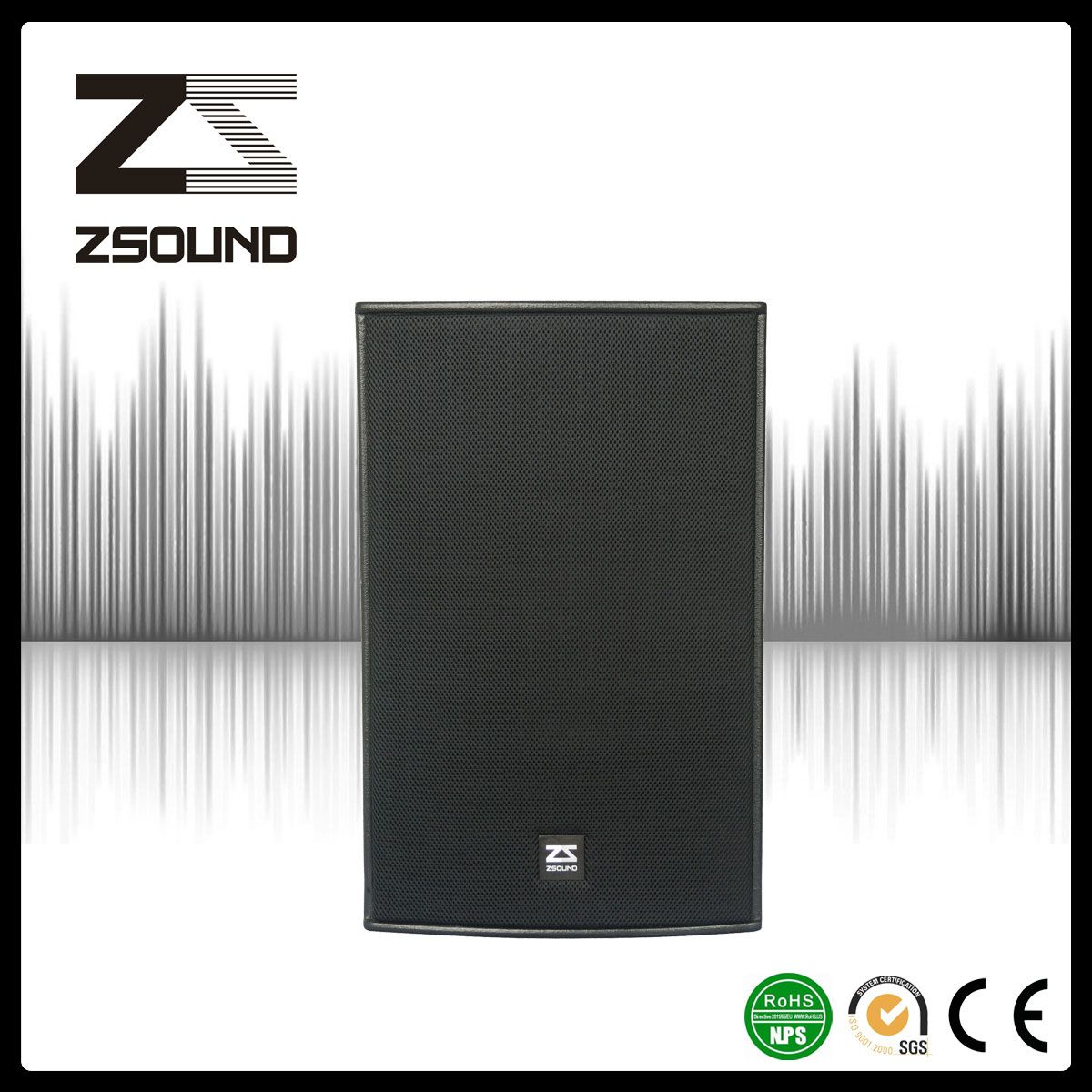

PA powered 12" active monitor speakerR Series is two full range selfpower speaker, mainly designed as FOH and monitor. The coverage of HF horn is 80°×50°.
And it Built-in voltage toggle switch for voltage requirements in different countries. It supports a variety of signal input.
Such as MIC and LINE. It has a volume control and with attenuation value. And it is suitable for Auto Show, multi-function hall and small hall show.
Feature:
Two way selfpower full range speaker
Elastic bass
Long throw rubber edge LF driver
Rotatable 80° × 50 °directivity horn
Applications:
Small FOH
Stage monitor
Near-field sound

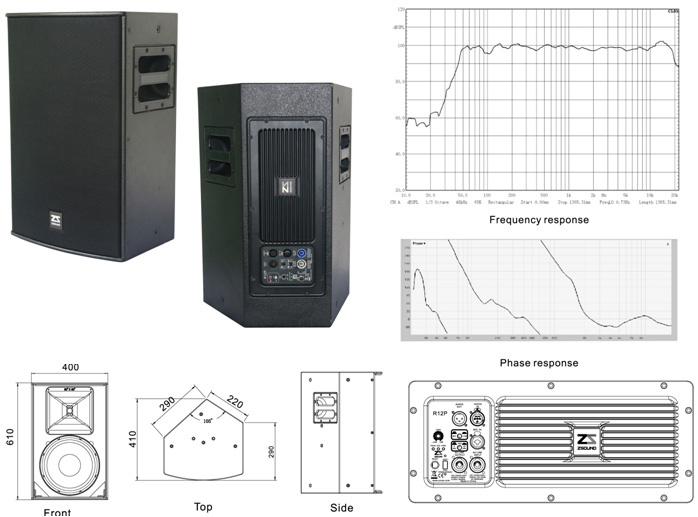

| Technical Specification |
| Frequency range(include powered module) | 55 Hz ~ 18KHz (+3 dB ) 50 Hz ~ 20KHz (-10dB ) |
| Normal power (AES) | 450W |
| Driver | LF 1×12" (75mm voice coil) woofer
HF 1×1.75" (1"throat) exist compression drive(44mm voice coil) |
| Nominal Coverage | 80°× 50° |
| MAXIMUM SPL | 122dB SPL,128 dB SPL peak |
| Voltage requirement | 100V-120V/200-240V~ 50-60Hz |
| Amplifier module | Double channels 700W |
| Total harmonic distortion (1KHz, full frequency 4Ω) | ≤1% |
| SNR | 102.5 dB |
| Audio in gain (1KHz 8Ω) | 23 dB |
| Mic in gain (1KHz 8Ω) | 56 dB |
| Input connectors (per.ch) | male XLR & female XLR (Neutrik) |
| Input impedance | 20KΩbalanced/10KΩunbalanced |
| Output circuit style | D class |
| Cooling system | Fan from back from front, Forced cooling |
| PHYSICAL DATA |
| Dimension(H×W×D) | 610×400×410(mm) |
| Weight (include powered module) | 27(kg) |
| Rigging | 17×M8 top +35mm bottom×1 |
| Material of enclosure | 15mm,18mm plywood |
| Surface | Black water paint |
| Grille | Black epoxy mesh grille with acoustically |
FAQ:Q1: How long is the warranty for the speakers?
A1: 1year warranty.
Q2: How about the delivery time?
A2: 3-7days for stock.
10-20 days for new order depend on order quantity since receipt of 30% T/T deposit payment.
Q3: What kind of payments does ZSOUND support?
A3: T/T, Western Union, Cash are accpeted.
Q4: What's the MOQ?
A4: MOQ is 1pcs
Q5: Can you produce according to customers' design?
A5: Yes we can, we are professional manufacturer,OEM & ODM are welcome .
Q6:Can you tell me your main customers?
A6: That's our customers privacy, we should protect their information.
At the same time, please rest assured that your information is also safe here.Our advantages:1) global leading professional manufacturer of professional speaker and amplifier
2) product quality: superior speaker and amplifier, top technology and quality
3) certificate: CE, RoHS, GS,SGS,ISO9001
4) monthly production capacity: 2000 pieces
5) fast delivery: get your order when you need it
6) 4000 square meters workshop, with about 200 workers and 20 professional engineers
7) convenient transportation: 1 hour to Baiyun airport, 30 minutes to Guangzhou South Railway Station, 20 minutes to Panyu Square Metro station
8) 24-hours online service
