| Price: | US $ 2000/Piece |
|---|---|
| Trade Terms: | FOB,EXW,CIF |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | F3V-131S |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: | First |
| Prism Width: | 131mm |
| Main Material: | Aluminum Alloy |
| Wind Resistance: | 10 Class |
| Size: | Customized |
| Certificates: | CE, RoHS |
| Type: | Tri-vision Billboard |
| Material: | Aluminum Plate |
| Anti-wind Capability: | Strong |
| Waterproof: | Waterproof |
Outdoor Large Size Rotating Trivision Billboard
Tri-vision billboard can be made arch/curve shape according to the construction
Main technical parameters:
1. Primary Material: Environmental aluminum alloy of special quality
2. Driving: double-gear steps driving system
3. Specification of external frame:145mm (width) * 160mm (thickness)
4. Width of triangle prism:131mm , thickness1.35-2.0mm
5. Weight: 20kg/square meter
6. Image Gap: 6-8mm
7. Image combination: triangular prism 8m without joint and no length limit
8. Image flipping time: each face 6-12 seconds (preset )
9. Controlling system: Siemens LOGO
10. Image stop time: freely set from 0-900 seconds
11. Power supply: voltage 220v, current 0.54A, frequency 50HZ, power 90W
12. Motor: 90W original Panasonic motor
13. Wind resistance: 10 class
14. Operation service life: qualified installation will ensure normal service life up to 10 years
based on 16 hours each day
15. Flipping performance (only one type can be set ex works based on customers
requirement)
A. Simultaneous B. Wave type C. Curtain opening type
D. Curtain closing type E. Flipping step by step. F. Flipping from part to part.

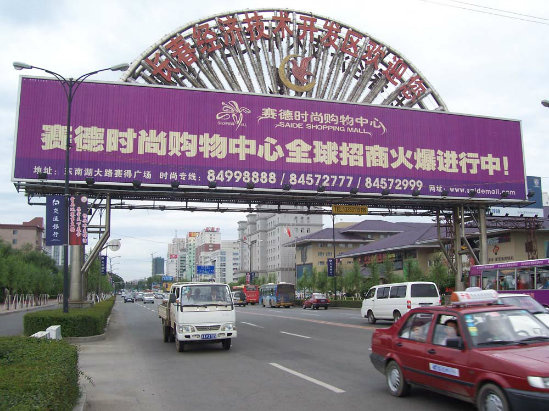

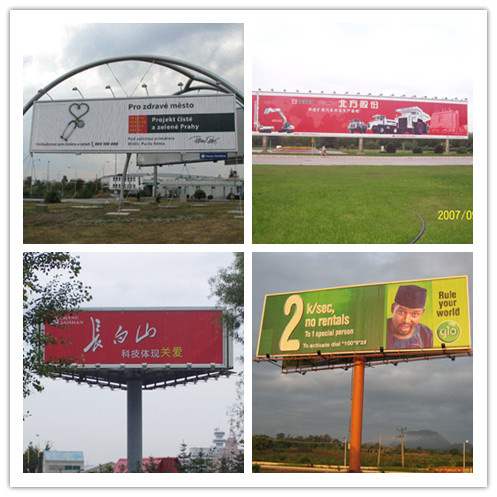

16.Tri-vision, trivision billboard, trivision display available for T pattern pole, upper building ads, outside building ads, intersection.

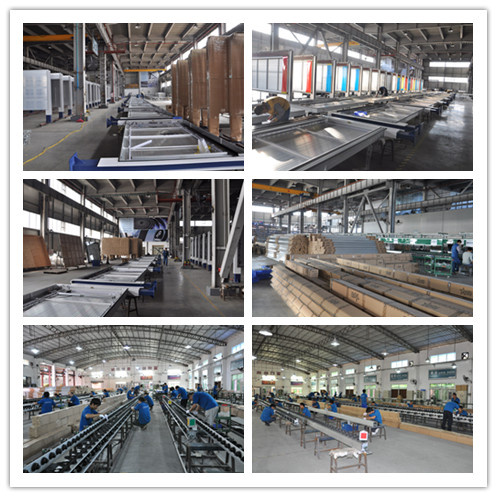

We are a leading manufacturer who specializes in advertising light box, trivision billboard over 20 years. Our professional skills and great experience helps us win many large projects over the world, such as: Georgia outdoor project ( light box and Outdoor billboard), Kuwait gas station project ( light box with explosion protection) and Thailand project (shopping mall light box, trivision billboard for outdoor and sports ground) etc., We are also the only manufacturer of trivision billboard for Guangzhou airport.
