| Prod Model: |
56mm~219mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
as Per Your Request |
Product Description
Packaging Detail: Carton, we can package according to yourequirement.
Shiping Detail: By sea or by train
Specifications
Used pdc drill bit for sandstone drilling
1, For water exploration power hand drilling tool.
2, High quality, and low cost.
3, It is new product, but its application is very widel
The feature of the product
This PDC drill bit series of drilling through scientific design and application of advanced uniqueweldingsintering technology, one-time molding, and tungsten carbide polycrystalline as gauge, strong and durable, drilling speed, long service life. Particularly suitable for( f< 18 or d < 10) in hard rock drilling.
Usage:
A: Used for drill gas drainage hole,
B: Deep hole.
C: Grouting hole.
D: Geological exploration hole.

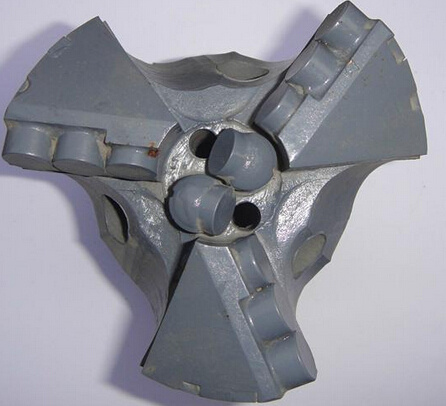

PDC diamond drill bit for mining, water well and hard rock drilling description:
Model No.: PDC drill bit for blast hole drilling
Types: Non-coring PDC drill bit
Material: The best diamond&sintered carbide
Size : 50mm, 56mm, 60mm, 65mm, 75mm, 94mm, 98mm, 113mm, 120mm, 120.5mm, 124mm, 143mm, 149mm, 152mm, 168mm, 190.5mm
1. We can change the steel body color according to your actual requirements.
2. Customized the sizes based on your requirements.
3. Choose the different package to your needs.
PDC diamond drill bit for mining, water well and hard rock drilling Features:
1) the pdc concave drag bits made from PDC cutters brazed to Matrix Body
2) body material: Higher strength of tungsten carbide
3) good anti-erosive and also increased the toughness
4) higher reliability and drilling efficiency.
PDC diamond drill bit for mining, water well and hard rock drilling Applications:
PDC concave drag bits used for water well drilling, geotechnical and environmental drilling, mineral exploration, geothermal wells, geothermal drilling, construction and utility work, and a wide range of other diverse applications.
Specification diameter(mm) | Size | Cutting Wings | Water Hole | Threading |
| Dia(mm) | Height(mm) | Pillar Quantity | Blade Quantity | Quantity | Quantity |
| 56 | 56 | 115 | 2 | 3 | 4 | 6--8 | Square Taper Lock |
| 60 | 60 | 115 | 2 | 3 | 4 | 6--8 |
| 65 | 65 | 115 | 2 | 3 | 4--5 | 6--8 |
| 75 | 75 | 125 | 2 | 3--4 | 4--6 | 6--10 |
| 78 | 78 | 128 | 2 | 3--4 | 4--6 | 6--10 |
| 85 | 85 | 128 | 2 | 3--4 | 4--6 | 8--12 |
| 94 | 94 | 128 | 2 | 3--4 | 4--8 | 8--12 |
| 113 | 113 | 135 | 3 | 3--4 | 6--8 | 8--12 |
| 133 | 133 | 135 | 3 | 3--4 | 6--8 | 8--12
|
FORSUN is a manufacturer of Diamond Core Bits, Reaming Shells, Core Barrels, Drill Rods, Casings, other Drilling Accessories and Drilling Rigs which are used mainly in mineral exploration, site investigation, water well construction. FORSUN products are produced according to ISO, DCDMA, CDDA, Metric, and Chinese standards. So far FORSUN products have been exported to more than 50 countries. With qualified and professional staff as well as advanced production technologies and equipment, FORSUN is capable to offer customers both the standard and customized products.
Forsun is a leading manufacturer and supplier of drilling equipment, specializing in producing Diamond Core Bits (Impregnated and Surface Set, E. P. ), Reaming Shells, Core Barrels, Drill Rods, Water Swivels, Hoisting Plugs, SPT complete, and other drilling tools and accessories.
Sizes Available:
Diamond core drill bits and diamond non-core drill bits
A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW
H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short
S- Gauge Core Bits: SWF-Long, SWF-Short
U- Gauge Core Bits: UWF-Long, UWF-Short
Z- Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
And all other standard CDDA, DCAMA, Crealius, and ISO sizes.
