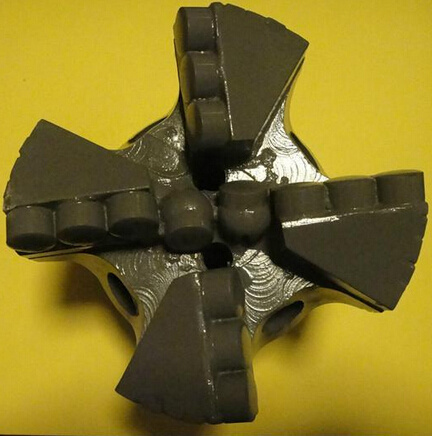

PDC Mining Non-Coring Diamond Drill Bit for Water Well Drilling
| Price: |
US $ 80-200/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
5 5/8" |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Graininess: |
100# |
| Thickness: |
5mm |
| Shape: |
Round |
| Customized: |
Customized |
| Specification: |
4inch |
| Brand: |
SATA |
| Usage: |
Drilling |
| Manufacturing Arts: |
Sinter |
| Kind: |
Diamond Drill |
| Saw Blade External Diameter: |
350mm |
Product Description
PDC full face Bits has a very good penetration rate and long life in a wide range of rock formations. The application include in mining, civil engineering and the oil and gas industries.
Generally, it include the Three Wings, Four Wings, Five wings PDC Non-Coring Bits.
As the design of the PDC Bits is greatly dependent on the particular application, the potential customers' special technical suggestion will help us to supply the proper PDC Bits.
Size: The available sizes include 56mm, 60mm, 65mm, 120mm, 3-7/8", 5-7/8" and so on.
|
PDC non-coring bit |
impregnated non-coring bit |
|
iameter |
PDC cutter |
Teeth NO. |
Rock formation |
Working way |
|
60 |
High-strength plane PDC |
5 |
Middle and hard |
Cutting |
|
65 |
High-strength plane PDC |
5 |
Middle and hard |
Cutting |
|
75 |
High-strength plane PDC |
6 |
Middle and hard |
Cutting |
|
94 |
High-strength plane PDC |
6 |
Middle and hard |
Cutting |
|
94 |
High-strength plane PDC |
8 |
Middle and hard |
Cutting |
|
113 |
High-strength plane PDC |
8 |
Middle and hard |
Cutting |
|
133 |
High-strength plane PDC |
10 |
Middle and hard |
Cutting |
|
153 |
High-strength plane PDC |
14 |
Middle and hard |
Cutting |
|
171 |
High-strength plane PDC |
16 |
Middle and hard |
Cutting |
|
|
FORSUN is a manufacturer of Diamond Core Bits, Reaming Shells, Core Barrels, Drill Rods, Casings, other Drilling Accessories and Drilling Rigs which are used mainly in mineral exploration, site investigation, water well construction. FORSUN products are produced according to ISO, DCDMA, CDDA, Metric, and Chinese standards. So far FORSUN products have been exported to more than 50 countries. With qualified and professional staff as well as advanced production technologies and equipment, FORSUN is capable to offer customers both the standard and customized products.
Forsun is a leading manufacturer and supplier of drilling equipment, specializing in producing Diamond Core Bits (Impregnated and Surface Set, E. P. ), Reaming Shells, Core Barrels, Drill Rods, Water Swivels, Hoisting Plugs, SPT complete, and other drilling tools and accessories.
Sizes Available:
Diamond core drill bits and diamond non-core drill bits
A-Gauge Core Bits: A, A-RSG, AWG(AX), AWM, AWT, LTK48
B-Gauge Core Bits: B, B-RSG, B-2.400, B3, BWG(BX), BWM, BWT, LTK60, TBW
N-Gauge Core Bits: N, NMLC, NWG(NX), NWM, NWT, TNW
H-Gauge Core Bits: N, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT
P- Gauge Core Bits: P, P3, PWF-Long, PWF-Short
S- Gauge Core Bits: SWF-Long, SWF-Short
U- Gauge Core Bits: UWF-Long, UWF-Short
Z- Gauge Core Bits: ZWF-Long, ZWF-Short
T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76, T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline
T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146
T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146
And all other standard CDDA, DCAMA, Crealius, and ISO sizes.
