| Prod Model: |
SJ90x33 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
Stainless Steel |
| Power Supply: |
380V Three Phase |
| Heating Power(Approx)(Kw): |
8-24 |
| Inverter Brand: |
ABB or FUJI |
| Contactor: |
Siemens |
| Application: |
Water/Gas Supply |
| Warranty: |
12monthes |
| Machine Color: |
as Request |
| Extruder Type: |
Single Screw Extruder |
| Raw Material: |
PE Granule |
| Product Type: |
PE Pipe |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
ISO9001:2008 |
Product Description
PE Water Supply Pipe Machine
Description:
The PE Water Supply Pipe has good quality and our company ensure provide good pre-sales, in sale and after-sales service.
Application:
Applied for manufacture PE/PP supply and drain pipes.
Prcocess:

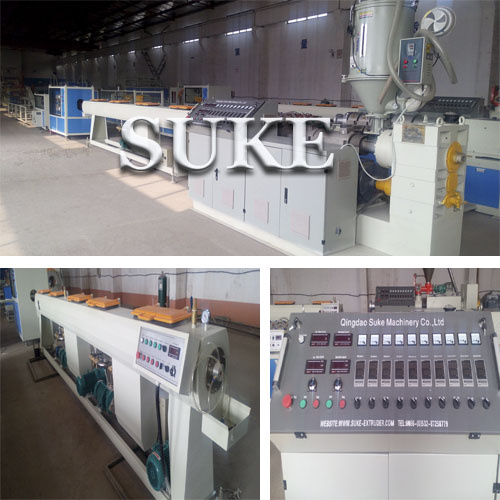

Spring feeding machine ----- Plastic Pe pipe extruding machine ----- Mould ----- Vacuum calibration tank ----Haul off ---- Cutting machine ---- Stacker
Special designed co-extruding die, merely need to replace core mandril, it may produce solid-wall pipe, solid wall inner helix pipe foamed pipe and foam inner helix pipe.
If you want more details about this Pe Pipe Production Line, please contact us.
| model of the water supply pipe | KS-110 | KS-160 | KS-250 | KS-315 | KS-400 | KS-630 |
| Matched extruder | SJSZ51/105 | SJSZ65/132 | SJSZ65/132 | SJSZ80/156 | SJSZ80/156 | SJSZ92/188 |
| OD range(mm) | 50-110 | 50-160 | 75- 250 | 110-315 | 200-400 | 315-630 |
| Length of vacuum calibrator tank(mm) | 6000 | 6000 | 6000 | 6000 | 6000 | 6000 |
| Haul speed(m/min) | 0.6-6 | 0.5-5 | 0.4-4 | 0.3-3 | 0.2-2.5 | 0.2-1.5 |
| Installed power(kw) | 67 | 85 | 95 | 125 | 135 | 255 |
| Total length(mm) | 17000 | 18000 | 20000 | 20500 | 28000 | 30000 |
TRADE TERMS
Payment Term: 30% for prepayment by T/T, 70% for balanced payment by T/T, or L/C can be acceptable
Delivery Time: 40 days after receipt of prepayment.
Packing Method: Packing film or wooden case
Guaranteed Time: 12 months
MACHINERUNNING TEST AND AFTER SERVICE
When machine finished, we will invited client come to our factory to check the machine and do the machine test. If machine is ok, then client pay for the balance. And inspect machine load the container.
When machine arrives client's factory, if client needs, we will send 1-2 engineer to client's factory do the machine installation and running test, and also train the local worker how to operate and maintain the machine. It is chargeable.
If have any question or problem on machine operation or maintain, welcome to contact to us by email or calling. We stand by 24 hours.

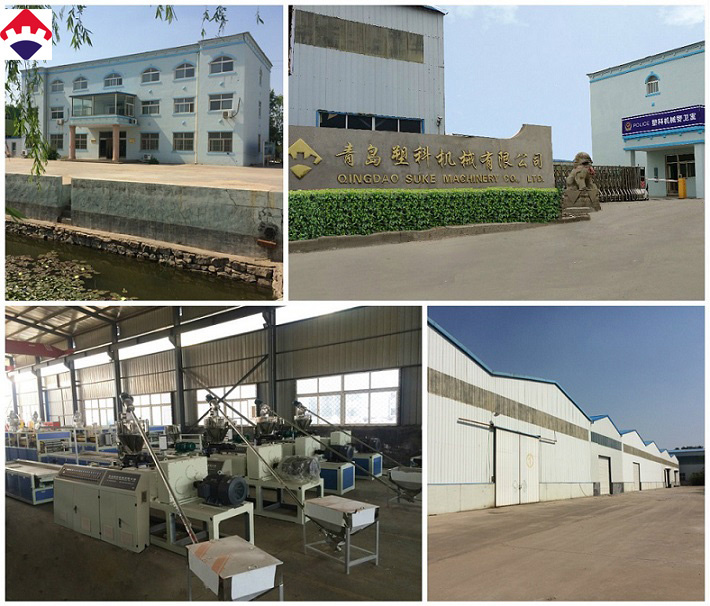

Qingdao SUKE machinery Co. Ltd was founded in 2002 year. Our company is the first independent research and developed of PE double-wall steel hollowness pipe machine in China. The company main products is: PET sheet product machine/ WPC profiles machine/PERT-AL-PERT pipe machine/ PVC, PE, PP sheet ma chine...etc.

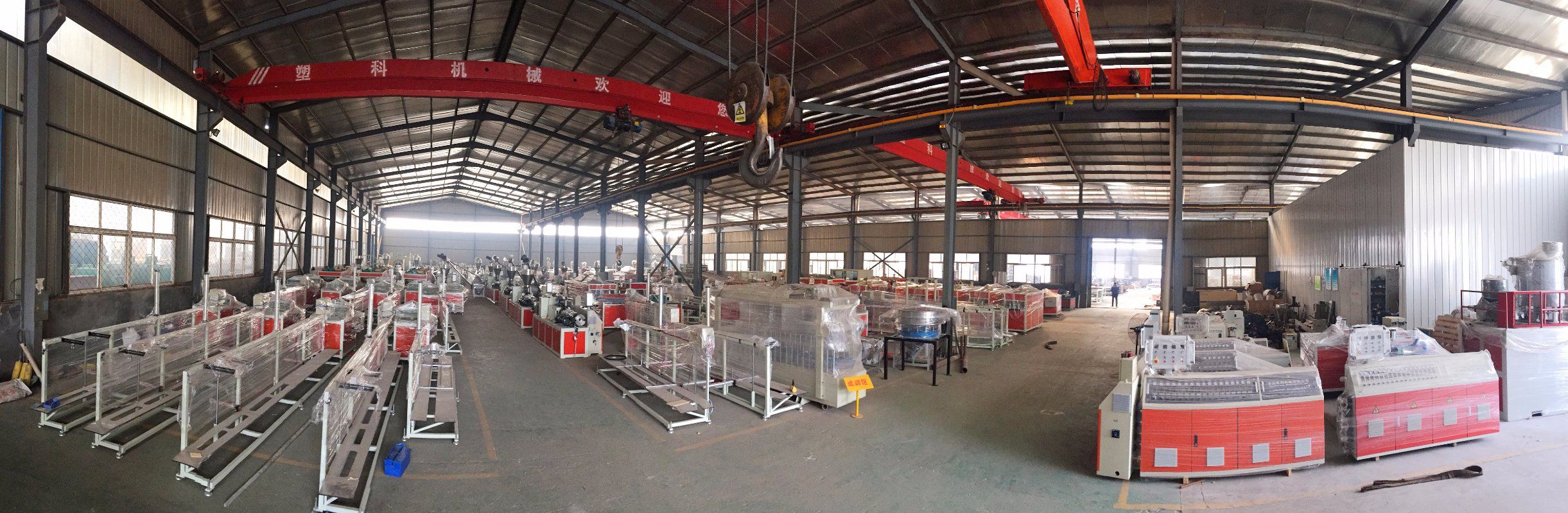

We have advanced machining system, strong technical reserve and perfect inspection system, with high-rank engineers of years' experiences in machine processing, electric automation and long-term sustaining cooperation with a number of colleges and universities. Through borrowing and researching advanced international technologies and engineering in plastic processing, we co-developed and manufactured products such as WPC(wood plastic composite), pipes, profiles, rods, sheets, reinforced bands, packing, stretched filament and ropes, cables, and plastic kneading and re-generation products, up to 10 categories, and 100 specifications, with high automation, high capacity, and stable performances. Our plastic products are involved into the fields such as industry, agriculture, woods, state defense, ocean, mineral, power of electricity, and urban building etc. And our machines are well sold in domestic markets, and also sold to Russia, Ukraine, Turkey, Iran, India, and many countries in South-east Asia, confirmed and appraised by customers from both home and broad, which already
Made sustaining collaborating partnership relations with us.
The company persists in the core idea of satisfactory of the customers and consistent innovation. With the advanced technology and manufacturing equipment, advantaged in creative and first class team, it provides customers with quicker response and high quality services.
