Permanent Magnet Lifter Magnet Lifting Tool
| Price: |
US $ 20-180/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
Magnet Lifter |
| Capacity: |
100-6000kg |
| Safety Factor: |
2.5:1/3:1/3.5:1 |
| Type: |
Small Crane |
| Application: |
Mineral Area Usage |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
| Sling Type: |
Magnet |
| Power Source: |
Magnet |
| Moving Type: |
Hand Operated |
Product Description

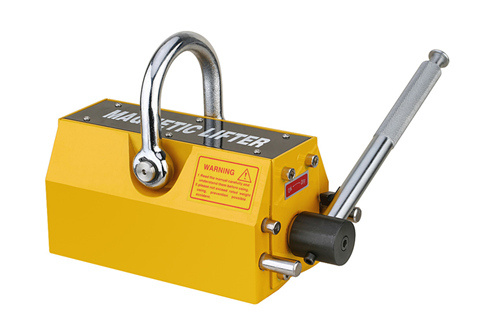

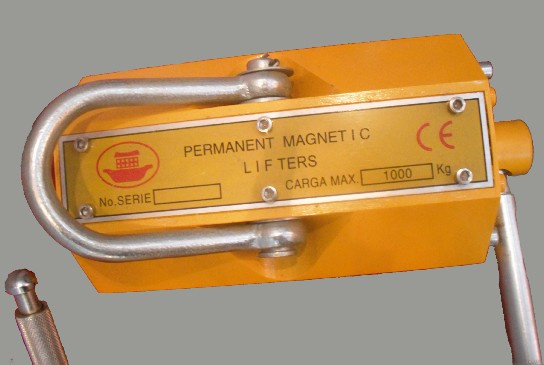

Permanent Magnet LifterStrong permanent magnetic circuit.
Stable and lasting working performance.
Strong pull-off strength.
High safety factor and reliable quality.
Double magnetic circuit lifters.
Strong magnetic path by NdFeb magnetic materials.
Higher magnetism, less weight.
Less remaining magnetism when being off.
New designed handle enable its damper strength lower.
Suitable for thin magnetic-inductive material with thickness over 5mm.
Catalog:
safety factor 2.5:1| Model | Rated Lifting Strength (kgf) | Cylindrical Lifting Strength (kgf) | Max pull-off Strength (kgf) | Operation temperature (ºC) | Net Weight (KG) |
| TC2 150 | 150 | 75 | 300 | <80 | 3 |
| TC2 500 | 500 | 250 | 1000 | <80 | 10 |
| TC2 1000 | 1000 | 500 | 2000 | <80 | 24 |
| TC2 1600 | 1600 | 800 | 3200 | <80 | 50 |
| TC2 3200 | 3200 | 1600 | 6400 | <80 | 125 |
safety factor 3:1| Model | Rated Lifting Strength (kgf) | Cylindrical Lifting Strength (kgf) | Max pull-off Strength (kgf) | Operation temperature (ºC) | Net Weight (KG) |
| TC1 100 | 100 | 50 | 300 | <80 | 3 |
| TC1 300 | 300 | 150 | 900 | <80 | 10 |
| TC1 400 | 400 | 200 | 1200 | <80 | 10 |
| TC1 500 | 500 | 250 | 1500 | <80 | 14 |
| TC1 600 | 600 | 300 | 1800 | <80 | 21 |
| TC1 1000 | 1000 | 500 | 3000 | <80 | 38 |
| TC1 2000 | 2000 | 1000 | 6000 | <80 | 82 |
| TC1 3000 | 3000 | 1500 | 9000 | <80 | 160 |
| TC1 4000 | 4000 | 2000 | 12000 | <80 | 220 |
| TC1 5000 | 5000 | 2500 | 15000 | <80 | 355 |
| TC1 6000 | 6000 | 3000 | 18000 | <80 | 398 |
Tianjin Eastern Union I&E Co., Ltd, is one of the leading Manufacturers & Exporters for lifting equipment and material handling tools which has own factories for over 25 years.
Our company specialize in producing and exporting chain block, lever block, electric hoist, chain sling, hand pallet truck and other lifting and material handling tools, during these years, we occupy the leading position in lifting and material handling industry. All of our products are exported to North America, Middle East, South America, Europe, Asia and Africa. We now have been the important vendors of some famous companies and chain supermarkets throughout the world.
As a multiple-function company, we can also offer global purchases and export services as customers' agencies. Our professional service has gained high trust and international reputation from domestic and overseas customers.
Welcome to our company & factory, we can be your professional and sincere business partners forever.
