| Prod Model: |
FT1011 |
| Color: |
White, Red, Blue, Yellow or as Customerized |
| Standard: |
German Standard |
| Compound Material: |
Aluminium Plastic Compound Pipe |
| Material: |
PEX-Al-PEX |
| Technology Of Plastic Composite Pipe: |
Hot Dip |
| Steel Skeleton PE Pipe Use: |
Municipal |
| Aluminium Plastic Compound Pipe Use: |
Water Distribution Pipe in Building |
| Aluminium Plastic Compound Pipe Material: |
Crosslinked Polyethylene Aluminum Composite Pipe |
| Installation And Connection: |
Fitting |
| Base Pipe Of Plastic Composite Pipe: |
Plastic Pipe |
| Plastic Composite Pipe Model: |
Pex-Al-Pex |
| Plastic Composite Pipe Coating Form: |
Glue |
| Internal Coating Materials Of Plastic Composite Pipe: |
PE |
| Steel Plastic Composite Pipe Model: |
Pex-Al-Pex |
Product Description

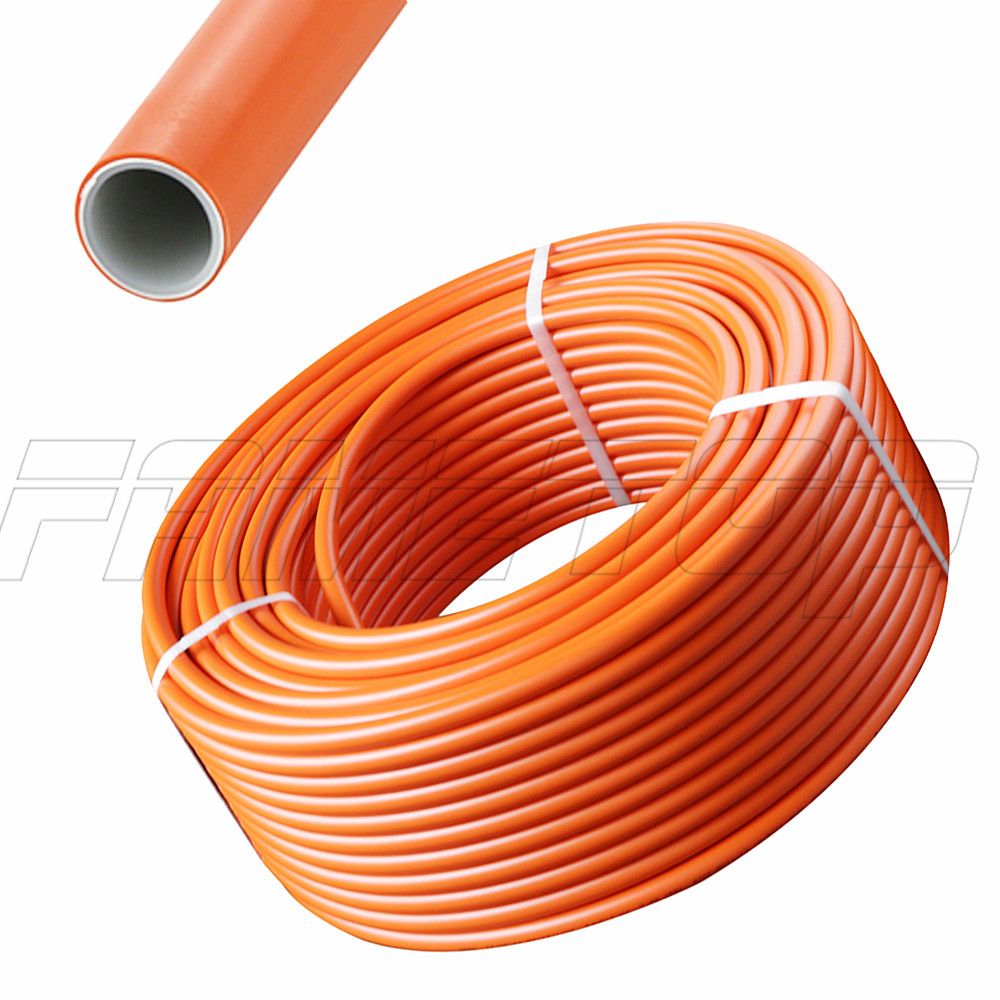

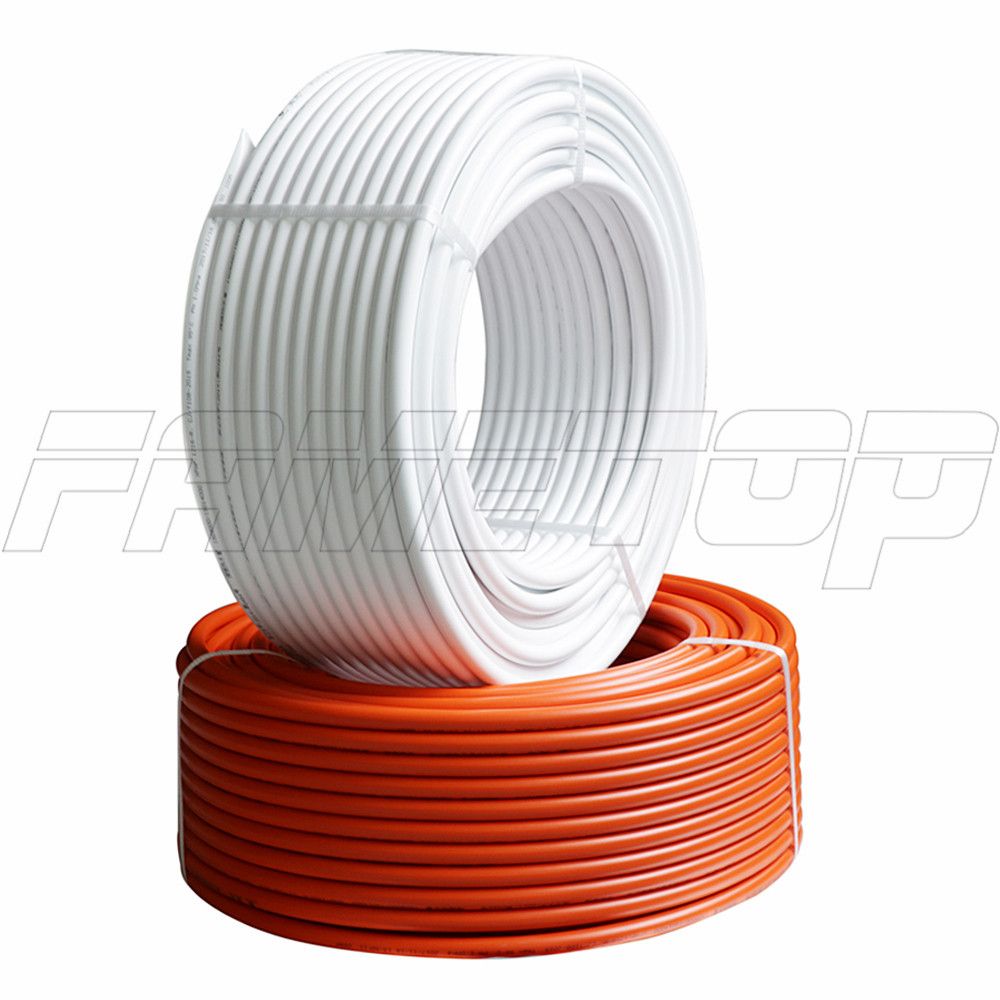

Pex-Al-Pex Multilayer Pipe For Hot Water With German Quality
Overlap-welded or butt-welded;
With CE,ISO Certification;
Coil length:50m,100m or 200m;
Color:White,red,blue,black,yellow or as customerized;

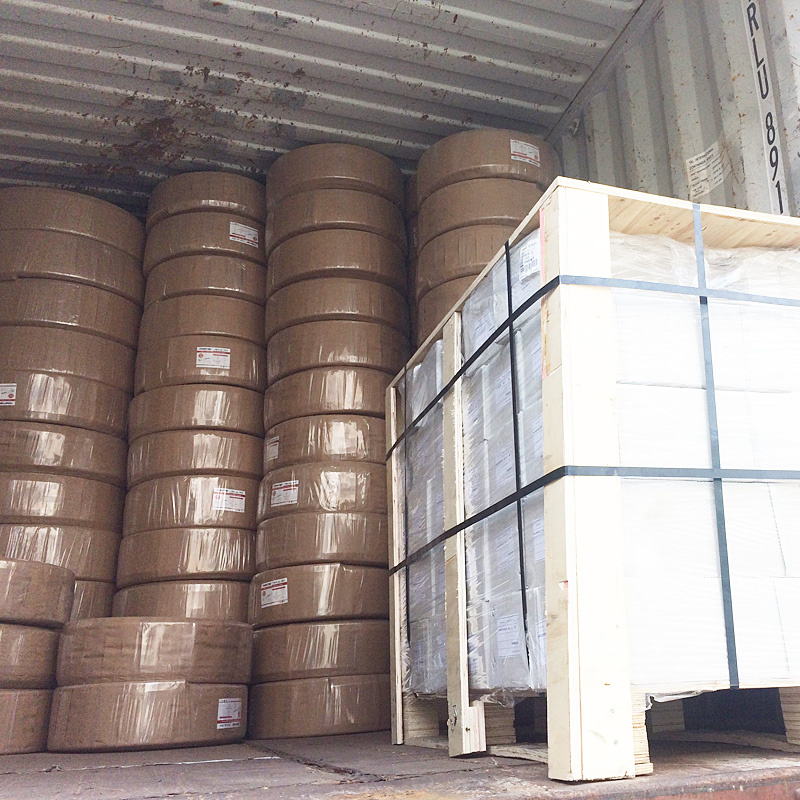

Packing:By kraft paper;PP white film,Carton or pallet;
Standard:DIN EN ISO 21003-2 Certified;
Max working temperature up to 95ºC;
Working pressure 10bars.
Service life: Over 50years;
APPLICAITON:
1) Hot water and cold water pipe for production and domestic use;
2) Heating pipe, pipes used for heating installation on floor and wall, snow-melting devices for buildings in northern, park, airport, and so on;
3) Pipe used for solar energy water heater;
4) Coal gas and natural gas pipe;
5) Drinking water within a certain district, pipe used for reclaimed water project;
6) Piped used for central air conditioner, fan coil;
7) Industrial pipes used for oil transportation and cooling fluid;
8) Pipes used for sleeve of wire or cable;
9) Pipe/tube used for oxygen input in hospital;
SPECIFICATION AND COIL INFORMATION| Norminal(mm) | 14 | 16 | 18 | 20 | 25 | 26 | 32 |
| Outer(mm) | 14.0 | 16.0 | 18.0 | 20.0 | 25.0 | 26.0 | 32.0 |
| Inner(mm) | 10.0 | 12.0 | 14.0 | 16.0 | 20.0 | 20.0 | 26.0 |
| Thickness(mm) | Wall | 2.0 | 2.0 | 2.0 | 2.0 | 2.5 | 3.0 | 3.0 |
| Alu | 0.19 | 0.21 | 0.23 | 0.25 | 0.25 | 0.25 | 0.3 |
| Unit Weight(g/m) | 100 | 110 | 120 | 140 | 210 | 230 | 310 |
| Standard Length(m/coil) | 100/200 | 100/200 | 100/200 | 100/200 | 50 | 50 | 50 |
| CBM/Coil | 0.04/0.06 | 0.044/0.083 | 0.064/0.104 | 0.109/0.064 | 0.101 | 0.11 | 0.125 |
| Color | White/Red/Yellow/Blue/Black/or as customerized |
| Remarks:Aluminum thickness can be made as your requested |
Zhejiang FameTop Pipe Industry Co., Ltd has been in the line of pipe and fitting for plumbing and heating system since 1998, and has been built on a reputation earned for repeatedly providing reliable and trust-worthy products and services. By strictly following policy of "quality fist, custom-oriented", our sales network are expanding very fast both home and abroad. Till now, we've sold our product to more than 30 countries in Europe, Middle East, Africa and Latin America.
FameTop has already obtained ISO 9001: 2008, ISO 14001: 2004 quality system certification, and have complete laboratories instruments covering the inspection from raw material to finished products. Meanwhile, products are certified by European Union CE, German SKZ, Russian GOST-R, in addition, we value very much innovation, and have obtained more than 30 product design patents in China.
FameTop products mainly contain multilayer pipes and fitting for water and gas system, PP-R pipe and fittings, PPR-AL pipes, FR-PPR pipes, PP-R stabi pipes, PEX and PERT one layer pipe and oxygen barrier pipes for floor heating, to meet the quality requirements of different markets, we have different product design for different markets, due to this flexible policy, we won so many praises from our customers, and built very strong and stable business relationship with each other. As the market demands, Fametop enriches continuously its product ranges, aims to provide customers one-stop service, and make each of your buying experience with us easy and enjoyable.
We value each of your connection with FameTop, no matter for product inquiry, a small trial order, or just for some information, sincerely wish to create a brilliant future by our joint-efforts.
