Prod Model: |
HHYD-1532 |
Type: |
Battery Pressing Tool |
Output: |
1.9 Ton |
Pressing Jaws: |
V Type15, 18, 22, 28, 35 (Th Type, U Type, C Type) |
RAM Stroke: |
30 mm |
Pressing Times: |
5s-8s |
Battery: |
12V/1.5ah Li-ion |
Product Description
Apllication
Battery powered pressing tools are the most efficient solution for pressing applications. Simply press a button to apply the required force.
Two-sate hydraulic system automatically switches to power stroke after a fast speed. When the pressing is complete, the ram retracts automatically.
Specification
Model | HHYD-1532 |
Hydraulic Ram Output | 1.9 Ton |
Ram Stroke | 30 mm |
Battery capacity | 120 pressing cycles |
Pressing jaws | V type Jaw : 15, 18, 22, 28, 35 (other type available on request) |
Crimping times | 5s-8s(Depend on the size of pipe) |
Battery | 18V/1.5Ah Li-ion |
Qty of battery | 2 pcs |
Charger | 1 pcs |
Spare seals | 1 set |
Seals for the safety valve | 1 set |

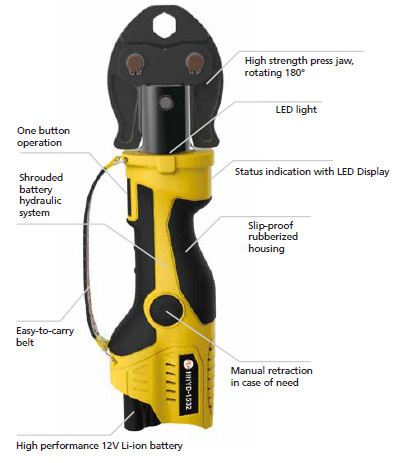

Characteristics
Easy and simple operation, high efficiency and safety.
Pressing jaws confirm to standard GB/T 19228.
Pressing stainless steel fittings up to 35 mm.
Two-stage hydraulic system features fast feed and power stroke upon reaching counter pressure, saving time.
10000+ cycle service life.
Ram retracts to original position automatically when operation is complete.
Manual retraction in case of need.
LED Display indicates operation temperature and times.
Quick motor stop for higher user safety.
Powerful 12V Li-ion battery with low battery warning.
Ergonomic design, extremely light and easy to hold.
