| Prod Model: |
Pile Hammer |
| Motor Power: |
90kw |
| Noise: |
with Noise |
| Max. Frequency: |
2800rpm |
| Suit For: |
Excavator 12- 60tons |
| Size: |
Medium-Sized |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
| Type: |
Suitable with a Wide Range of Excavators |
Product Description
Features
1,It is specially designed for excavator usage.
2,Easily operating and make full use of the hydraulic power of excavator; the hydraulic pressure is adjusted according to the different working situation to reach a proper impact force.
3,This new generation product increases the production efficiency and realizes versatility of excavator.
4,Applied to pull or pile sheet piles, I-steel piles, cement square pile, cylinder pile and many other shapes.

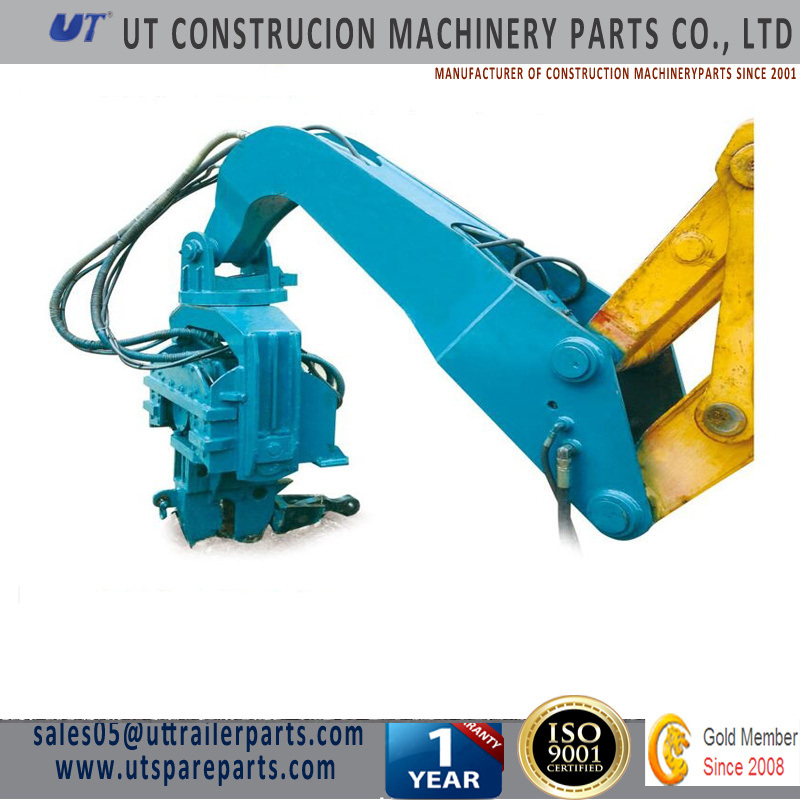

Main components of the vibro pile hammer:
-main body
-vice arm
- Hydraulic sheet pile clamper
We have many models of clamps and vice arms for your selection.
Model | Unit | UT28 | UT38 | UT645 | UT850 | UT955 | UT1270 |
| Suitable excavator | set | 12-15T | 20-22T | 25-30T | 24-36 | 35-40 | 40-45 |
| Eccentric moment | kgm | 3.3 | 5 | 6 | 8 | 9 | 12 |
| Max. Centrifugal force | kn | 280 | 380 | 450 | 500 | 619 | 700 |
| Max. Frequency | rpm | 2800 | 2800 | 2500 | 2500 | 2500 | 2300 |
| Max. Amplitude(without clamp) | mm | 11 | 14 | 17.5 | 15 | 24.5 | 17 |
| Max. Amplitude(with clamp) | mm | 8.5 | 10 | 13 | 11 | 17 | 13.5 |
| Max. Line-pull | kn | 120 | 120 | 120 | 120 | 150 | 180 |
| Max. Hydraulic power | kw | 48 | 71 | 83 | 83 | 150 | 184 |
| Mar. Operating pressure | bar | 350 | 350 | 350 | 350 | 350 | 350 |
| Max. Oil flow | l/min | 110 | 170 | 200 | 200 | 200 | 300 |
| Dynamic weight(without clamp) | kg | 576 | 552 | 590 | 700 | 740 | 1145 |
| Dynamic weight(with clamp) | kg | 750 | 840 | 880 | 1040 | 1160 | 1725 |
| Clamp force | kn | 350 | 500 | 500 | 500 | 500 | 1000 |
| Total weight with clamp | kg | 1080 | 1332 | 1470 | 1490 | 1690 | 2760 |
| Transportation weight | kg | 1130 | 1412 | 1520 | 1540 | 1740 | 2860 |
