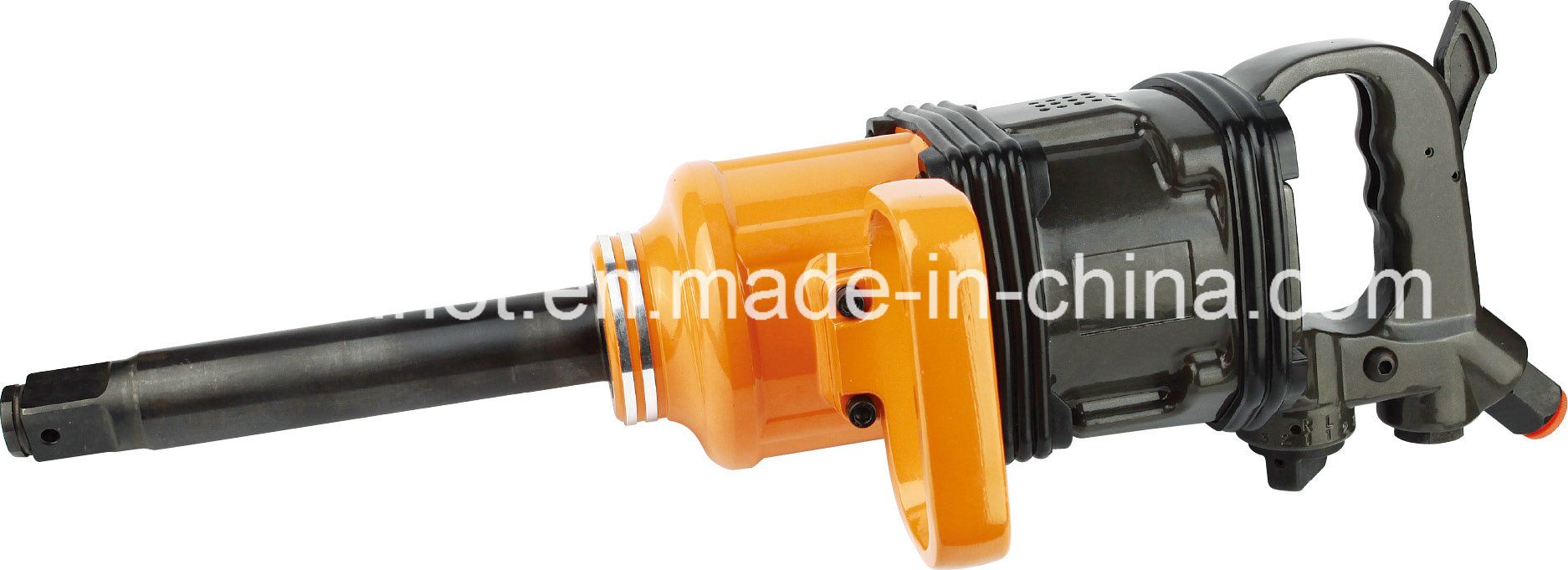

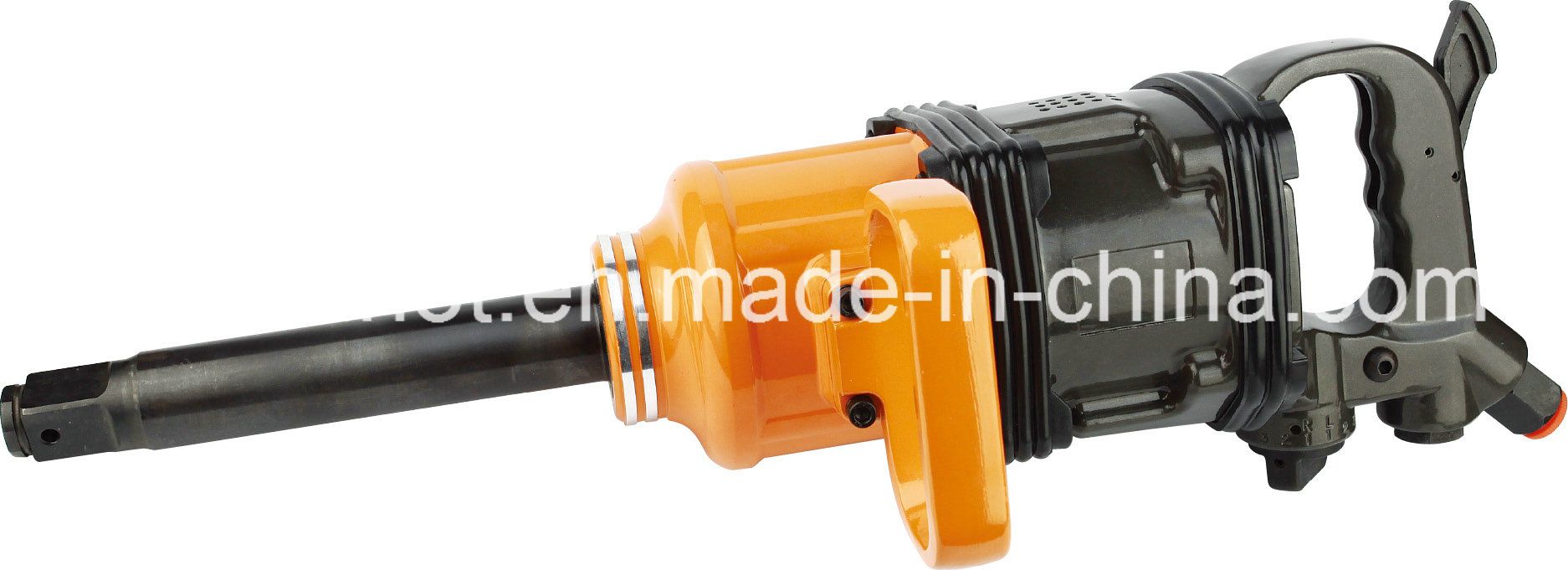

Pin-Less Hammer3
| Price: |
US $ 95/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
RH-231E4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Free Speed: |
4000 Rpm |
| Bolt Capacity: |
41 mm |
| Max Torque: |
2350 N.M |
| Air Inlet: |
1/2'' |
| Air Pressure: |
8-12 Kg |
| Anvil Length: |
8'' |
| Moment Bound: |
1000-2000 N.M |
| Type: |
Machinists Hammer |
| Hammer Material: |
Steel |
| Application: |
Machinist Hammer |
| Explosion-proof: |
Explosion-proof |
| Brand: |
Rh |
Product Description
Pin-less hammer
| Free Speed | Air Pressure | Capacity Bolt | Max Torque | Air Inlet | Anvil Length | Moment Bound | Working Pressure |
| 4000rpm | 8-12 kg | 41 mm | 2350 N-M | 1/2'' | 8''inch | 1000-2000 NM | 90 psi |
Single Size
(h*w*d[cm]) | Single Weight
(kg) | Box Size
(h*w*d[cm]) | G.W/N.W
(kg) | QTY/CTN |
| 73*24.5*19.5 | 14.5 | 73*24.5*19.5 | 14.5/14 | 1 |
One:Safe use
In order to enable you to use the right tools, do not hurt at work, please use the first, carefully read the following, and to strictly enforce the requirements.1,Use air pressure not too big, please comply with national safety standards.
2,In the long-term use of the tool should avoid direct use of the fast air inlet joint.
3,In the use of tools, the replacement of tool accessories or maintenance, be sure to turn off the gas source and the gas source connector.
4,Operation or replacement of tool accessories, please feel free to wear goggles or face protection device, in order to avoid generating foreign body or accidental injury body.
5,When operating tools, do not wear jewelry, around the neck (scarf, tie, etc.), or wear loose clothes, body and work to maintain a certain distance.
6,Do not direct contact with the rotating shaft, avoid hand or other parts of the body to be injured by the tool, and wear gloves to protect the hands.
7,Non professional personnel can not modify the structure of the tool, or replace other manufacturers accessories.
8,Don't stay too long in the aisle or work area, lest the staff be tripped.Two,Maintenance
In order to keep your pneumatic tools for a long time to maintain a good working condition, please according to the following tools for maintenance and maintenance.1,Use appropriate pressure air
Please use the pressure within the scope of 6.3KG/cm-8.0KG/cm (connection tool at the outlet of air pressure value is that working pressure); above the air compressor exhaust volume 520L/min, power 5HP.
If the pressure is too low, the work efficiency of the tool will be significantly reduced or even unable to work.
If the air pressure is too high, although it can make the work efficiency of the tool, but easy to damage the internal parts, shorten the tool life.
2,Use appropriate trachea
Example: 1 "pneumatic pneumatic wrenches tracheal diameter must be 1 / 2" (12.7mm); 3 / 4 and 1 / 2 "pneumatic wrenches tracheal diameter 3 / 8 (9.5mm); use tubes longer, pressure will be lower (pipe tools preferably not more than 10 meters); sanding machine, wind group class, carved mill (pen), as a kind of pipe diameter is 1 / 4 (6.3mm).
3,Use filter
The compressed air in the water, dust, rust and other foreign matter is the result of pneumatic tool parts premature aging, the cause of damage. So the installation of filters is a must. Filter out the air in the air to provide clean and dry air. Filter must have enough traffic, and often add water to wash, otherwise it will affect the normal operation due to traffic problems.
4,Lubrication of tools
All pneumatic tools must be regular and appropriate lubrication, to ensure normal long-term work. Normal lubrication is achieved by the "three point combination" device (water oil price). When the air flow through the water circuit, will the oiler in the lubricating oil atomization, and into the internal tools, lubrication of the parts, parts to reduce the wear rate. Water oil unit should be close to the tool inlet.The choice of lubricating oil is also very important, the use of incorrect lubrication oil but will cause damage to the tool, using pneumatic tools special lubricating oil for motor group, such as sharp horse special pneumatic oil, strictly prohibit using concentrated oil.
If there is no combination of three points, then every time before work from the tool inlet drop 3-6 drops of oil, or in the tool design of the oil hole position, screw out the screw, and then into the oil lock can be.
For with a pneumatic hammer rotating machine per month should be regular inspection hammering lubricating oil is sufficient, the monthly lubricating oil 20 grams, need to pay attention to lubricating oil must be added in the fight against the rotating parts. (-271D TPT-276, TPT, TPT-300D, TPT-241 its strike structure is a double pin hammer, need to fill in the oil or hydraulic oil, other blow structure plus butter)
Gears, bearings, these key parts of the activity should be regularly inspected, cleaned, refueling and other maintenance.5,Sleeve requirements
Pneumatic wrench type tool in use should note sleeves are with pneumatic iron shaft square head connected well, cannot use unqualified sleeve, wear sleeve. This prevents torsion without tool consumption, wear iron shaft head. t damage.
Note: pneumatic tools in use process such as the occurrence of torque force is insufficient, does not turn, do not blow, blow force becomes smaller, etc., please control over the use of itemized inspection instructions.
