| Price: | US $ 1-20/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |
| Prod Model: | CLP |
|---|---|
| Surface: | Electro Plated |
| Material: | Carbon Steel |
| Connection: | Female |

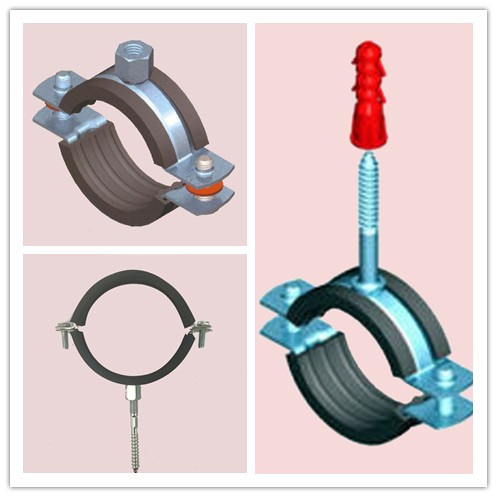

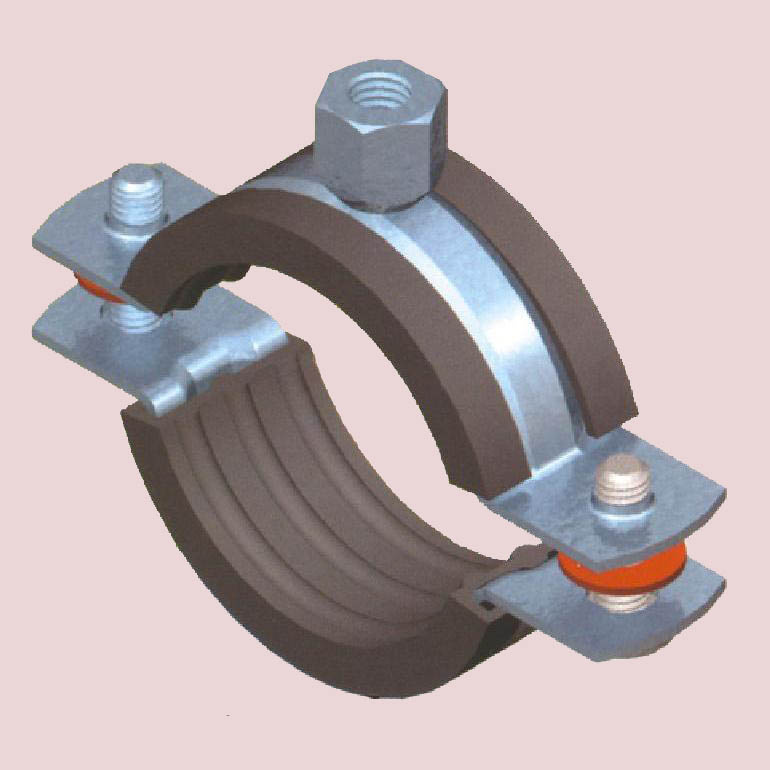

pipe clamp with rubber lining
used for mounting of pipes to the walls (vertical/horizontal)
ceilings and floors
plastic plug should be used for fixing
easy and safe assembly thorough philips combi side screws
side screw are protected agaisnt loss during assembly with
the help of plastic washers
electro galvanized against corrosion protection
| Size | RANGE | hex coupling nut | Locking Screw | dowel screw rod | PE expension tube | stainless band | |
| INCH | DN | фD (mm) | TKS*W(MM) | ||||
| 3/8" | DN10 | 15-19 | M8+10 | M5X15 | M10*100 | M10*50 | 2.0X20 |
| 1/2" | DN15 | 20-25 | M8+10 | M5X15 | M10*100 | M10*50 | 2.0X20 |
| 3/4" | DN20 | 26-30 | M8+10 | M5X15 | M10*100 | M10*50 | 2.0X20 |
| 1" | DN25 | 32-36 | M8+10 | M5X15 | M10*100 | M10*50 | 2.0X20 |
| 1-1/4" | DN32 | 38-43 | M8+10 | M6X20 | M10*100 | M10*50 | 2.0X20 |
| 1-1/2" | DN40 | 47-51 | M8+10 | M6X20 | M10*100 | M10*50 | 2.0X20 |
| 2" | DN50 | 60-64 | M8+10 | M6X20 | M10*100 | M10*50 | 2.0X20 |
| 2-1/2" | DN65 | 75-80 | M8+10 | M6X25 | M10*100 | M10*50 | 2.0X20 |
| 3" | DN80 | 87-92 | M8+10 | M6X25 | M10*100 | M10*50 | 2.0X20 |
| 3-1/2" | DN90 | 99-105 | M8+10 | M6X25 | M10*100 | M10*50 | 2.0X20 |
| 4" | DN100 | 107-112 | M8+10 | M6X25 | M10*100 | M10*50 | 2.0X20 |
| 5" | DN125 | 138-142 | M8+10 | M6X30 | M10*100 | M10*50 | 2.0X20 |
| 6" | DN150 | 159-166 | M8+10 | M6X30 | M10*100 | M10*50 | 2.0X2 |
