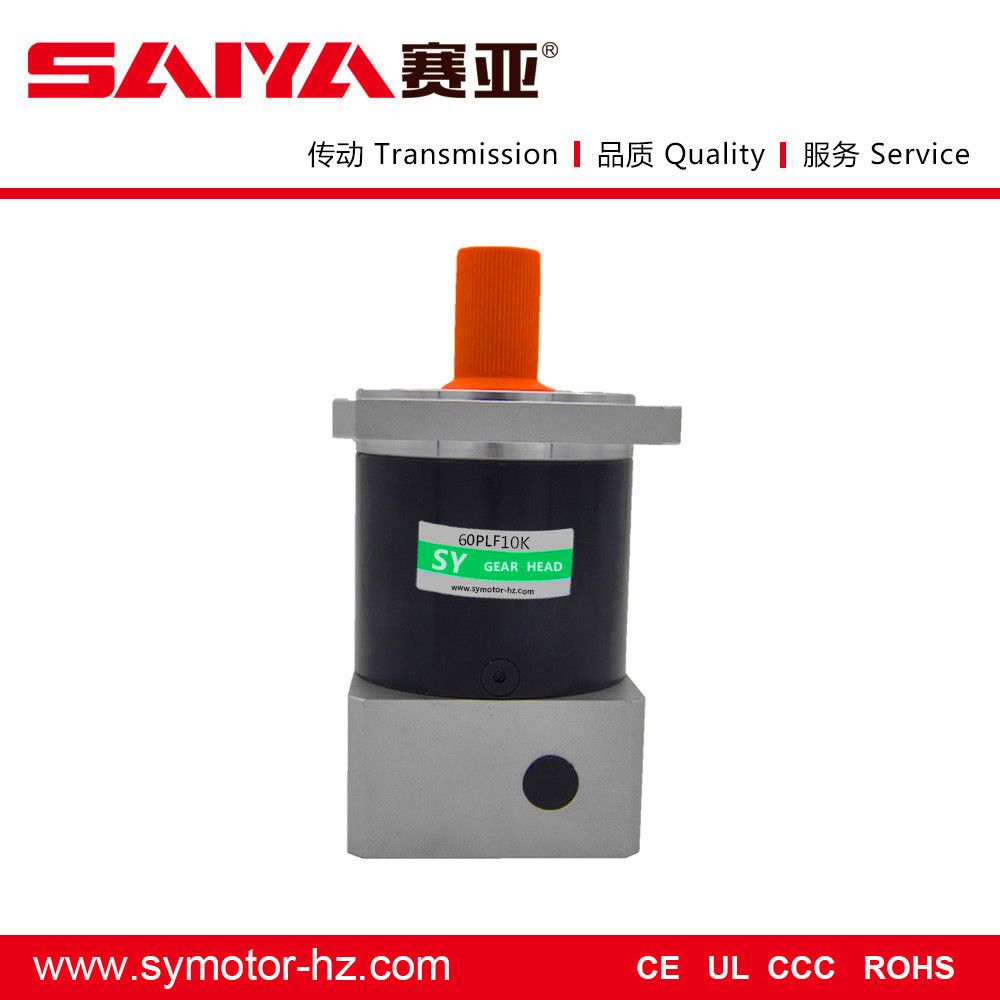

Planetary Reducer with High Precision
| Price: |
US $ 82.5-96.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
60PLF10K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Gearing Arrangement: |
Planetary |
| Output Torque: |
15 |
| Input Speed: |
Recommend 4000rpm |
| Output Speed: |
Max 8000rpm |
| Is Customized: |
Yes |
| Reduction Ratio: |
3--10 |
Product Description
It's only the typical data.
The gear motor can be customized if you have some special requirements such as the gear ratio, torque and shaft dimension.
The motor price is also for reference only and it will be decided by the reduction ratio and body's length.
If you have any questions, pls do not feel hesitate to ask us. You can send us messages, emails or give us a call.
Features:
1) Series: PLE, PLF
2) Gearbox outline dimension: 40, 60, 80, 120, 160
3) Reduction ratio: 3, 4, 5, 8, 10, 9, 12, 16, 20, 25, 32, 40, 64, 60, 80, 100, 120, 160, 200, 256, 320, 512
4) Lubrication: Lifetime lubrication
5) Input speed: 3000- 6000rpm
6) Life: 30, 000 hours
7) Backiash: Stage 1: <8 (arcmin)
Stage 2: <10 (arcmin)
Stage 3: <12 (arcmin)
8) Operating temperature: -25C to +90C
There are three degrees of this gearbox and they are different because of the gear ratio:
The first stage: 3, 4, 5, 8, 10
The second stage: 9, 12, 16, 20, 25, 32, 40, 64
The third stage: 60, 80, 100, 120, 160, 200, 256, 320, 512
The precision planetary is more compact in structure and has high precision with small backiash. It can also be used for a long time as 30, 000 hours and has huge output torque.
You can tell us about your requirements, and we will help you to find the right type and model which is suitable for your products. Or you can also provide your products information and we can help you to choose the right motors for you.| Product type | PLF40 | PLF60 | PLF80 | PLF120 | PLF160 |
| Number of stage | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 |
| overall length | 93.5 | 106.5 | 119 | 113 | 126 | 138.5 | 143.5 | 161.5 | 179 | 191.7 | 219.5 | 247 | 285.5 | 335 |
| body length | 39 | 52 | 64 | 46.5 | 59.5 | 72 | 60 | 78 | 95.5 | 73.7 | 101.5 | 129 | 104 | 153.5 |
| output |
| output shaft length | 26 | 35 | 40 | 55 | 87 |
| output length from the shaft shoulder | 24 | 30.5 | 36 | 50 | 82 |
| key length | 16 | 25 | 28 | 40 | 70 |
| length from the key to the shagt end | 2.5 | 2.5 | 4 | 5 | 5 |
| spigot length | 2 | 3 | 3 | 4 | 5 |
| output flange thickness | 6 | 8 | 10 | 15 | 15 |
| output shafter diameter | ø10 | ø14 | ø20 | ø25 | ø40 |
| shaft shoulder diameter | ø12 | ø17 | ø25 | ø35 | ø55 |
| spigot diameter | ø26 | ø50 | ø80 | ø110 | ø130 |
| output flange | 45 | 60 | 90 | 120 | 175 |
| hole circle | ø50 | ø70 | ø100 | ø130 | ø185 |
| mounting hole | ø3.5 | ø5.5 | ø6.5 | ø8.5 | ø11 |
| key width | 3 | 5 | 6 | 8 | 12 |
| key heigth | 11.2 | 16 | 22.5 | 28 | 43 |
| center screw hole | M3*9 | M5*12 | M6*16 | M10*22 | M12*25 |
| input |
| input flange length | 24.3 | 31.5 | 43.5 | 63 | 94.5 |
| motor shaft length | 25 | 30 | 40 | 55 | 79 |
| spigot depth | 6 | 10 | 10 | 12 | 12 |
| hole circle | ø46 | ø70 | ø90 | ø145 | ø200 |
| spigot diameter | ø30 | ø50 | ø70 | ø110 | ø114.3 |
| input shaft diameter | ø8 | ø9 | ø14 | ø14 | ø19 | ø19 | ø24 | ø30 | ø35 |
| assembling screw hole | M4*10 | M5*15 | M6*15 | M8*22 | M12*25 |
| input flange | 40 | 60 | 80 | 130 | 175 |
The brief introduction of our company:
Our company supplys different kinds of products. High quality and reasonable price.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
To perfect our service, we provide the products with good quality at the reasonable price.
The Products Of Our Company:
Our Company Is Specialized In Gear Motors. At Present, There Are Three Kinds Of Motors In Our Company:
1) Micro Gear Motor Include Micro AC Gear Motor And Micro DC Gear Motor;
2) Small AC Gear Motor;
3) Planetary Gear Motor.
The Usages Of Our Products:
They Are Widely Used In Machine Tools, Textile Machinery, Medical Appliance, Conveying Machines, Printing Mechanism, Food Machinery, Vending Machines, Packing Machinery, And Gumming Machines. With Excellent Equipment, Advanced Procedure, Scientific Management, And Modern Test Method, We Can Provide All Customers Both At Home And Abroad With Our Top Quality Products, Favorable Prices And Sincere Service.
You Can Tell Us About Your Requirements, And We Will Help You To Find The Right Type And Model Which Is Suitable For Your Products. Or You Can Also Provide Your Products Information And We Can Help You To Choose The Right Motors For You.
We Hope That We Can Establish Long-term Business Relationships Together With You For Mutual Business Success.
Motor Voltage, Power, And Speed Will Be Customized According To Your Request Under The Allowed Circumstanced Of Adoptable Dimension
