Plastic Bucket Making Injection Molding Machine & Mold
| Price: |
US $ 1-500000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
HJF240 |
| Type: |
Injection Blow Molding |
| Structure: |
Horizontal |
| Plastic Type: |
Thermoplastic |
| Plasticizing Way: |
Plunger Type |
| Clamping Way: |
Mechanical |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Certification: |
ISO9001:2008 |
Product Description

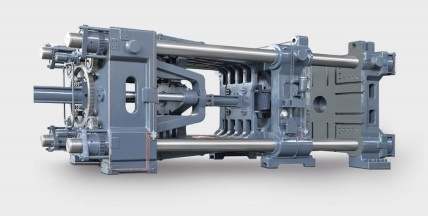

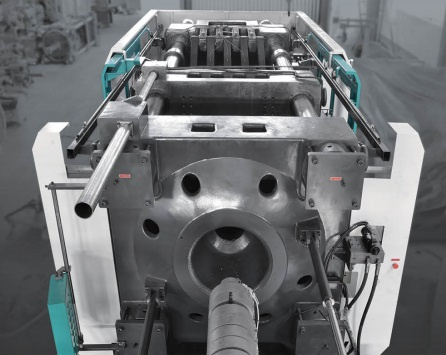

HAIJIANG plastic parts injection machine features:→ bigger space between tie-bars→ central-clamping structure → famous components → energy saving with servo motor → low noise, fast respons → high precision, Stable and super long life→ T-Slot Platen → abundant Spare Parts→ better price Clamping Unit:1. Optimized Platen Design with high rigidity and enlarged space between tie bars 2. Euromap-based Platen Layout with both T-slot & tap holes, locating design in moving platen to better suit various molds 3. New ejection system design with longer ejection stroke, bigger space and better rigidity 4. Hydraulic drivien gear-type mold height adjustion mechanism 5. Relocation of mechanical safety interlock for easier operation 6. linkage structure for front connecting rod increases connectingrod's strength greatly, as well as the whole clamping unit's rigidity & accuracy.
Injection Unit:1. High Quality Linear Motion Guide ensure the smooth & accuracy of injection process 2. High Speed & Pressure injection structure can improve the injection speed 3. Twin nozzle cylinder ensures more even & stable structure 4. Specilized screw barrel design for various appliance

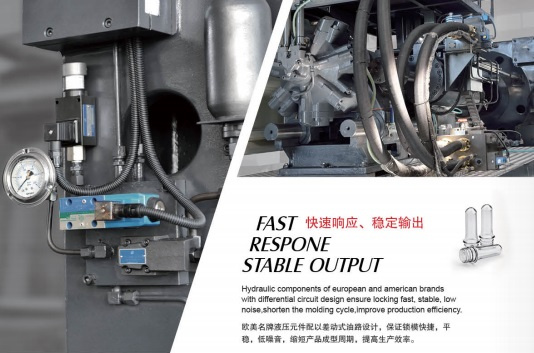

Hydraulic System:1. The double proportional compound valve control system pressure & flow, highly sensitive & stable 2. Imported high quality Pump, low in noise, long in lifespan & stable in performance 3. World-famous servo hydraulic system optional, better performance in lower noise & energy saving 4. The precise feedback control of servo system to the pressure & flow, with higher sensitivity & more accurate repeatability precision 5. High performance hydraulic valve, less failure, fast switch, convenient maintenance 6. Low pressure mold protect system, which is more suitable for the precise mould 7. Greese & lubrication oil in dependent lubrication system can lubricate everywhere in the best situation

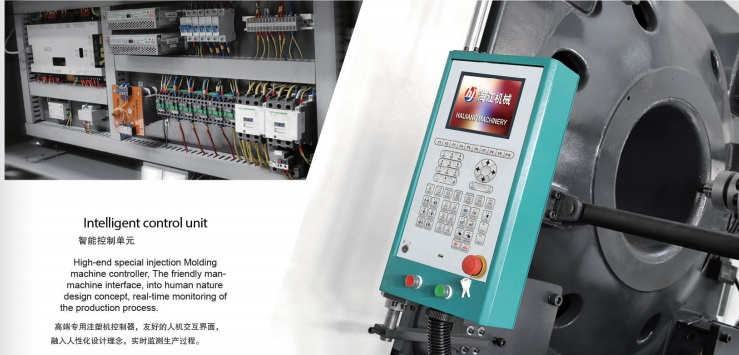

Electrical System:1. Control by double CPU, the system HMI use X86 300MHz technical grade display. The system employees a RISC 140MHz microprofessor, with high speed, noise-immunity, fan-less and lower power consumption, independent control structure improve the stablity of control 2. 8.4" display screen with resolution 800*600, user friendly screen & optional choose of language 3. Equiped with USB(2.0) port & ethernet(100-base T) ports 4. 32 Points input & output, entendable and trouble spot can be replaced easily 5. Linder transducer's resolution is 1/65535, more precise in control 6. 120 technological parameters access can be stored & uploaded with an ordinary USB drives 7. Injection End and temperature tracking is curve display, dynamic recorder parameter is modified, dynamic warningis exhibited, all these make the operation more convenient.

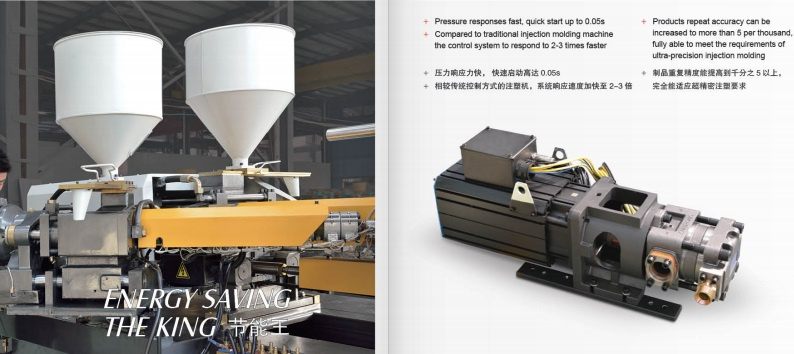

Servo Controller Part:1. High Precise Control The servo system can control the machine's pressure, speed & location precisely, make sure that the error of accurate repeatability precision for the shot measurement is <0.3% 2. High sensitive response Because the motor vector is matched with the controller accurately, it only takes 0.5sec. inputing the number from 0 to max. Compared with other traditional hydraulic injection molding machine, HJ series is more faster in speed with shorter cycle time and high efficient in production 3. Low noise Compared with traditional fixed pump & variable pump system, the noise is 1/10 lower under normal circumstance, more suitable for sealed dustless workshop 4. Energy Saving Overall efficiency is 10% more & driving capacity is 18% more than common machine. This series can save 40-80% energy, and achieve first-class energy efficency 5. Water cooling saving The system condition prevent high pressure uploading without any power output, leads to the water cooling saving
| Parameter | Unit | HJF118-F5 |
| Screw diameter | mm | A | B | C |
| 35 | 38 | 40 |
| Screw I/D ratio | L/D | 23.9 | 22 | 20.9 |
| shot volumn (theoretical) | Cm3 | 154 | 181 | 201 |
| injection weight(PS) | g | 141 | 165 | 183 |
| injection rate | g/s | 80 | 95 | 105 |
| injection pressure | Mpa | 219 | 186 | 167 |
| screw speed | r/min | 0~220 |
| clamp force | KN | 1180 |
| opening stroke | mm | 340 |
| space between tie bars (W*H) | mm | 370*370 |
| max mould height | mm | 400 |
| min mould height | mm | 150 |
| ejector stroke | mm | 100 |
| ejector force | KN | 33 |
| ejector number | PC | 5 |
| max pump pressure | Mpa | 16 |
| pump motor power | KW | 11 |
| heating power | KW | 6.5 |
| machine dimension | M | 4.2*1.25*1.8 |
| machine weight | T | 3.5 |
| oil tank capacity | L | 210 |
FAQQ1. What is the warranty for the injection molding machineA1:Total 18 month,Included machine platen,base,injection unit,clamping unit.Q2:Can you sending engineer to oversea install machine and trainning customer's workers.A1: Yes,We will send engineer to customer factory install the machine or trainning customer's workers. in one week,total free. After one week, 50$ per day
Q3:How Many spare parts you will prepare for customer?
A3: Spare parts included: mould clamp, long and short nozzle,heating band,Wrench,Switch,Thermocouple,Operation manual Tool box,Lubricate Oil,Sealing,Filter etc.Q4:Computer sytem,Except English, can you change other language,say: French,Spanish,Arabic,Russian.
A1:Yes,when you place order,please tell us the language which you required. Standard one with English,Japanese,Chinese,Korea.
Q5:Can you change the power source for us? Say:we need 3 Phase 220V 60HZ
A5: When you place order,please write clearly.Then we will change the electric system for you.
Q6:If i Need Green Color machine,can you do it for us?
Q7: Yes,please give us the color sample.So we can do it for you. Cindy Zhang Tel:+86 18368093243 Http://www.china-haijiang.comNingbo Haijiang Machinery Manufacturing Co.,Ltd.Address:Next to the treasure Bringing the road, Yinzhou District, Ningbo (Tong Industrial Zone)
Ningbo Haijiang Machinery Manufacturing Co., Ltd. is situated in Ningbo Yinzhou Investment & Innovation Center, covering an area of more than 50, 000 Square meters. Our company was established in 1992 and now employs a staff of more than 500 people.
Hangzhou Shuoneng Import & Export Co., Ltd is our export office in Hangzhou City. We have a team dealing with Plastic Machinery, Moulds, Textile Machinery, Car Washign System, Blind Machine, LED Lightings and other machinery.
Haijiang Company is a high-tech enterprise specialized in manufacturing injection molding machines that mainly covers dozens of specifications with injection shot of 45-20000g and mold clamping force of 400-15, 000KN. Based on the marrow of the trade gained through years' accumulation, our company has made constant innovation to ensure the machine quality. Parts built into the machines of different mold clamping forces are all processed under specialized management. HJF series injection molding machines are developed by Haijing Company on the basis of a collection of the advantages assimilated from all world famous brand firms with optimized design realized by CAD/CAM/CAPP where technical problems such as noise of the entire machine and low energy dissipation are removed and the design quality of products is secured.
Our company adopts advanced equipment and technology and applies scientific management. Besides, we have introduced high-precision fully automatic CNC machines fitted with imported electric and hydraulic parts, which have tremendously improved the accuracy and steadiness of the whole machine. Our present products such as HJK and HJF series injection molding machines have diversified specifications and we can accept special order from users. Our machines are used to produce high-precision thermoplastic products and widely applied in the electronic, automobile and civil industries.
