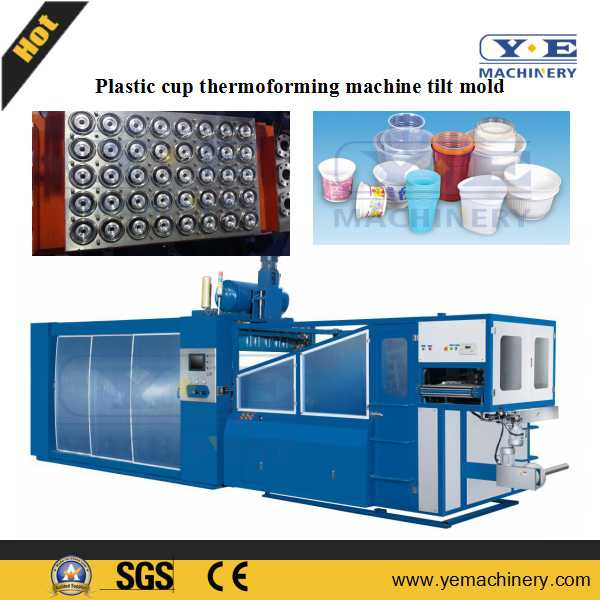

Plastic Cup PP Pet Thermoforming Machine Tilt Mold with Auto Stacker
| Price: |
US $ 10000-180000/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
TF70 |
| Color Of Thermoforming Machine: |
Light Gray and Green |
| Material Of Thermoforming Machine: |
Cast Iron |
| EPC For Thermoforming Machine: |
China Brand |
| Inverter For Thermoforming Machine: |
Yaskawa |
Product Description
Use:It is an ideal equipment to form PP,PS,HIPS,PVC,PET plastic sheets,which can be widely used to produce all kinds of plastic boxes, containers and other plastic wares, such as disposable cups, ice-cream cups, milk cups, chocolate boxes, candy boxes and fast-food boxes etc.
Features:
Tilt-mold Thermoforming Machine is a combination of mechanical, electrical and pneumatic components. With the 6 cam-controlled toggle lever system ensures high forming and punching forces. The machine has man-machine interface, sending sheet by chain, cutting by mould knives, and overturned mould can stack products automatically. The whole system is controlled by PLC, combining the preheating, material feeding, heating, drawing, forming, cutting and stacking into one unit.
Main Parameters:
| Model | TF70-A | TF70-B |
| Maximum forming area | 300*680mm | 450*680mm |
| Maximum forming depth | 150mm
(available to customize 180mm) | 150mm
(available to customize 180mm) |
| Maximum width of sheet | 700mm | 700mm |
| Thickness range of sheet | 0.3-2mm | 0.3-2mm |
| Maximum sheet roller diameter | 1100mm | 1100mm |
| Speed | 28-35(cycles/min) | 28-35(cycles/min) |
| Air pressure | 0.7Mpa | 0.7Mpa |
| Air consumption | 2000 (Liters/min) | 2000 (Liters/min) |
| Water consumption | 15 (Liters/min) | 15 (Liters/min) |
| Heating power | 100 Kw | 100 Kw |
| Main engine servo power with drive | 11 Kw, Mitsubishi, Japan | 15 Kw, Mitsubishi, Japan |
| Rewinding motor power | 0.55Kw | 0.55Kw |
| Power | 3x380V+N+PE(±10%)50Hz | 3x380V+N+PE(±10%)50Hz |
| Size of Machine | 8500mm*2300mm*2650mm (L×W×H) | 8500mm*2300mm*2650mm (L×W×H) |
| Weight | 9000kgs | 9000kgs |

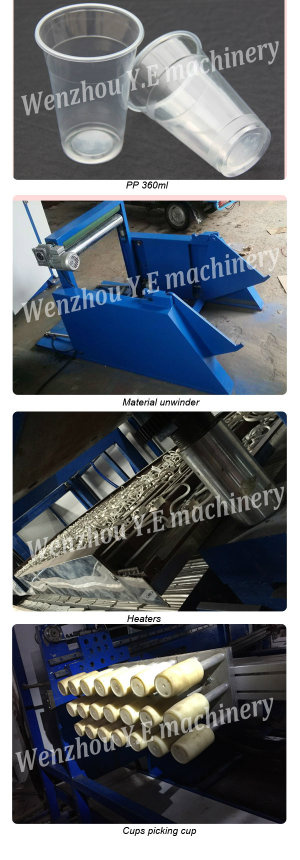

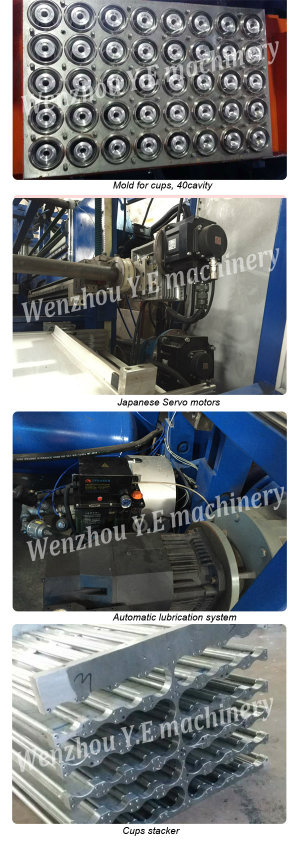

Machine details:
Wenzhou Y. E Machinery is manufacturing and trading combo, specialize in plastic and paper machinery. Products range:
>> Full Plastic bag making line, included in film blowing machine, printing machine, coating and laminating machine, slitting and rewinding machine, plastic bag making machine, plastic recycling machine.
>>Paper bag making machine, paper handle making machine, paper rope making machine.
>> Automatic thermoforming machine for cups, tray, bowl, box, container, lid. High speed PP lid making machine. Included in sheet extruder machine, packing machine for cups and lids.
>> Printing machine for film, paper, cup, label.
>>Paper board foil stamping and die cutting machine
>> Sourcing. Your good partner in China, we have relationship for machinery factory, technique and service support.
Advantages of our company:
1. We focus on machine quality from raw material, parts (Roller, bearing, gear, sealing bar, knife, servo motor, inverter, electronics, etc), processing, assembling, painting, adjustment, test run, to package. Partner brand we used: Panasonic, Yaskawa, Schneider, Delta, NSK, SICK, CHINT, etc.
2. Professional before and after sale service, especially for after-sale service, we always act fast and offer proper solution for parts damages during transportation, operation question, machine improvement and spare parts demand.
3. Expert engineer team for technique support during production, and operation problems.
4. Skilled workers to ensure the processing and assembling quality of machine.
5. Full experienced technicians for test run, machine installation and operating training.
6. Experienced order operator and documentary, skilled at Incoterm FOB, CFR, CIF, DDU, DDP, to avoid any trouble during loading, shipping, and customs clearance document.
You can reached by email, telephone, and fax. We are bilingual, easily accessible and readily available. Always glad to help you in your endeavors.
