| Prod Model: |
WSDW-GP |
| Apply: |
Marble Block Squaring |
| Diameter: |
8.5mm-11.0mm |
| Reinforcement: |
Plastic |
| Cutting Condition: |
Wet |
| Diamond Beads: |
37PCS/Meter |
| Quality: |
Prmium, Standard |
| Delivery Time: |
7-10 Days |
| Feature: |
Fast Cutting, Stable Performance |
Product Description

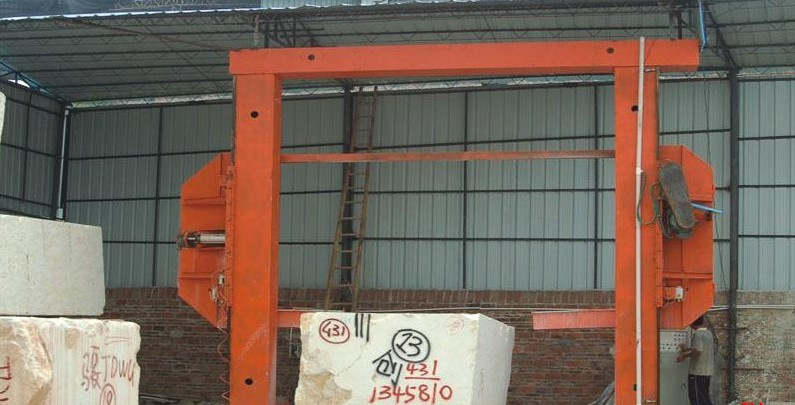

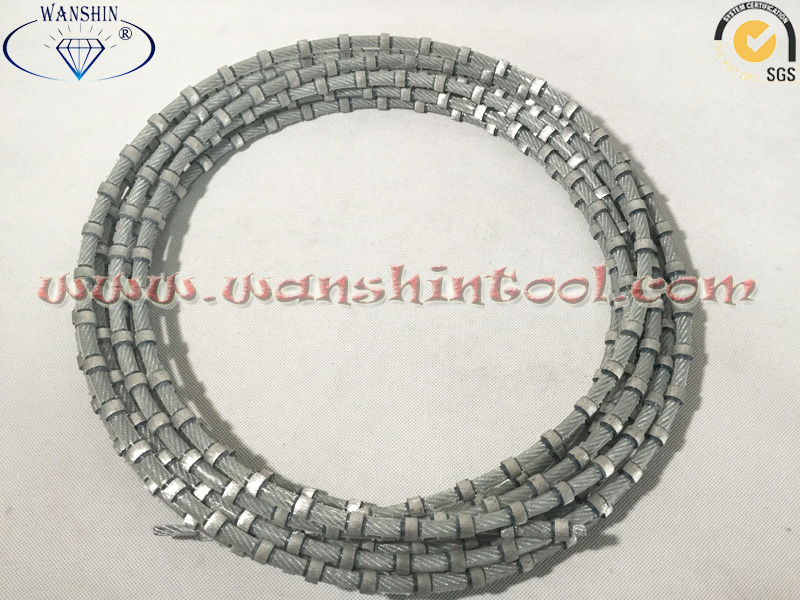

Diamond Wire Saw for Granite Squaring and Cutting
Theses kind Diamond Wire Saw can be used to dissect and get the standard block. They have following specialties:
· The wire allows significantly greater sawing heights than large discs. It is possible to cut large block by diamond wire;
· Thinner cutting width, and more precise;
· By virtue of its reliability, adjust the cutting techniques according to different stone material;
· Noise nuisance generated by diamond wire saw is significantly less than produced by other sawing techniques;
· Less pollution
Diameter
(mm) | Code No. | Fixing Type | Beads No.
pcs/M | Material type | Linear speed (m/s) | Sawing speed (mm/min) | Wire life(m2/m) |
| 11.0 | WSDW-GS01 | Plastic+rubber | 37 | Class 1-2
Class 3-4
Class 5 | 26-30
22-26
18-22 | 4-7
2-4
1-3 | 14-20
8-14
4-8 |
| 10.0 | WSDW-GS02 | Plastic+rubber | 37 |
| 9.0 | WSDW-GS03 | Plastic | 37 |
| 8.8 | WSDW-GS04 | Plastic | 33/37 |
| 8.5 | WSDW-GS05 | Plastic | 33/37 |
