Plastic Injection Insecticidal Spray Bottle Cap Mould
| Price: |
US $ 1800cavity |
| Min Order: |
1cavity |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
YS20170421 |
| Name: |
Plastic Mineral Water Cap Mould |
| Mould Material: |
45#, P20, 718, 2738, Nak80, S136 etc. |
| Mould Base: |
Lkm, Hasco, Dme |
| No,Cavity: |
Single or Multi |
| Mould Life: |
3, 000, 000 Times |
| Equipment: |
CNC, Nc EDM, Wire-Cutting, Large-Scale... |
| Shaping Mode: |
Injection Mould |
| Process Combination Type: |
Progressive Die |
| Application: |
Outdoors |
| Installation: |
Fixed |
| Standard: |
Standard |
| Plastic Material: |
PP, PC, PS, PE, PVC, ABS, HDPE, LDPE... |
| Design Software: |
Ug, PRO-E, Solidworks, CAD Et.. |
| Runner: |
Cold/Hot, Hot Runner |
Product Description
1.ADVANTAGE:
1.Saving 10%-30% cost than others.
2. Direct factory price
3. Life:3, 000, 000 time
4.2D and 3D provided
5. Quick T1 time: 25-40 days
6.More than 15 years experience

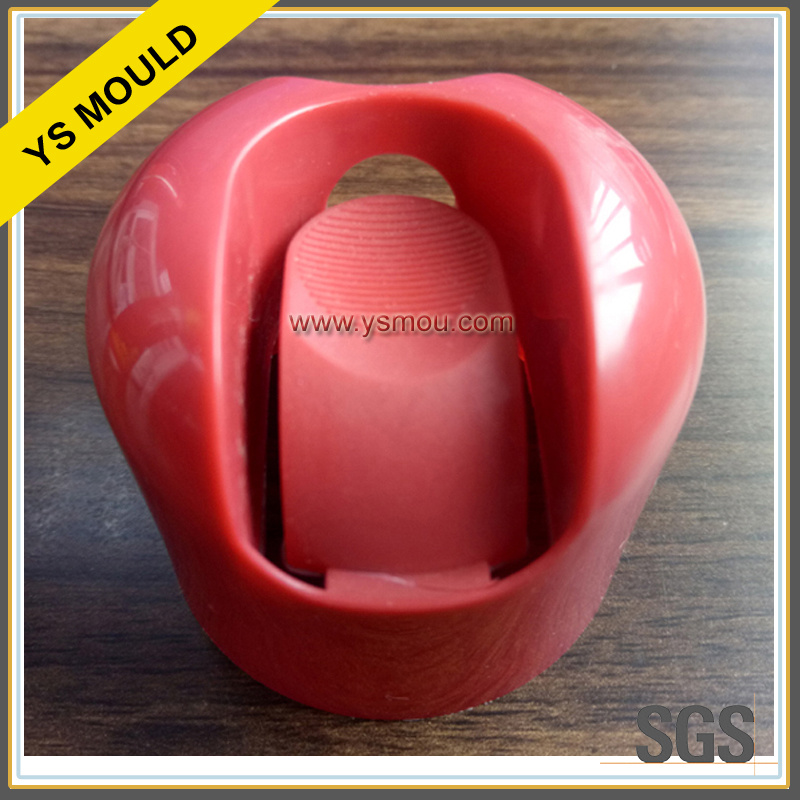

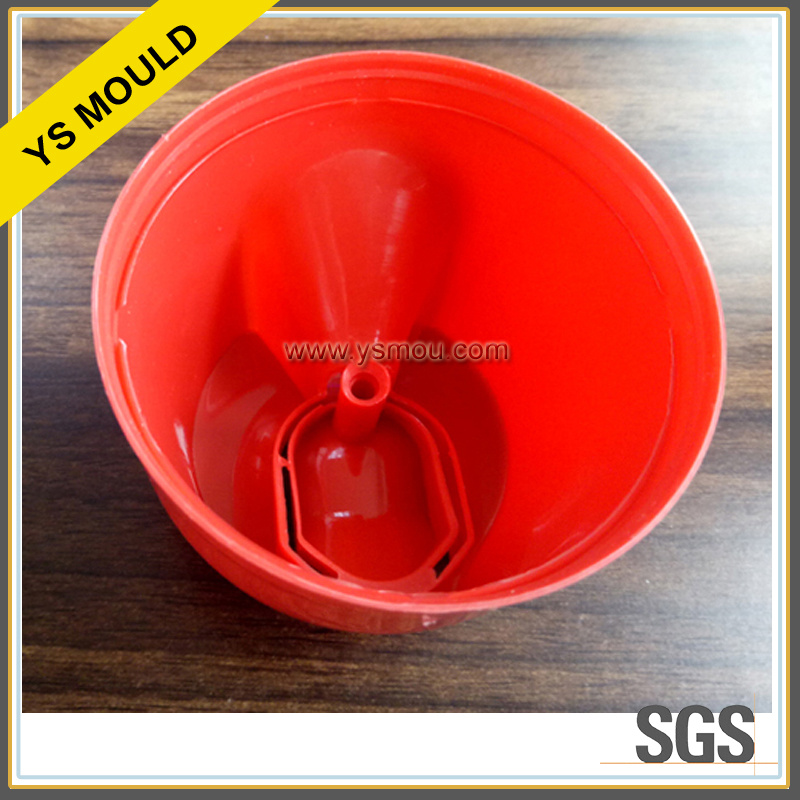

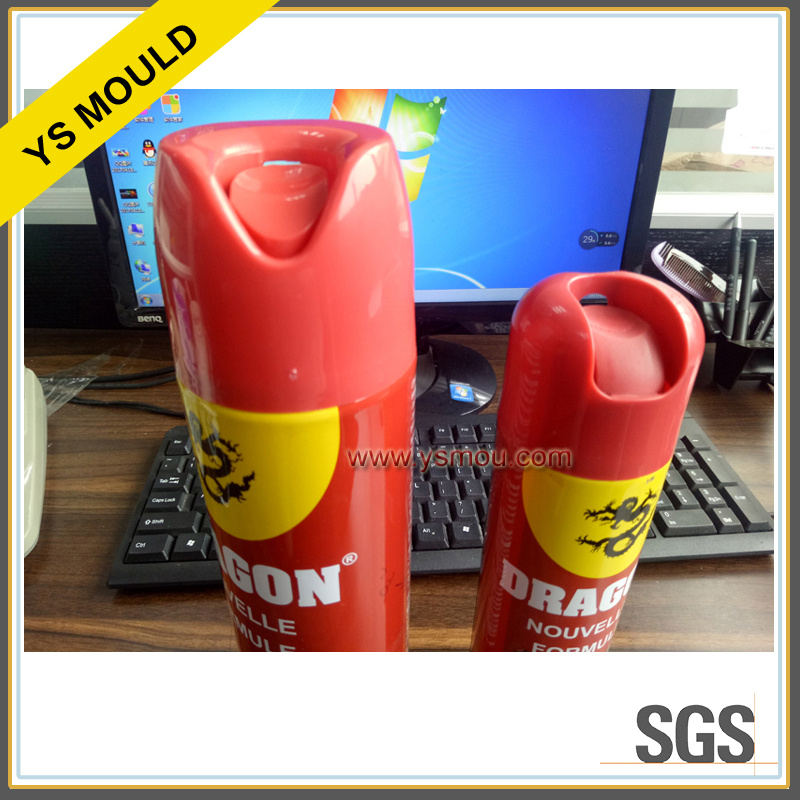

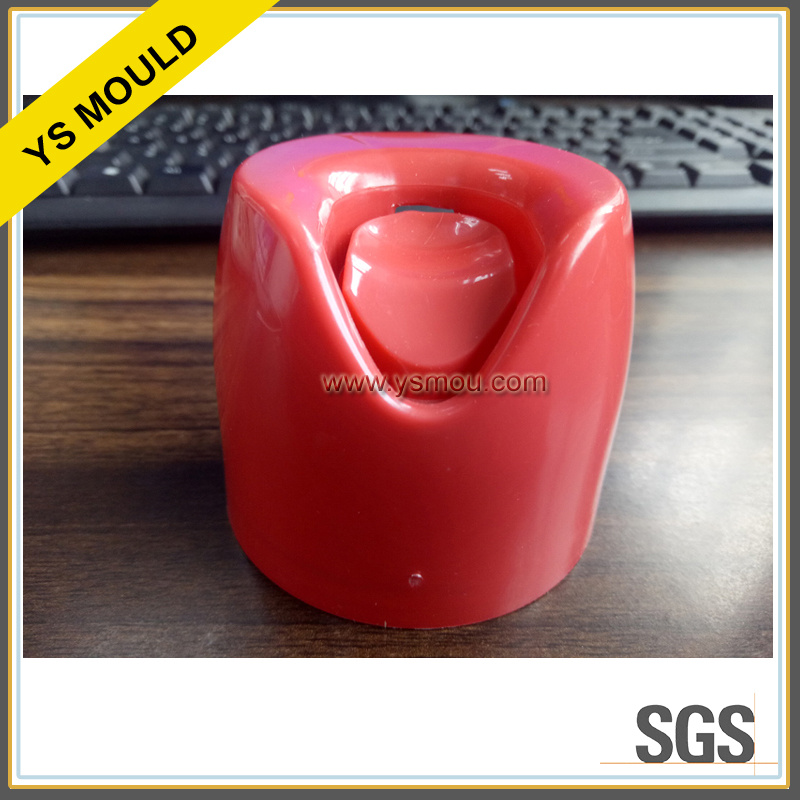

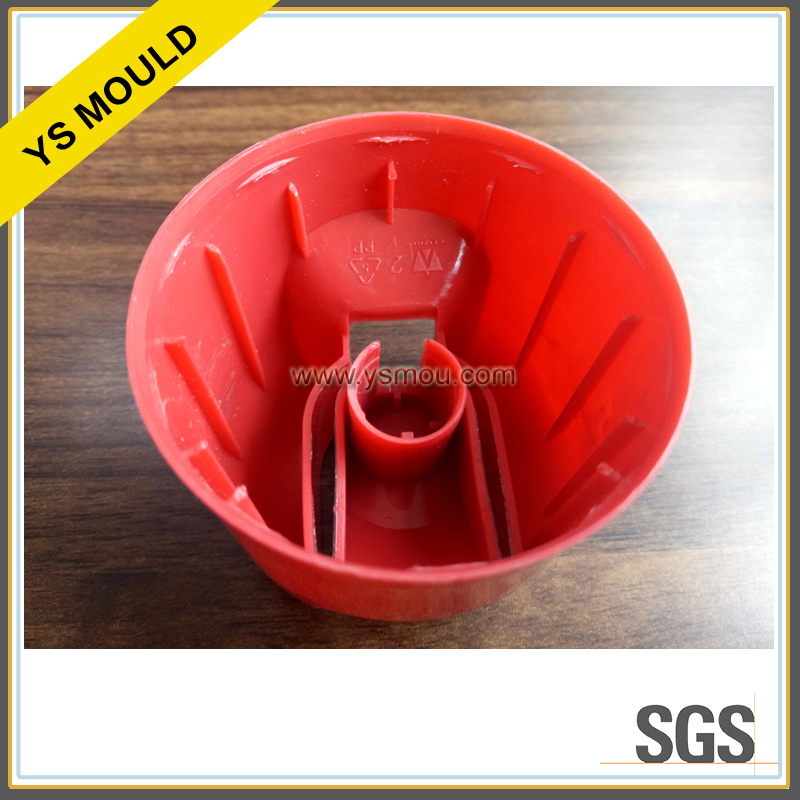

2.PICTURE:
3.MOULD DESCRIPTION:
1.Cavity:1-72
2.Mould base material :P20 , 45# , 4CR13 , .ECT
3.Core&Cavity material : S136,718, P20,2378,2316,4CR13,P20 .ECT4.Runner: Cold /Hot (LOCAL BRAND,HASCO,YUDO,HUSKY .ETC)
5.Life time:3,000,000 shots
6.Quick T1 time:25-40 days
7.Package:wooden case
4.MOULD MANUFACTURE PROCESS:Cap Mould : grinding→fly-cutter →CNC Milling→drilling→lathe→boring lathe→electric pulse →fine fly-cutter→polish→electroplate→install
Preform Mould: grinding→drilling→lathe→boring lathe→fine fly-cutter→polish→electroplate→install
Need vale ,itself-locking :new advanced needle vale gate system.each cavity is self-lock independently to ensure low decent ration of product.
The excellent hot runner design assures uniform heating and greatlyimproves the quality of plastic products
5.AFTER SALE SERVICE:
Any mould problem,we will provide free maintenance service
6. FLOW CHART| 1 | Sample or 2D,3D drawing from customer |
| 2 | Bulid 2D,3D drawing |
| 3 | CAD mould design |
| 4 | Send drawing to customer to confirm |
| 5 | Parts inspection/CNC machining/EDN machining |
| 6 | Mould assembly |
| 7 | Mould test |
| 8 | Send sample to confiom |
| 9 | Dilver the mould |
