| Prod Model: |
JZ-PP-001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
25mm |
| Sample: |
Free |
| Thickness: |
2mm |
| Shaping Mode: |
Injection Mould |
| Process Combination Type: |
Compound Die |
| Application: |
Household Appliances |
| Installation: |
Fixed |
Product Description

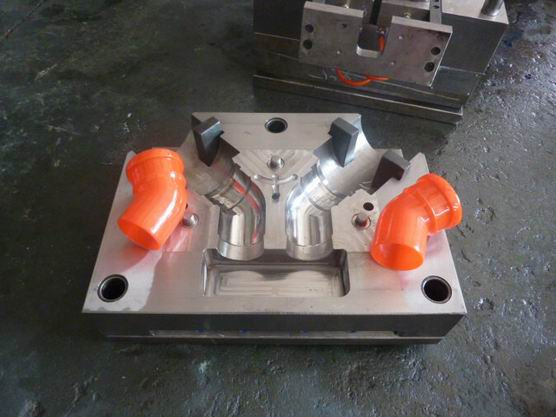

Plastic Injection Pipe Fitting Mold/Mouldcollapsible pipe fitting mould( 45D elbow-2 cavities)Jingzheng Mould own the patent design for collapsible core from 32mm to 400mm,with standard insert.
Final Wye samples with different size.

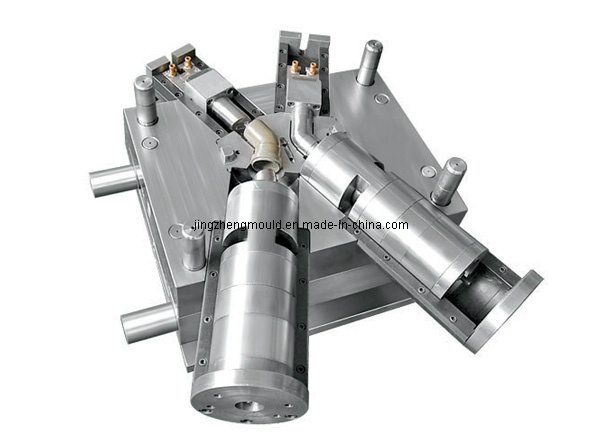

Finished mould ready to pack.

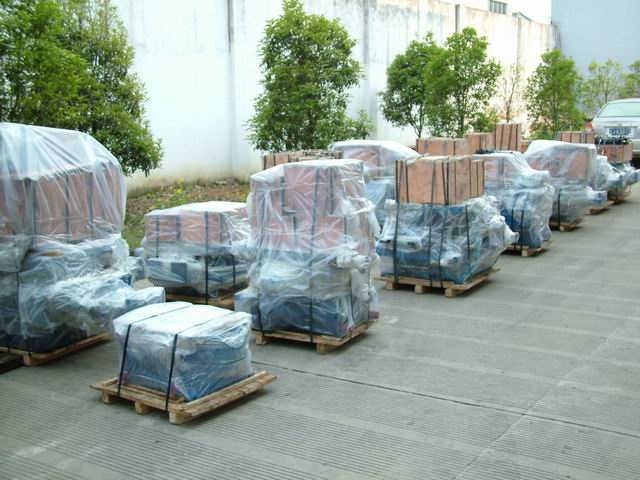

Finished packing for the moulds, ready to delivery.
| Name | collapsiblecore 50mm-45D elbow mould |
| Plastic material | PVC |
| Steel of Cavity & Core | DIN 1.2316 |
| Steel of Mouldbase | LkM |
| Nos of Cavity | 2 cavity |
| Hardness of Cavity & Core | 42-45HRC |
| Hardness of Wear Parts | 42-48HRC |
| Core pulling system | hydraulic cylinder |
| Mould Accessories | HASCO Standard |
| Cooling system | In core baffle cooling and in cavity plate chain drilling type cooling |
| Surface finish | Diamond polish, |
| Molding Life | 1,000, 000shots |
| Runner | Cold runner |
| Delivery time | 55 work days |
| Packing | wooden case |

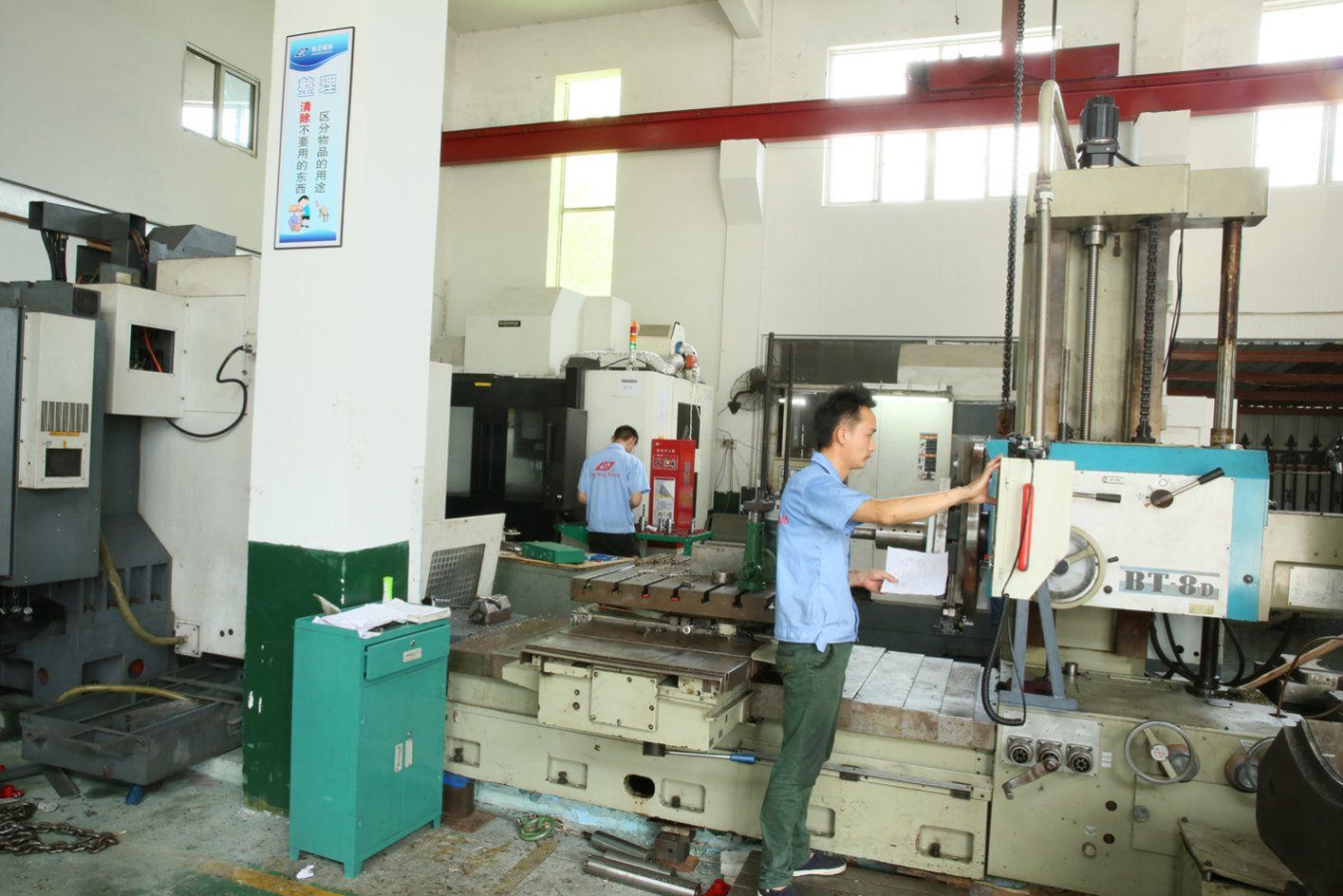

Huangyan Jingzheng mould factory was established in 1998, located in Taizhou, Zhejiang, China. We specialized in pipefitting mould. We have international advanced equipments, like CNC milling machine, NC wire cutting, NC-EDM, We have incorporated CAD/CAM/CAE into the manufacturing process.
With efficient mould designers, highly skilled technicians and trained quality control personnel, Jingzheng is able to provide mould with high quality.
We have experience to produce moulds as followings:
PVC/PP Collapsible Pipefitting Mould(We have patent for collapsible design)
PVC SWR Pipefitting Mould
PVC Pressure Pipefitting Mould(SCH40/SCH80/ASTM/DIN standard)
PVC Thread Pipefitting Mould (BS standard)
PVC Gutter Fitting Mould
PVC Instalating Electrical Drive Pipefitting Mould
PVC/PPR Ball Valve Mould
PPR Cool/Hot Water Feeding Pipefitting Mould
PP/PE Compression Fitting Mould
PP/PE Corrugated Pipefitting Mould
PE Electrofusion Fitting Mould
PPSU Pipefitting Mould
PSU Pipefitting Mould
POM Pipefitting Mould
ABS Pipefitting Mould
PP Flush Toilet Mould
Irrigation System Fitting Mould
As the global economy is developing and China joined WTO, Jingzheng not only make mould for famous companies inside China, but also exported to Middle East, South East Asia, Africa, etc.
With high quality steel, strict heat treatment, reliable mould layout and perfect handcraft, Jingzheng is able to provide efficient mould with high quality, with a lifetime more than 800, 000 shots. We are renowned for good quality, reasonable price and good after sales service. Good quality and Good service has always been our motto. Honesty comes first and customer is god has always been our pursuit and business philosophy. Innovation and Advancement has always been our guiding star in this changing world.
