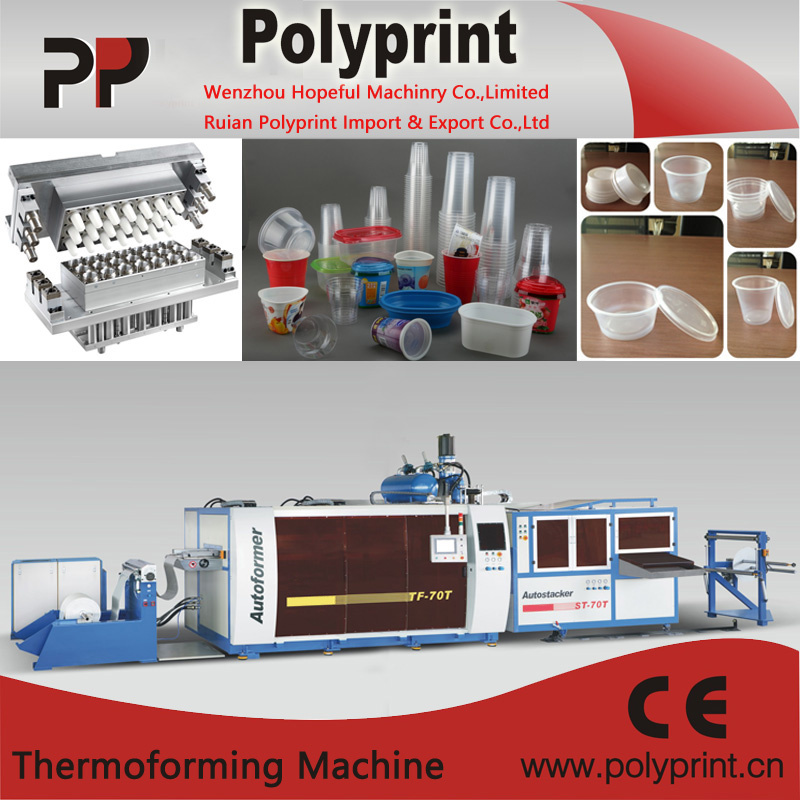

Plastic Thermoforming Machine Tilt Mould with Stacking
| Price: |
Negotiable/Set |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
PPTF-70T |
| 800cup Per Min: |
Low Consumption |
| 3-Row Mould: |
All Servo Motor |
| Automatic Counting: |
Automatic Stacking |
Product Description
Products Description:
It is suitable for PP, HIPS, PVC and PET sheet.

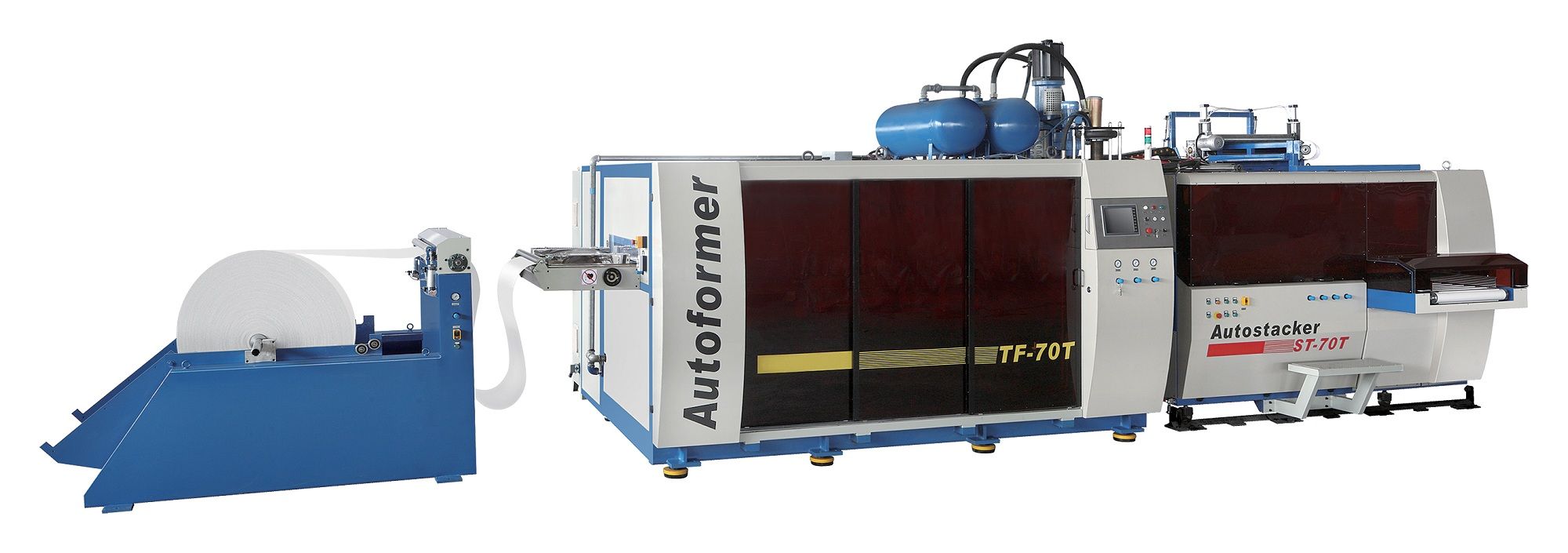

PPTF-70T Automatic Thermoforming Machine special designed for high quality cups. Servo motor for sheet feeding and plug system. The whole line controlled by PLC. It is operates man-interface, which can works all by itself. Feeding system droved by chain and it adopt cam forming and cutting method. This is an automatic and efficient plastic cup forming machine which include feeding, heating, pulling, forming, cutting and stacking.FEATURE:- Rapid mould changing device
- Buffer design is adopted for the width of chain holder thus eliminating chain binding condition resulting from insufficient heating of sheet.
- Up and down ceramic heater are adopted for heating with several sets of SSR and PID temperature control
- Automatic stacker system
- PLC and humanized color touch screen control operation interface.
- Mould automatic memory system.Technical Parameter:| 1 | Model | PPTF-70T | PPTF-70T-H | PPTH-80T |
| 2 | Max. Tool Size with Pneumatic Clamp Frame | 685X320mm | 685X320mm | 780X500mm |
| 3 | Max. Forming Depth | 130mm | 180mm | 200mm |
| 4 | Max. Sheet Width | 720mm | 735mm | 850mm |
| 5 | Sheet Thickness Range | 0.35-2.2mm | 0.35-2.5mm | 0.4-2.5mm |
| 6 | Clamping Force | 300KN | 350KN | 750KN |
| 7 | Max. Dry Speed | 45cycles/min | 45cycles/min | 40cycles/min |
| 8 | Upper/lower Heating Power | 70/60kw | 70/60kw | 80/70kw |
| 9 | Air Pressure | 7-8.5bar | 7-8.5bar | 7-8.5bar |
| 10 | Total Installed Power | 160kw | 160kw | 200kw |
| 11 | Machine Dimension | 12X4X3.5m | 12X4X3.5m | 13X4.5X3.8m |
| 12 | Machine Weight | 12000kg | 12000kg | 15000kg |
Our services:1. warranty:1year warranty after installation, if the spare parts is broken in the warranty period, we will send a free replacement parts as free.2. Installation and training: we can send 1-2 engineers to install and set up the machine, but all the charges should be paid by buyer.3. Quotation: valid for 60days.Packaging shipping:
Company information:Polyprint Machinery is one of the first company specialized in manufacturing extruder, thermoforming machine, plastic cup making machine, lid forming machine, cup lip curling machine, cup packing machine and cup printing machine since 2006.Contact information:Rae
+18957739675
Ruian Polyprint Machinery Co., Limited specializes in manufacturing plastic PP and PS extruder machine and thermoforming machine. Such as plastic sheet extrusion line, thermoforming machine, and on-line cup making machine, cup lid forming machine, cup lip curling machine, cup automatic packing machine with a batch of semi-senior and senior technical experts, our company has obtained ISO9001 quality system certificate which combined design, development, manufacture, installation and service in to system.
Our products are mainly exported to America, Europe, southeast Asia and southwest Africa. Most of our products are accepted and favored by our clients from all over the world. With the principle of scientific management, our company actively carries out ISO9001 quality management system and implements this standard strictly.
The slogan that best epitomizes our approach to quality is: Service must run ahead of time, the customer is our priority, take technology as our lead, and production must be carried out meticulously and with care. Based on these principles our company has been successfully improving the quality of its products, talking active measures and making reasonable use of its resources.
What we are now striving for is to transform our company into the No 1 packaging manufacturer by exploiting our qualities and promoting ourselves publicly, building ourselves a better profile within the industry. We are looking for serious partners to join us in fruitful commercial ventures. Contact us today to find out more.
