Plastic Wedge Type ADSS Cable Anchor Clamps

Plastic Wedge Type ADSS Cable Anchor Clamps
Price: US $ 0.5/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: ACADSS18
Cable Diameter: 14-18mm
Material: UV Protected Thermoplastic
Breaking Load: 5kn
Body / Wedges / Thimble: UV Protected Thermoplastic
Certification: ISO
Customized: Non-Customized
Condition: New
Feature: Fire/Flame Retardant
Type: Tension Clamp

Product Description

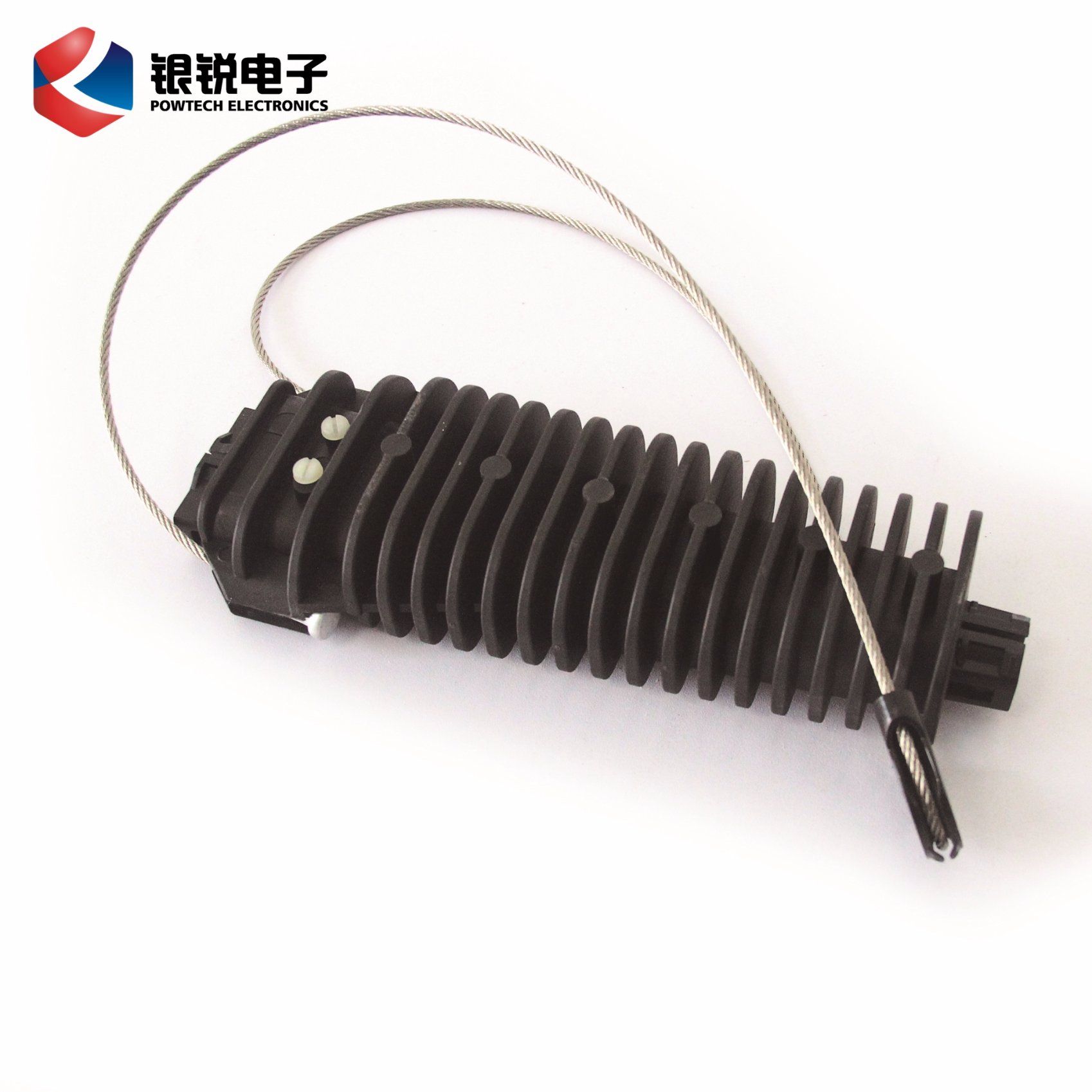

Plastic wedge type ADSS cable Anchor Clamps


These anchoring clamps are made of one opened conical fibre glass reinforced body, a pair of plastic wedges and a flexible bail. Different sizes offer a wide range of gripping capacities and mechanical resistances to fit the various ADSS cable designs.
The ADSS series of anchoring clamps allow an easy and quick securing of Ø 8 to 20 mm aerial circular fibre optic cables (ADSS) on short spans (up to 150 meters).

Main features:
1 the wire-clamps casing adopts special Alloy with properties of high-strength, anti-oxidization to be die-casting for forming.
2 Adopts advanced design idea and production technology that making casing, lead, U-shape screw, pressure-article compact and have good contact in addition to big gripping-power after being assembled.
3 The installation and use is simple, wire-clamps strength is high, without any magnetic hysteresis loss, the energy-conservation effect is well.

Material:
Body: UV Protected Thermoplastic
Bail: Stainless steel

Technical Characteristics:
ModelSuitable cable dia. (mm)MaterialsBreaking loadWeight
Body / Wedges / ThimbleBail
ACADSS128~12mmUV Protected ThermoplasticStainless Steel5000N0.4kg
ACADSS1410~14mm
ACADSS1612~16mm
ACADSS1814~18mm
ACADSS2016~20mm

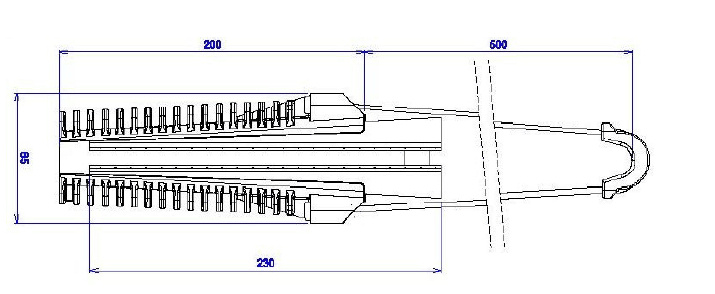

Drawing:


Production Process:



















Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.

The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.

As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.

Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.

Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
