Pn16 Rubber Expansion Joint Single Sphere Expansion Joint

Pn16 Rubber Expansion Joint Single Sphere Expansion Joint
Price: US $ 10-2000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union
Prod Model: BKREJ-01
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Most Competitive Rubber Expansion Joint: Competitive Price,Reliable Quality
Connection: Flange
Kind: Rotating Compensator
Type: Axial
Head Code: Round
Surface Treatment: Galvanized
Customized: Customized
Certification: ISO9001
Warranty: 18 Months
Application: Building
Material: EPDM+Nylon+Steel

Product Description



Product Description

Rubber Expansion Joint
 Serial No.   Portion               Material
      1 Main body    Neoprene, EPDM, NBR
      2   Lining         Nylon cord fabrics
      3   Frame          Hard steel wires
     4   Flange Carbon steel zinc coated/painted

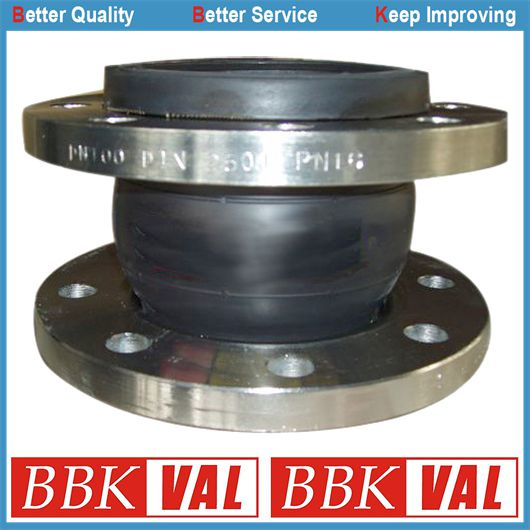

Flexible Single Sphere Rubber Expansion Joints with Flange
Technical Data
Working pressurePN10,PN16
Testing pressure1.5 Mpa,2.4Mpa
Vacuity650MMHG
Working temperature                                -20~+120C
Working mediumAir, compressed Air, water, sea water, oil, weak acid, alkali as different rubber EPDM, NBR or neoprene matching different medium
Flange drilling standard                           UNI, JIS, DIN , ANSI




 Size


 Inch

Axial movements
Transverse movement

 Angular deflection
         a1+a2

 ElongationCompression
DN321 1/4"69MM9MM15°
DN401 1/2"610MM9MM15°
DN502"710MM10MM15°
DN652 1/2"713MM11MM15°
DN803"815MM12MM15°
DN1004"1019MM13MM15°
DN1255"1219MM13MM15°
DN1506"1220MM14MM15°
DN2008"1625MM22MM15°
DN25010"1625MM22MM15°
DN30012"1625MM22MM15°
DN35014"1625MM22MM15°
DN40016"1625MM22MM15°
DN45018"1625MM22MM15°
DN50020"1625MM22MM15°
DN60024"1625MM22MM15°
DN70028"1625MM22MM15°
DN80032"1625MM22MM15°
DN90036"1625MM22MM15°
DN100040"1826MM24MM15°
 Bigger Size Upto DN2000 is avalible upon request.

  Shipping Terms:

1,Sample Avaliable,free of charge,however,courier cost will be at customer account.

2,Exworks,FOB,CIF Terms are all avalible.


Packaging & Delivery Time

Packaging Details:Seaworthy packing:
(1)Each Flexible Rubber Expansion Joint  is packed in a bag.
(2)Packing Case:1100X1100X1100
(3)One 20' container can load 20 standard cases above.
(4)Customers' logo is available on package .
Delivery Detail:10-45 days

BBK Valve is focus on industrial valves since 2002, specilized in design and manufacture of different valves fittings for water and waste water treatment projects.

BBK Valve, has it's own production factory and specilized sales/after sales office, just to offer stable products quality and specilized sales and after sales services to our valued customers.

BBK Valve, with total 13000 Sqm, and construction around 5000 Sqm. Has the Capability of manufacturing 10, 000PCS of different products, from size DN40-DN3000.

BBK Valve, is ISO9001 certified, CE PED Certified, and WRAS approved for our: Resilient Seated Gate Valves, All Kinds of Butterfly Valves, Dual Disc Check Valves, and YStrainers, from size DN50-600.

With the many years of stable quality, excellent sales services and competitive prices, we now have cooperate with many clients from Russia, Ukrain, United Kingdom, Italy, Spain, Romania, Mideast, South Amreican market.

BBK Valve is trying everyday to be the most reliable, responsible and competitive supplier in its industry.

We believe, with best services, reliable quality, competitive prices, instead of just a supplier, we will be your business partner from China.
