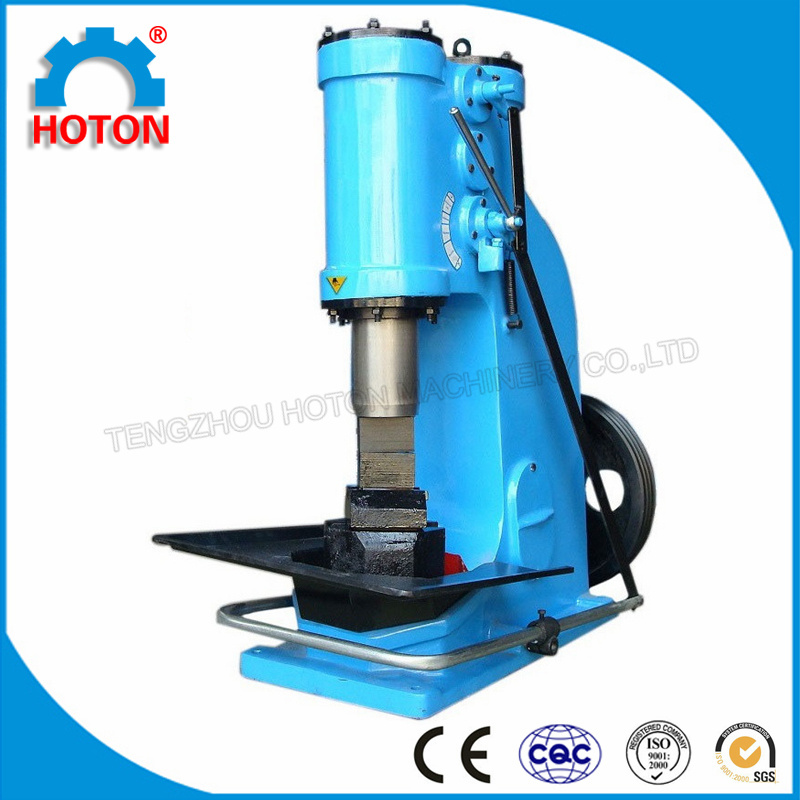

Pneuamtic Air Forging Hammer(C41-40 C41-55 C41-75 C41-150)

Name: Pneuamtic Air Forging Hammer(C41-40 C41-55 C41-75 C41-150)
Brand: tool-buy.com
SKU: 714901582
Availability: InStock
Rating: 4.6 (121 reviews)

Price:	US $ 1000-3000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Tengzhou Hoton Machinery Co., Ltd.

Showroom Product Company Profile

Prod Model:	C41-40 C41-55 C41-75 C41-150
Height Of Wokring Area:	245mm
Motor:	4KW
Weight:	1880kgs
Anvil Weight:	400kgs
Speed:	1440rpm
Processing Object:	Metal
Molding Style:	Forging
Surface Treatment:	Forging
Standard:	KJ

Product Description

AIR HAMMER PRODUCT FEATURES:
The air hammer is easy operation ,flexible movement and convenient to transit ,
installation ,maintenance ,the type is widely used for various of free forging works ,
such as drawing out ,upsetting ,punching ,chiseling .forging welding ,bending and twisting .
It is also used for open die forging in bolster dies.
it is suitable for free forging works of all kinds of different shape parts ,
especially suitable for village township enterprise and self-employed forge small agriculture tools .
For example sickle ,horseshoes ,Spike ,hoe etc .
At the same time ,the industrial enterprise use the air hammer to forge the steel ball ,
scaffold and many other factories and mines ,construction supplies .
In addition the series air hammer is very commonly professional blacksmith's iron tools
that can install all kinds of mould to forge a variety iron flowers ,birds and other beautiful decoration.
SPECIFICATIONS:

SPECIFICATION	UNIT	C41-40KG	C41-55KG	C41-75KG	C41-150KG
SPECIFICATION	UNIT	SEPARATE/SINGLE	SEPARATE	SEPARATE	SEPARATE
Max. hit force	kj	0.53	0.7	1	2.2
Height of working area	mm	245	265	300	370
Hit number	min -1	245	230	210	180
Dimension of top and bottom die surface(LxW)	mm	120*50	120*55	145*65	200*85
Max. square steel can be forged	mm	52*52	52*52	65*65	130*130
Max. Round steel can be forged(Diameter)	mm	68	68	85	145
Motor power	kw	4	5.5	7.5	15
Speeds of motor	r. p. m	1440	1440	1440	1470
Anvil weight	kg	400/0	600	850	1800
Total weight	kg	1350/880	1700	2800	5060
Overall dimensions(LWH)	mm	10806001430	13206701620	14007601950	20801240 2350
