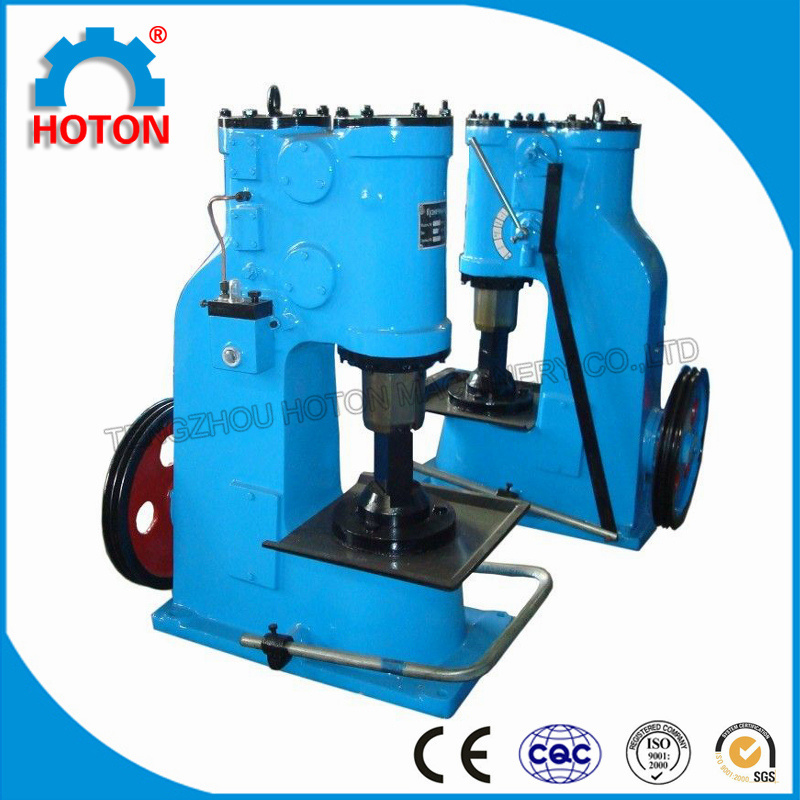

Pneumatic Forging Hammer (Air Hammer C41-16 C41-20)
Price: |
US $ 1000-2000/Piece |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
C41-16 C41-20 C41-25 |
Max. Hit Force: |
0.18kj |
Height Of Working Area: |
180mm |
Hit Frequency: |
258 |
Motor Power: |
1.5kw |
Total Weight: |
265kgs |
Processing Object: |
Metal |
Molding Style: |
Forging |
Surface Treatment: |
Forging |
Product Description
AIR HAMMER FEATURES:1. The air hammer is used for forging and shaping work pieces2.The air hammer is easy to operate through controlling the travel of top swage by a foot rest lever.3. It's models range from 16KG to 150KG4. It is widely used for general forging works, such as drawing out, upsetting,punching, chiseling, forging, welding, bending and twisting5.It is also used for forging in bolster dies.SPECIFICATIONS:DESCRIPTION | C41 SERIES |
Weight of falling parts | kg | 16 | 20 | 25 | 40 | 75 | 150 |
Maximum blow energy | J | 180 | 220 | 270 | 530 | 900 | 2200 |
Distance from center of die to frame | mm | 150 | 180 | 200 | 235 | 300 | 350 |
Distance between top and bottom die | mm | 180 | 200 | 240 | 245 | 300 | 370 |
Number of blows per minute | Per min | 258 | 270 | 250 | 245 | 210 | 180 |
Dimension of top to bottom | mm | 70*30 | 90*50 | 100*50 | 120*50 | 145*65 | 130*130 |
Diameter of the working cylinder | mm | 115 | 150 | 165 | 200 | 235 | 330 |
Diameter of the compressing cylinder | mm | 125 | 155 | 170 | 205 | 240 | 340 |
Travel distance of malleus | mm | 210 | 200 | 275 | 290 | 345 | 370 |
Travel distance of plunger | mm | 120 | 130 | 140 | 154 | 200 | |
Forges | Round | mm | ¢22 | ¢35 | ¢45 | ¢68 | ¢85 | ¢145 |
Square | mm | 20 | 30 | 40 | 52 | 65 | 130 |
Motor | Power | kw | 1.5 | 2.0 | 2.2 | 4.5 | 7 | 15 |
Rotate speed | rpm | 1440 | 1440 | 1440 | 1440 | 1440 | 1470 |
Outside Size | Length | mm | 584 | 670 | 800 | 1080 | 1600 | 2080 |
Width | mm | 390 | 360 | 410 | 600 | 950 | 1240 |
High | mm | 952 | 1050 | 1213 | 1389 | 1950 | 2350 |
Anvil block weight | kg | ----- | 190 | 247 | 400 | 850 | 1800 |
Hammer weight | kg | ~220 | ~500 | ~720 | ~1400 | ~2800 | ~5060 |
