| Prod Model: |
C41-40KG |
| C41-25/40/75/150kg: |
Air Hammer |
| Weight(Lower Part): |
25/40/75/150kg |
| Max.Striking Capacity: |
0.27/0.53/1/2.5kj |
| Stiking Frequency: |
250/245/210/180n/M |
| Power: |
3/4/7.5/15.8kw |
| Forging Forming Method: |
Mold Forging |
Product Description

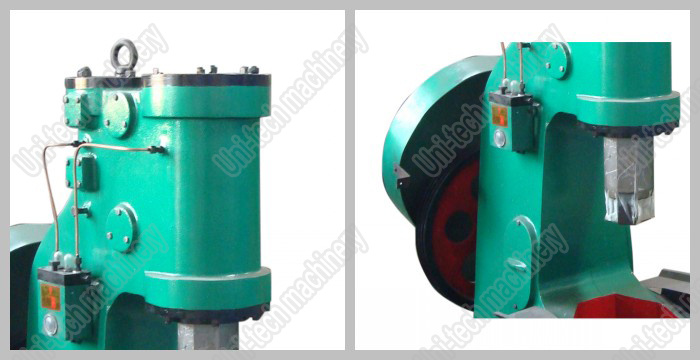

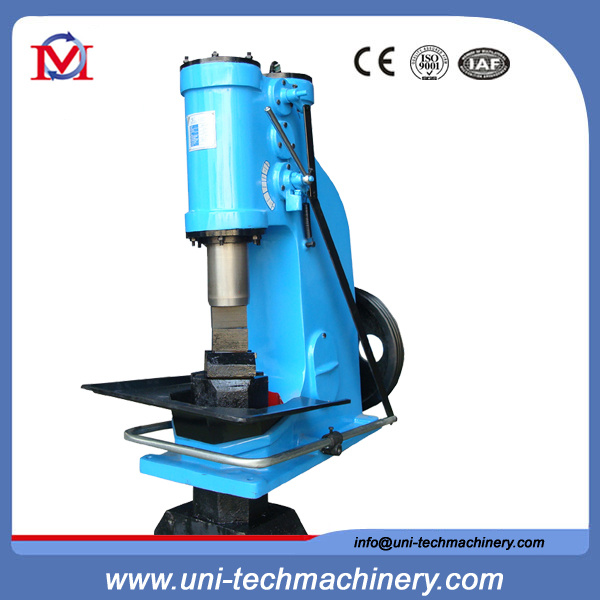

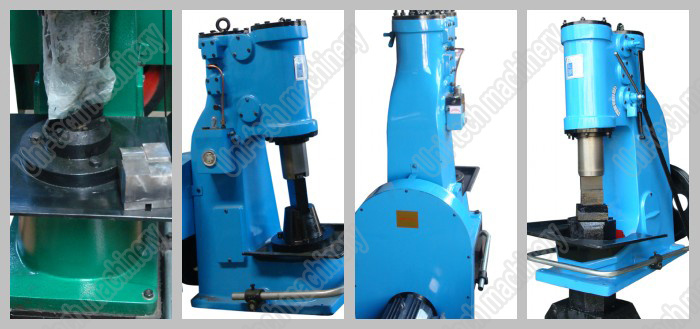

Pneumatic forging hammer (C41-40KG)Main features:1. It is used for forging and shaping work pieces
2. It is easy to operate through controlling the travel of top swage.
Features
1. The air hammer is used for forging and shaping work pieces
2. The air hammer is easy to operate through controlling the travel of top swage by a foot rest lever.
3. It's models range from 16KG to 150KG
4. It is widely used for general forging works, such as drawing out, upsetting, punching, chiseling, forging, welding, bending and twisting
5. It is also used for forging in bolster dies.
Main specifications:| Model | C41-16KG | C41-20KG | C41-25KG | C41-40KG | C41-75KG | C41-150KG |
| Beat weight(kg) | 16 | 20 | 25 | 40 | 75 | 150 |
| Beat capacity(kgf-m) | 180 | 220 | 270 | 530 | 900 | 1650 |
| Height of working(mm) | 180 | 200 | 240 | 245 | 300 | 370 |
| Beat times/minute | 258 | 270 | 250 | 245 | 210 | 180 |
| Length of rectangular(mm) | 20x20 | 30X30 | 40X40 | 52X52 | 65x65 | 130x130 |
| Length of circular(mm) | ¢20 | ¢35 | ¢45 | ¢68 | ¢85 | ¢145 |
| Power (kW) | 1.5 | 2.2 | 2.2 | 4.5 | 7 | 15 |
| Speed of motor (rpm) | 1440 | 1440 | 1440 | 1440 | 1440 | 1470 |
| Weight of anvil block(kg) | - | 200 | 250 | 400 | 850 | 1800 |
| Packing Size(cm) | 58.5x39x95 | 67X37X105 | 80X41X121 | 108X60X139 | 160x95x195 | 208x124x235 |
| N.W./G.W.(kg) | 240/265 | 500/560 | 760/860 | 1350/1450 | 2800/2900 | 5060/5260 |
Contact person:AnnaWang
Tengzhou Uni-tech Co. Ltd.
Tel: 0086-632-5810219 Fax: 0086-632-5810216
Phone/: 0086-15163279908
Website: http://www.uni-techmachinery.com/Our Services1. Your inquiry and email will be replied within 24hours.
2. If you need to develop products with your own specification, we can help you to work it out.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service!
FAQ1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2. Delivery Time:
one week
3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS
